Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components

China Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components supplier
Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components supplier Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components supplier Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components supplier Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components supplier

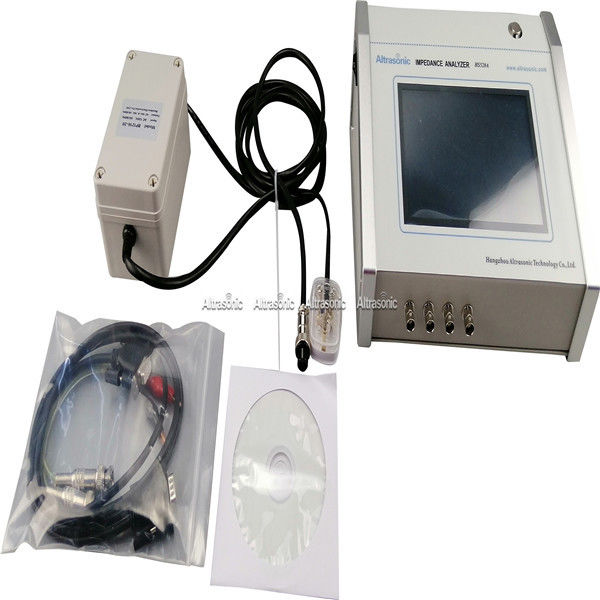

Large Image :  Precision Measuring Instruments Ultrasonic Impedance Analyzer For Ultrasonic Components

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Generator: Digital Frequency Range: 1KHz~500MHz/1Mhz/3Mhz
Measurement Speed: 5s/one Pass(600scan Point) Adjustable Frequency Accuracy: ±10ppm
Phase Resolution: 0.15 Degree Impedance Range: 1Ω~1MΩ
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Components/ultrasonic Device



1Khz-3Mhz Ultrasonic Impedance Analyzer For Ultrasonic Components Precision Measuring Instruments

Specification:



Specification

Performance

HS520A

Product feature

Portable, 8inch screen, Full touch screen

Dimension

L24cm,W19cm,H10cm

Frequency range

1KHz~500MHz/1Mhz/3Mhz

Measurement Index

All the parameters, the graph

Measurement Accuracy

< 0.5%

Measurement Speed

5s/one pass(600scan point) Adjustable

Frequency Accuracy

±10ppm

Phase Resolution

0.15 degree

Environment Temperature

10~40degree centigrade

Impedance Range

1Ω~1MΩ

Frequency Step

0.1Hz~any

Power Supply

AC100V~AC250V,50~60Hz, 30W

Application

Ultrasonic device







Description:



The HS-520A impedance analyzer can measure and evaluate the parameters and performance of various devices and devices such as piezoelectric ceramic sheets, piezoelectric transducers, and buzzers. Judging by the impedance-phase-frequency curve and the admittance circle, it is clear at a glance.



The impedance-phase-frequency curve and admittance circle of a normal product are shown in the following figure:

blob

But not all of the device's graphics are as shown above. Here are the graphics for several problematic devices:



blobblobblob



Scope of application:



All ultrasonic equipment that uses ultrasound

Electrical equipment, electronic components, etc.



Advantage:



● Easy to use, accurate and inexpensive, measurement accurace is extremely high

● Judging product defects by admittance circle and logarithmic curve at a glance

● Test data can be stored and printed on the computer, and the data can be traced back to the source.

● Printable impedance scan curve graphics for easy sample analysis and archiving

● One-click start test function, easy to operate, high production efficiency
