CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device

China CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device supplier
CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device supplier CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device supplier CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device supplier

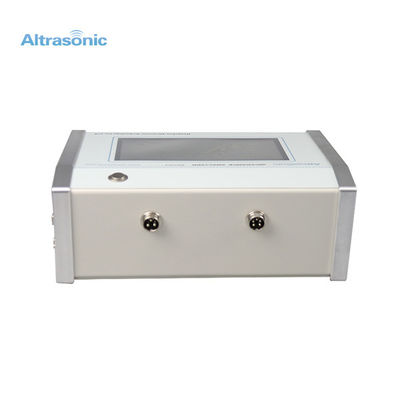

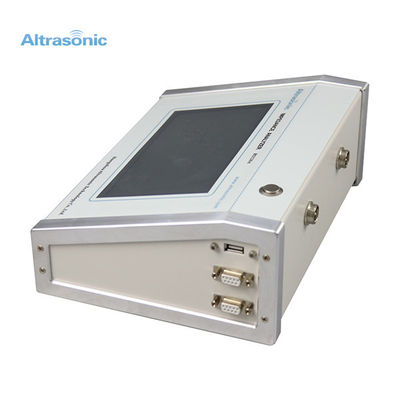

Large Image :  CE Table Type Longlife Impedance Analyzer Instrument For Ultrasonic Device

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton,PE foam inside
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Frequency Range: 1KHz~1MHz Measurement Index: All The Parameters, The Graph
Measurement Accuracy: < 0.5% Measurement Speed: 5s/one Pass (600scan Point)
Phase Resolution: 0.15 Degree Frequency Step: 0.1Hz~any
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Device



Cheap and Sample Piezoelectric Transducers Testing Instrument



Description :

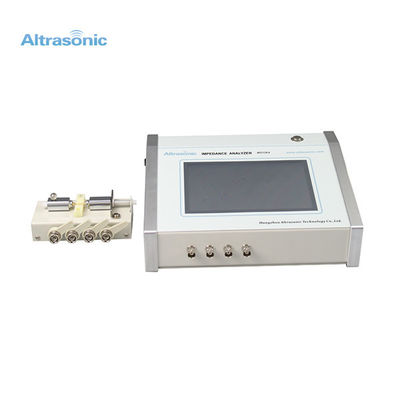

The HS-520A impedance analyzer can measure and evaluate the parameters and performance of various devices and devices such as piezoelectric ceramic sheets, piezoelectric transducers, and buzzers. Judging by the impedance-phase-frequency curve and the admittance circle, it is clear at a glance.

The impedance-phase-frequency curve and admittance circle of a normal product are shown in the following figure:



blob



But not all of the device's graphics are as shown above. Here are the graphics for several problematic devices:



blobblobblob



Specification:



Impedance Analyzer HS520A Newest
Frequency Range 1KHz~500KHz/1Mhz/3Mhz/5Mhz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification

piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

ultrasonic weld, ultrasonic clean, ultrasonic sensor

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Application :



* Operation

* Sonotrode tuning

* Test of transducers

* Test of acoustic sets

* Test of piezo ceramics

* Predictive maintenance
