Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine

China Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine supplier
Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine supplier Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine supplier Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine supplier

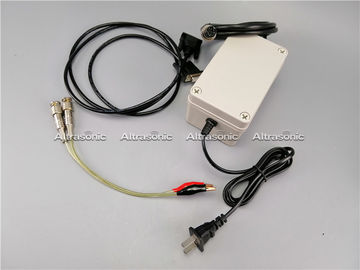

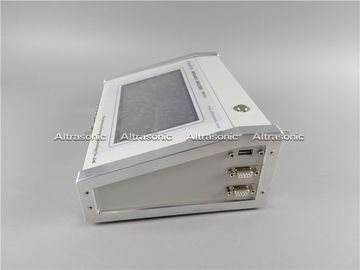

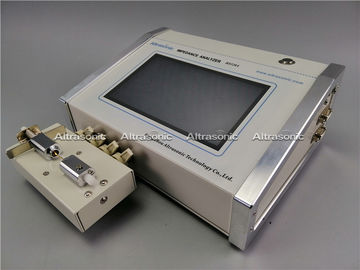

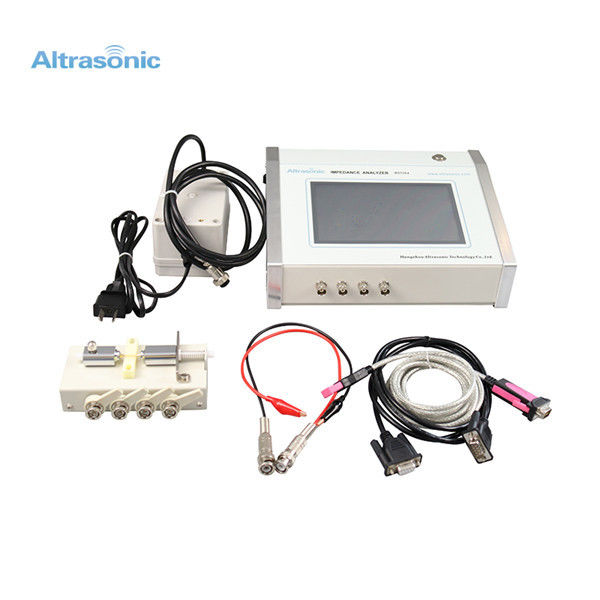

Large Image :  Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton,PE foam inside
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Frequency Range: 1KHz~1MHz Measurement Index: All The Parameters, The Graph
Measurement Accuracy: < 0.5% Measurement Speed: 5s/one Pass (600scan Point)
Phase Resolution: 0.15 Degree Frequency Step: 0.1Hz~any
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Device



Cheap and Sample Piezoelectric Transducers Testing Instrument



Description:



The Ultrasonic Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. It is for these elements as an oscilloscope is for the electronics.

With the analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.The Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more



Advantages and benefits:



• Practicality and ease of use. No need for ultrasonic expertise.

• Allows the quality control of ultrasonic transducers reducing technical assistance.

• Makes fast and accurate manufacturing of sonotrodes possible.

• Affordable cost.

• Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.



Specification:



Impedance Analyzer HS520A Newest
Frequency Range 1KHz~500KHz/1Mhz/3Mhz/5Mhz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification

piezoelectric ceramic, ultrasonic transducer, power ultrasonic,

ultrasonic weld, ultrasonic clean, ultrasonic sensor

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Application :



* Operation

* Sonotrode tuning

* Test of transducers

* Test of acoustic sets

* Test of piezo ceramics

* Predictive maintenance



Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine

Piezoelectric Transducers Ultrasonic Testing Instrument , Ultrasonic Testing Machine
