Product Details:
|
| Frequency Range: | 1KHz～500KHz | Measurement Index: | All The Parameters, The Graph |
|---|---|---|---|
| Measurement Accuracy: | < 0.5% | Measurement Speed: | 5s/one Pass （600scan Point） |
| Phase Resolution: | 0.15 Degree | Frequency Step: | 0.1Hz～any |
| Power Supply: | AC100V～AC250V，50～60Hz, 30W | Application: | Ultrasonic Device |
| High Light: | measurement instruments,analyzer instrument |
||
Large Touch Screen Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics
Description:

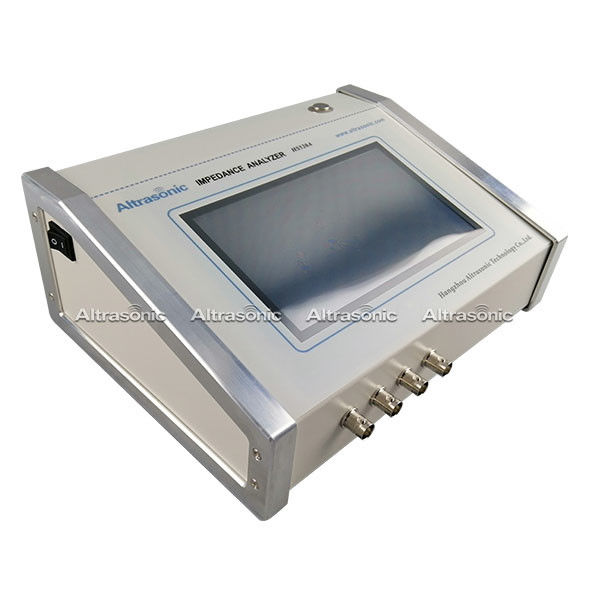

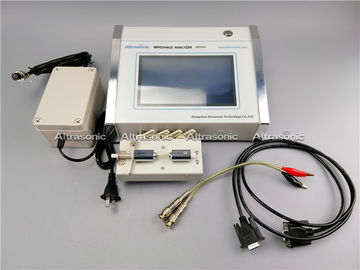

The Ultrasonic Impedance Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. It is for these elements as an oscilloscope is for the electronics.
With the analyzer, the transducers and sonotrodes become just as measurable and adjustable as any other device.The Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more
Advantages and benefits:
• Practicality and ease of use. No need for ultrasonic expertise.
• Allows the quality control of ultrasonic transducers reducing technical assistance.
• Makes fast and accurate manufacturing of sonotrodes possible.
• Affordable cost.
• Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance.
Specification:
Impedance Analyzer HS520A Newest
Frequency Range 1KHz～500KHz/1Mhz/3Mhz/5Mhz
Basic Accuracy < 0.5%
Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy ±10 ppm
Phase Accuracy 0.15 degree
Temperature Range 10～40 degree Celsius
Impedance Range 0.1Ω～1MΩ
Frequency Step 0.1Hz to Any
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F
Amplification
piezoelectric ceramic, ultrasonic transducer, power ultrasonic,
ultrasonic weld, ultrasonic clean, ultrasonic sensor
Dimensions : 240mm*190mm*100mm
Size of LCD Screen: 8-inch screen
Application :
* Operation
* Sonotrode tuning
* Test of transducers
* Test of acoustic sets
* Test of piezo ceramics
* Predictive maintenance
