|Frequency Range:||1Khz-3Mhz||Measurement Index:||All The Parameters, The Graph|
|Measurement Accuracy:||< 0.5%||Measurement Speed:||5s/one Pass （600scan Point）|
|Phase Resolution:||0.15 Degree||Frequency Step:||0.1Hz～any|
|Power Supply:||AC100V～AC250V，50～60Hz, 30W||Application:||Ultrasonic Device|

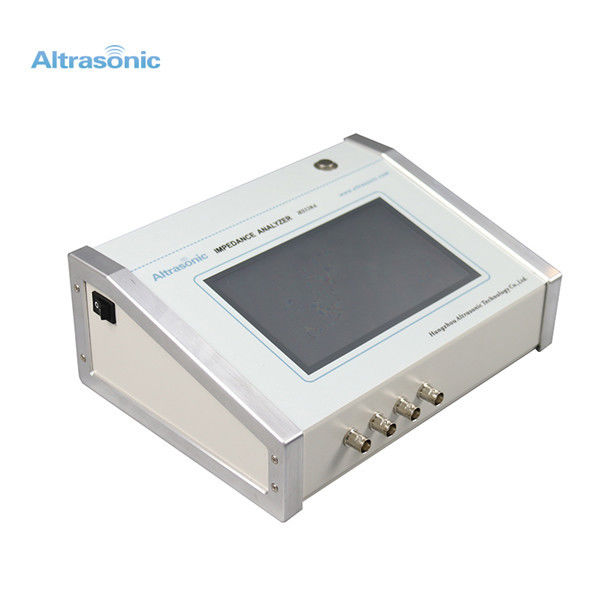

1Khz - 3Mhz Impedance Analyzer Measuring Instrument Easy Operation For Ultrasonic Horn
For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.
Detailed Product Description:
|Part Name:||Horn Analyzer||Frequency Range:||1Khz-3Mhz|
|Basic Accuracy||<0.5%||Scan Speed||5 sec/one pass (equivalent to 600 scan dots)|
|Frequency Accuracy:||±10 ppm||Amplification:||Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic|
|Phase Accuracy||0.15 degree||Temperature Range||10～40 degree Celsius|
|Impedance Range||0.1Ω～1MΩ||Frequency Step||0.1Hz to Any|
|Speed Of Measuring:||5s / One Pass(600san point)||Power Supply||AC100V~AC250V,50~60Hz,30W|
Rich data preservation and image preservation functions
1.New parameter results are used to create a new EXCEL file to save the test parameters such as resonant frequency, antiresonant frequency, and resonance impedance.
The result of the open parameter is used to open and view the saved EXCEL document.
3. Save sweep frequency data is used to save the r-x values measured during scanning
4. Save the scan graph used to save the scan graph
5. Save setting condition is used to save the scanning measurement condition set this time, which can be called directly next time.
6.Load setting conditions are used to invoke previously used measurement files based on file names.
