High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer

China High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer supplier
High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer supplier High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer supplier High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer supplier

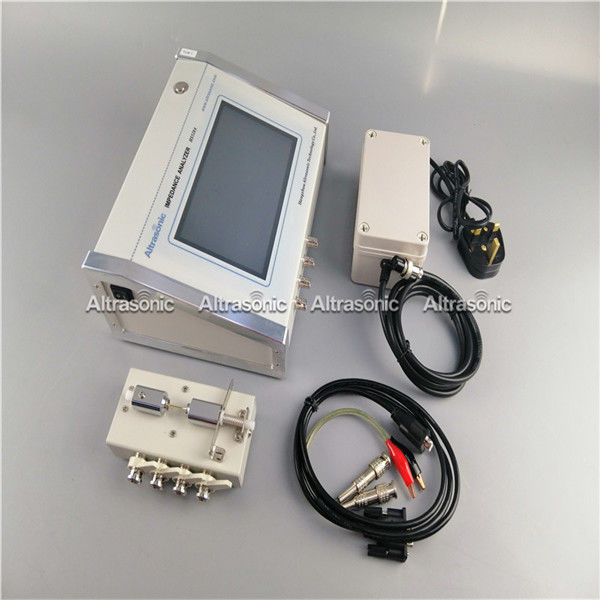

Large Image :  High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: Hs520A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton,PE foam inside
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Frequency Range: 1KHz~1MHz Measurement Index: All The Parameters, The Graph
Measurement Accuracy: < 0.5% Measurement Speed: 5s/one Pass (600scan Point)
Phase Resolution: 0.15 Degree Frequency Step: 0.1Hz~any
Power Supply: AC100V~AC250V,50~60Hz, 30W Application: Ultrasonic Device



Precise Horn Analyzer 1KHz~1Mhz for Measuring for Ultrasonic Transducer





Introduction:



Horn analyzer is the instrument applicable for measuring impedance-vs.-frequency and phase-vs.-frequency characteristics of complex impedance electrical components, as for instance: ultrasonic devices, piezoelectric ceramics and piezoelectric transducers for ultrasonic cleaners and ultrasonic plastic welders, underwater acoustic transducers, sensors, magnetostrictive transducers, and for many other industrial and medical applications.





Parameters description:



Impedance Analyzer HS520A Newest
Measure Items Resonance Frequency: Fs
Half Power Frequency: F1 and F2
Maximum real admittance at Fs: Gmax
Dynamic Resistance: R1
Anti resonance frequency: Fp
Mechanical quality factor: Qm
Free capacitance: CT
Dynamic inductance: L1
Dynamic capacitance: C1
Static capacitance: Co
electromechanical coupling coefficient: Keff and Kp
Maximum real impedance at Fp: Zmax
Measure Diagram G,B-F
G-B (admittance circle coordinate)
R,X-F
R-X (impedance circle coordinate)
Z,phase-F
Y,phase-F
Z(Logarithm),phase-F

Dimensions : 240mm*190mm*100mm

Size of LCD Screen: 8-inch screen





Performance features:



Horn analyzer is the instrument essential in every production of ultrasonic equipment for components measurements and qualification and for resonant frequencies measurements.

This instrument can measure admittance characteristic curve of piezoelectricity element (the admittance is equal to reciprocal of impedance) and analyze and extractthe above needed parameters. With this instrument, you can gain four characteristic curves of piezoelectricity element (admittance characteristic graph, impedancecharacteristic graph, admittance coordinate graph, impedance coordinate graph).
Moreover, it is easy to save and print the measured result.





Features:



1. Best finish

2.Precise

3.Exceptional standards

4.Exclusive

5.Perfect

6.Sturdy

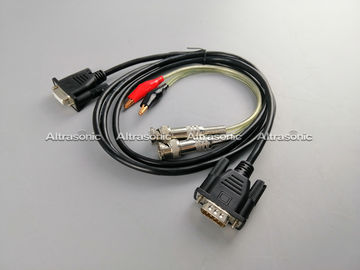

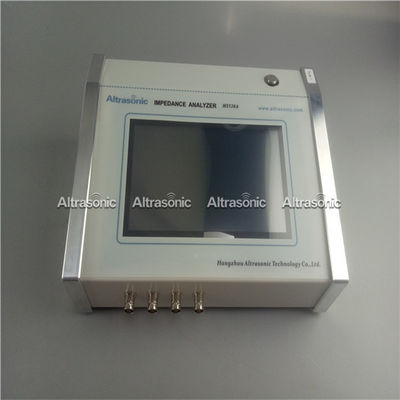

High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer

High Precise Horn Analyzer Measuring Instrument 1KHz - 1Mhz for Ultrasonic Transducer
