HS520A 1Khz - 500Khz Measurement Instruments Horn Analyzer For Testing Parameters

China HS520A 1Khz - 500Khz Measurement Instruments Horn Analyzer For Testing Parameters supplier
HS520A 1Khz - 500Khz Measurement Instruments Horn Analyzer For Testing Parameters supplier HS520A 1Khz - 500Khz Measurement Instruments Horn Analyzer For Testing Parameters supplier HS520A 1Khz - 500Khz Measurement Instruments Horn Analyzer For Testing Parameters supplier

Large Image :  HS520A 1Khz - 500Khz Measurement Instruments Horn Analyzer For Testing Parameters

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Packed in carton,PE foam inside
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Part Name: Horn Analyzer Frequency Range: 1KHz~500KHz
Basic Accuracy: < 1% Scan Speed: 5 Seconds For Each Piece (equivalent To 600 Scan Dots)
Phase Accuracy: 0.15 Degree Temperature Range: 10~40 Degree Celsius
Impedance Range: 0.1Ω~1MΩ Frequency Step: 0.1Hz To Any
Frequency Accuracy: ±10 Ppm Net Weight:: 3.7kg
Dimensions:: 35*20*15mm

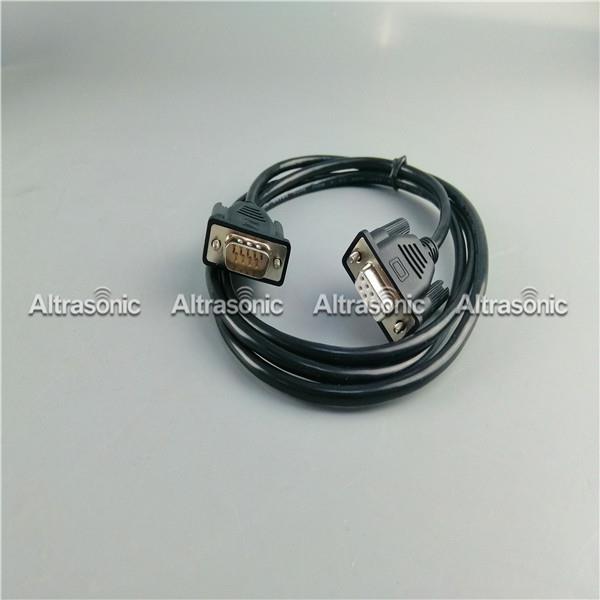

HS520A 1Khz-500Khz Horn Analyzer For Testing Parameters


Introduction:

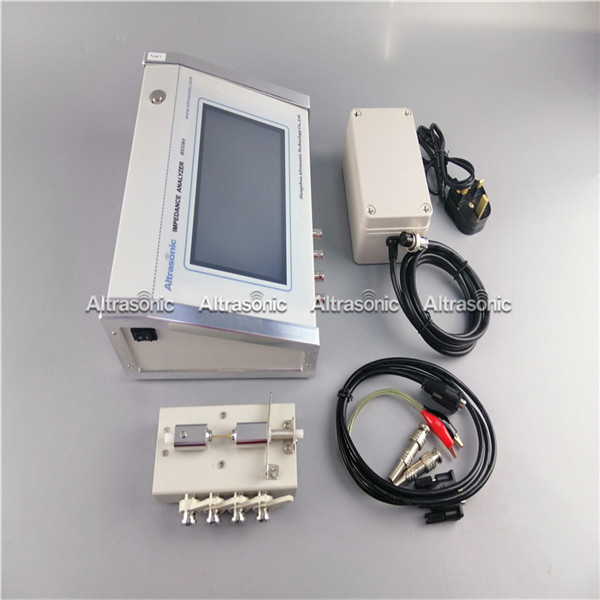

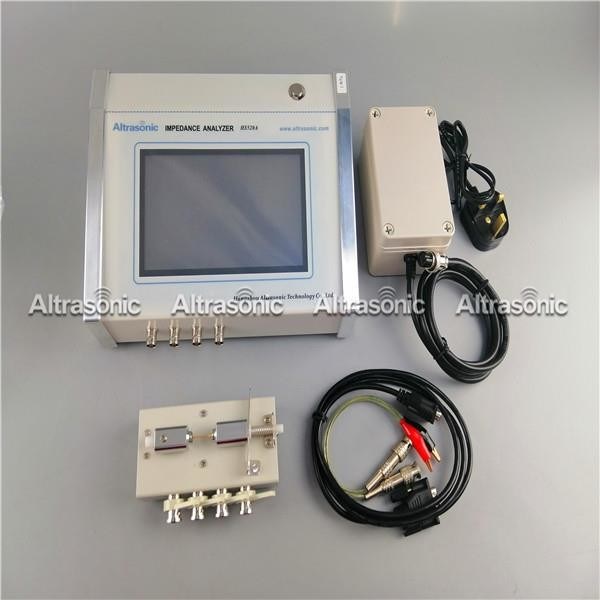

Horn Analyzer is a dedicated test instrument for quality control of maintenance, manufacturing and power ultrasonic transducers, converters, boosters, horns and acoustic stacks. It determines the frequency, impedance and mechanical quality factor of the device under test. It has a software that makes the adjustment process easier, applies acceptance criteria, generates test reports and saves/compares results.


Specification:


Part Name: Horn Analyzer Frequency Range: 1KHz~500KHz
Basic Accuracy <0.5% Scan Speed 5 sec/one pass (equivalent to 600 scan dots)
Frequency Accuracy: ±10 ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Phase Accuracy 0.15 degree Temperature Range 10~40 degree Celsius
Impedance Range 0.1Ω~1MΩ Frequency Step 0.1Hz to Any
Speed Of Measuring: 5s / One Pass(600san point) Power Supply AC100V~AC250V,50~60Hz,30W
Net Weight: 3.5kg Dimensions: 240*190*100mm



Advantage:
1.Precise engineered
2.Easy to operate
3.Enhanced durability
4.Accurate analyzation
5.Application specific construction


Detailed Technology Items:


Horn Analyzer HS520A Newest
Measure Items Resonance Frequency: Fs
  Half Power Frequency: F1 and F2
  Maximum real admittance at Fs: Gmax
  Dynamic Resistance: R1
  Anti resonance frequency: Fp
  Mechanical quality factor: Qm
  Free capacitance: CT
  Dynamic inductance: L1
  Dynamic capacitance: C1
  Static capacitance: Co
  electromechanical coupling coefficient: Keff and Kp
  Maximum real impedance at Fp: Zmax

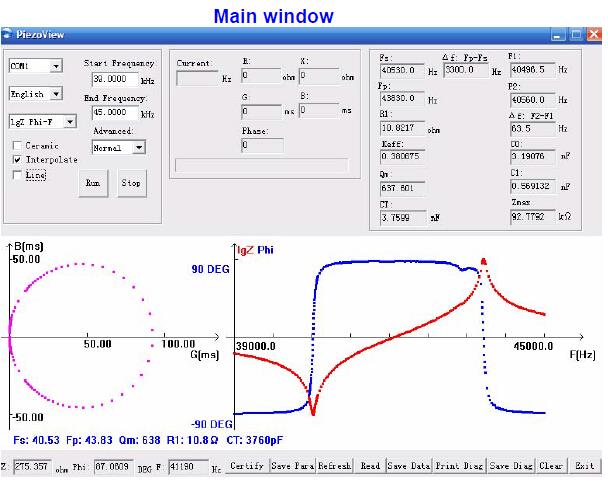

Measure Diagram G,B-F
  G-B (admittance circle coordinate)
  R,X-F
  R-X (impedance circle coordinate)
  Z,phase-F
  Y,phase-F
  Z(Logarithm),phase-F

Dimensions : 240mm*190mm*100mm
Size of LCD Screen: 8-inch screen




Our Service:
1.Have a comprehensive after-sales service, warranty for 1 year.
2.Our technical team also has the experience of designing and producing high quality ultrasonic parts and equipment.
