|Function:||Check The Frequency And Impendance||Size:||24 X 19 X 10 Cm|
|Voltage:||100-250VAC||Working Temperature:||10-40 C|

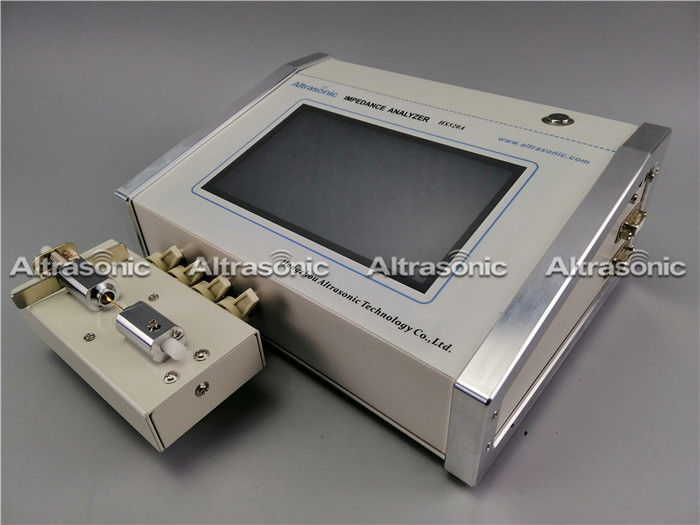

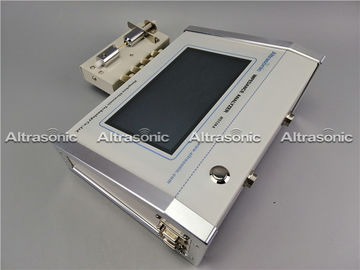

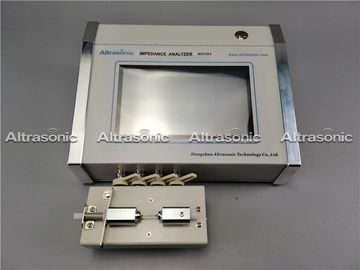

8 Inch Full Touch Screen Measuring Instrument For Ultrasonic Transducers and Horn in Frequency Range 0-3Mhz
|Product feature||Portable, 8inch screen, Full touch screen|
|Measurement Index||All the parameters, the graph|
|Measurement Accuracy||< 0.5%|
|Measurement Speed||5s/one pass(600scan point) Adjustable|
|Phase Resolution||0.15 degree|
|Environment Temperature||10～40degree centigrade|
|Power Supply||AC100V～AC250V,50～60Hz, 30W|
The TRZ Horn Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more.
Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.
1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.
3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.
4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.
5．HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)
6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.
