High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin

China High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin supplier
High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin supplier High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin supplier

Large Image :  High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 - 15 Working days
Payment Terms: Western Union, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Frequency: 20kHz Power: 2000W
Voltage: 110VAC Or 220-240VAC E Of Welding Time: 0.05-10/sec
Weight: 100 KGs Dimension Of Press: 476(L)*736(W)*1524(H) Mm



High speed and clean welding with ultrasonic - for thermoplastic resin







Description:



The HSW20P series of ultrasonic welder offer a compact design to conserve work space, and it’s easy for operation and maintenance to achieve an outstanding cost-performance. There are two welding modes of operation to choose from: time mode and energy mode.



Time mode: This mode has three control parameters, namely delay time, welding time and holding time. The processing parameters are adjusted according to the characteristics of the processed sample.



Energy Mode: This mode has several parameters that can be set, including delay time, energy setting, dwell time, metering threshold, and power delay time. It can be set based on the energy that the product needs to be welded.







Technical Specification:



Item No HSW20P
Frequency 20Khz
Output 2000W
Voltage 200-240V,AC
50-60hz, Single phase
Electric Current 15A
Range of Welding Time 0.05-10/sec
Working voltage 0.2-0.7MPA
Environment Temperature 5-50℃
Pneumatic Requirement Clean, dry air at 100pis
Maximum Pressure 1.96KN
Maximum Stroke 75MM
Cycle Rate 80/Min
Weight 100Kgs
Dimension(mm) 476(L)*736(W)*1524(H)







Features:



- Stable ultrasonic oscillation by automatic frequency tracking while maintaining constant amplitude



- Structures with high rigidity ensure stable welding even at high pressures.



- It is possible to correspond to work of various sizes by the head adjustment mechanism.



- 100 kinds of condition settings can be saved



- Various data output via USB interface



- Weld control (mode selection type)

  • Time control: Set welding time.
  • Energy control: The welding that reaches the set welding energy is terminated.
  • Distance control: When reaching the set position (absolute value or relative value), welding is terminated.







Application:



It can be applied to all industrial applications such as welding, cutting, caulking, stamping, embossing of thermoplastic resin.



Automotive industry: Car light, automotive interior parts etc.

Toy industry: Such as toy gun, water gun, telephone and rag baby etc.
Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.
Packing industry: Disguise box, PVC packing box, toothpaste tube etc.

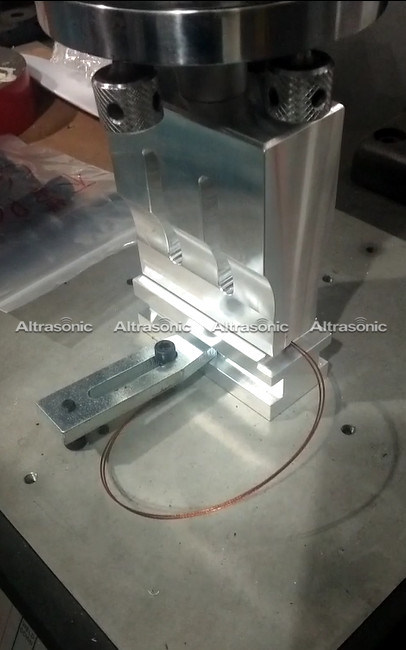

High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin








CE Certification:
High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing





High Speed Clean Ultrasonic Welding Equipment For Thermoplastic Resin
