Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn

China Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn supplier
Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn supplier Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn supplier Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn supplier

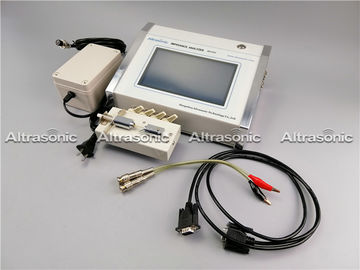

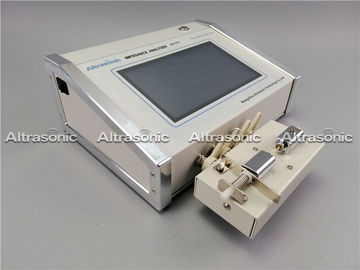

Large Image :  Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Delivery Time: 15 working days after receipt full payment
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Generator: Digital Frequency Range: 1KHz~500MHz/1Mhz/3Mhz
Measurement Index: All The Parameters, The Graph Measurement Accuracy: < 0.5%
Measurement Speed: 5s/one Pass(600scan Point) Adjustable Frequency Accuracy: ±10ppm
Phase Resolution: 0.15 Degree Impedance Range: 1Ω~1MΩ
Frequency Step: 0.1Hz~any Power Supply: AC100V~AC250V,50~60Hz, 30W
Application: Ultrasonic Device

Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn



Specification:



Specification

Performance

HS520A

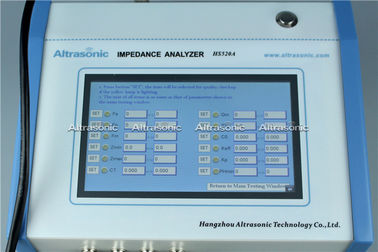

Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer;







Features:



1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.

2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.

3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.

4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.

5.HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)

6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.





Application:



·Operation

· Sonotrode tuning

· Test of transducers

· Test of acoustic sets

·Test of piezo ceramics

· Predictive maintenance



Competitive Advantages:



1,Virtually any hard material can be machined

2,Little heat is produced

3,Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes.

4,Good surface finish and higher structural integrity is obtained



Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn

Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn

Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn







Portable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And HornPortable And Easy Operate Touch Screen Analyzer For Ultrasonic Transducer And Horn
