Precision Control Ultrasonic Plastic Welding Machine With Full Touch Screen

China Precision Control Ultrasonic Plastic Welding Machine With Full Touch Screen supplier
Precision Control Ultrasonic Plastic Welding Machine With Full Touch Screen supplier Precision Control Ultrasonic Plastic Welding Machine With Full Touch Screen supplier

Large Image :  Precision Control Ultrasonic Plastic Welding Machine With Full Touch Screen

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-W20A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 - 20 Working days
Payment Terms: Western Union, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Frequency: 20kHz Power: 2000W, 3000W,4000W
Voltage: 110V Or 220-240VAC E Of Welding Time: 0.05-10/sec
Weight: 100 KGs





Latest Precision Control Ultrasonic Plastic Welder With Full Touch Screen High Stability And Various Welding Modes





Description:


This BRAND NEW type of Ultrasonic Welding Machine was reserched and developed for more than 2 years by our company. It adopts high performance tamper-proof microprocessor, realizing the electronic control, welding manage all control parameters by microcomputer, frequency control system, intelligent discharge the inconvenience of manual FM, sonic overload automatic detection, when the real track best resonance point, vibration group keep in low temperature, welding head temperature increase while the frequency will change accordingly, the machine automatically adjustment make it running more stable.





Specification:



Item No HS-W20A
Frequency 20Khz
Output 1000-5000W
Voltage 110VAC or 220-240VAC
Electric Current 15A
Range of Welding Time 0.05-10/sec
Environment Temperature 5-50℃
Pneumatic Requirement Clean, dry air at 100pis
Maximum Pressure 1.96KN
Maximum Stroke 75MM
Cycle Rate 80/Min
Weight 100Kgs
Dimension of press (mm) 400(L)*690(W)*1200(H)
Dimension of generator (mm) 280(L)*400(W)*120(H)
Working Mode

Time / Energy / Power/

Absolute depth / Relative depth / Pressure

Frequency available in 15, 20, 30, 35 and 40 kHz



Competitive Advantage:


I. High stability

II. Automatic frequency searching
The automatic frequency searching function make it more easy and safe in all kinds of applications.

III. The output is strong
The application of IGBT power module makes the
output power more than 1.5 times of the traditional
self-excited circuit.

IV. Amplitude stepless adjustment
The amplitude can be instantly increased or decreased
in the adjustment process, it can effectively reduce puncture and scald, and have the monitoring function
of defective products. It is more suitable for automatic matching and the range of setting amplitude is
10%~100%.

V. Intelligent protection and breakdown alarm
When the equipment breaks down, the generator will stop working immediately and give the fault cause
indication until the problem solved.

VI. The amplitude adjustment realized by the intelligent closed loop amplitude control technology

VII. Various welding modes, make the welding precision much higher

It has six working modes to choose from:Time / Energy / Power / Absolute depth / Relative depth/ PressureIt represents the top level of the same products in China.

VIII. Super size of LCD screen on the Generator

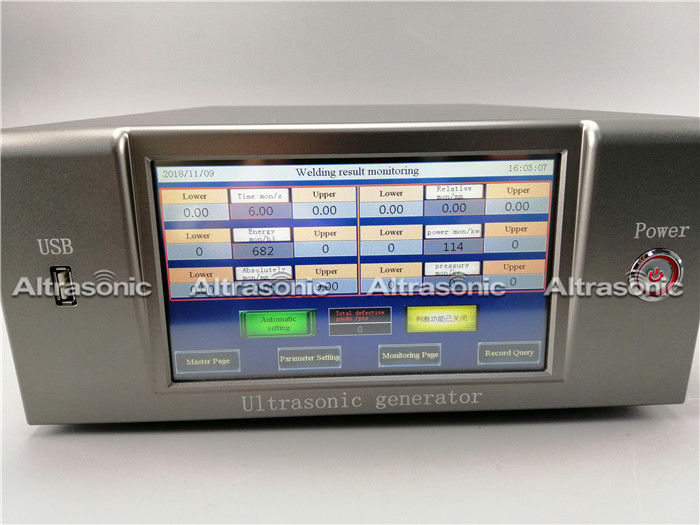

User Interface:


Precision Control Ultrasonic Plastic Welding Machine With Full Touch Screen


Applications:


Toy industry: Such as toy gun, water gun, telephone and rag baby etc.


Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.



Automotive industry: Car light, automotive interior parts etc.



Packing industry: Disguise box, PVC packing box, toothpaste tube etc.



General business ware: The inkjet cartridge, video cassette rack, tape box, computer disk etc.



Medical industry: Widely used in the medical industry due to the fast,clean,efficient of ultrasonic welding machine.

Our promise:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.


Workshop:

High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing


High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing

Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.


High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing

Payment:



High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing
