Part Name: Impedance Analyzer Frequency Range: 1KHz~500KHz/1MHz/3MHz
Frequency Accuracy: ±10 Ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Net Weight: 3.5kg Dimensions: 240*190*100mm
Speed Of Measuring: 0.5s / One Pass

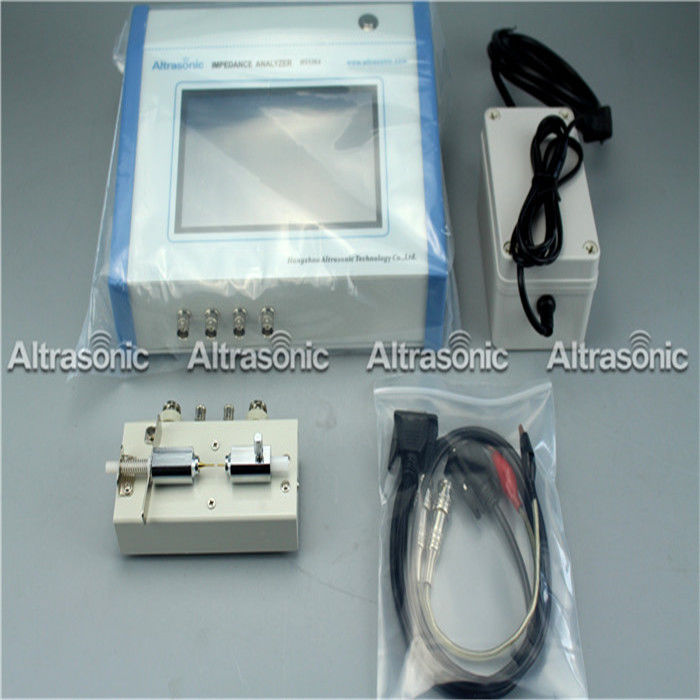

Large Frequency Range Touch Screen Easy Operation Ultrasonic Impedance Analyzer ​


Specification:


Specification
Performance

HS520A
Product featurePortable, 8inch screen, Full touch screen
DimensionL24cm,W19cm,H10cm
Frequency range1KHz~500MHz/1Mhz/3Mhz
Measurement IndexAll the parameters, the graph
Measurement Accuracy< 0.5%
Measurement Speed5s/one pass(600scan point) Adjustable
Frequency Accuracy±10ppm
Phase Resolution0.15 degree
Environment Temperature10~40degree centigrade
Impedance Range1Ω~1MΩ
Frequency Step0.1Hz~any
Power SupplyAC100V~AC250V,50~60Hz, 30W
ApplicationUltrasonic device





Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.


Its characteristics are as follows:


1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.
3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.
4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.
5.HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)
6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.



Applications:


The impedance analyzer is mainly used for measuring the impedance characteristics of various ultrasonic devices, including: piezoelectric ceramics, transducers, ultrasonic cleaners, ultrasonic plastic welders, magnetostrictive materials, ultrasonic pulverizers, ultrasonic atomization, ultrasonic cleaning. All equipment that uses ultrasound, such as teeth, ultrasonic ranging, phacoemulsification, ultrasonic descaling, ultrasonic motors, etc.



Warranty:



One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price





Large Frequency Range Touch Screen Easy Operation Ultrasonic Impedance Analyzer




Large Frequency Range Ultrasonic Impedance Analyzer Easy To OperationLarge Frequency Range Ultrasonic Impedance Analyzer Easy To Operation



Large Frequency Range Ultrasonic Impedance Analyzer Easy To Operation
Workshop:

Large Frequency Range Ultrasonic Impedance Analyzer Easy To Operation
CE Certification:

Large Frequency Range Ultrasonic Impedance Analyzer Easy To Operation

Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.





Quality control:
3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.
