Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry

China Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry supplier
Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry supplier Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry supplier Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry supplier

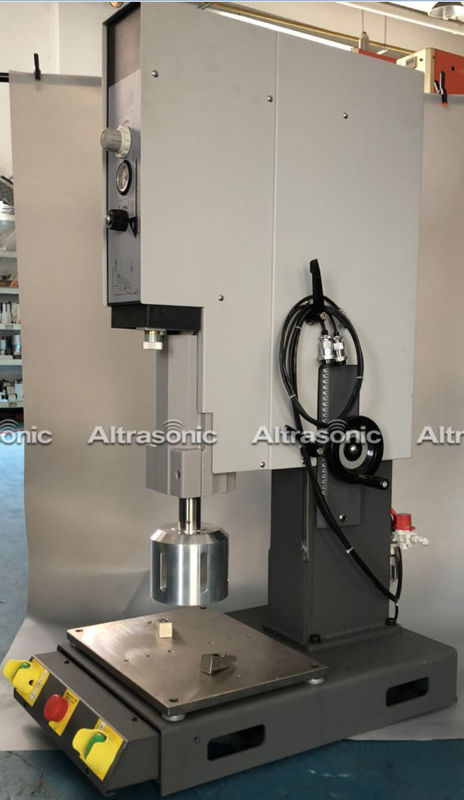

Large Image :  Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-W20 Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 - 15 Working days
Payment Terms: Western Union, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Frequency: 20kHz Power: 2000W, 3000W,4000W,5000W
Voltage: 110VAC Or 220-240VAC E Of Welding Time: 0.05-10/sec
Weight: 100 KGs Dimension Of Press: 400(L)*690(W)*1200(H)






Updated plastic welding technology

Description:
The Integrated Ultrasonic Plastic Welding Machine 20kHz, adopts high performance tamper-proof microprocessor, realizing the electronic control, welding manage all control parameters by microcomputer, frequency control system, intelligent discharge the inconvenience of manual FM, sonic overload automatic detection, when the real track best resonance point, vibration group keep in low temperature, welding head temperature increase while the frequency will change accordingly, the machine automatically adjustment make it running more stable and widely used for Automotive Industry.
 Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry

Specification:

SpecificationHS-2020Current indicationLoad current
Output power2600WAir source requirementsDry pure filtered air,pressure(1-6bar)
Frequency20khZWelding head cooling systemAir cold
Input power

220V±10%,AC(50/60Hz,
Uniphase)

Maximum welding areaΦ200mm
Welding head stroke100mmMachine dimensions700*400*1200
Vibration systemAmerican lineCase size400*280*160
Welding time settingRange:0.01-9.99SNet weight80kg


Characteristics:


1) The booster can be replaced and with wide range of applications.

  • Ultra-efficient transducers, with stable output.
  • New American lines,square column structure, more optimized performance. Newly developed digital anti-interference of time control loop, overcomes the problem that time control systems are susceptible to interference from electric and magnetic fields or other electronic factors in previous. It achieves time control more precisely and the maximum safety.
  • Advanced soft starting mode design, avoid damaging mold.

5) FM and automatic frequency compensation with wide resonance frequency range.

6) The base can be adjusted the horizontal or not,mold adjustment is simple and convenient.

7) Buffering settings of welding head,better realization of non-destructive appearance of precision welding.

8) Action method: pneumatic





User Interface:
Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry


Integrated Ultrasonic Plastic Welding Machine 20kHz For Automotive Industry


Applications:

Automotive industry: Car light, automotive interior parts etc.
Toy industry: Such as toy gun, water gun, telephone and rag baby etc.
Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

Packing industry: Disguise box, PVC packing box, toothpaste tube etc.


Our promise:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.


Workshop:

High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing


CE Certification:
High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing
Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing
Payment:



High Power Ultrasonic Plastic Welding Machine for Plastic Cover Toothpaste Sealing
