Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems

China Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems supplier
Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems supplier Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems supplier

Large Image :  Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-W20A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 - 20 Working days
Payment Terms: Western Union, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Frequency: 20kHz Power: 2000W, 3000W,4000W
Voltage: 110V Or 220-240VAC E Of Welding Time: 0.05-10/sec
Weight: 100 KGs



Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems



Altrasonic, Not only Ultrasonic





Altrasonic HS-W series of Ultrasonic Plastic Welder provide you a range of system models with varying process control levels and functionalities to match your application needs.

Also the power supply offers multiple weld mode control levels (time, energy, power, absolute distance,relative distance and pressure),

five output ultrasonic frequencies (15, 20, 30, 35 or 40 kHz), and the flexibility to combine with one of several actuator options to create an ultrasonic assembly system that reflects the precise level of performance, control, and value your application needs.

The precision performance are suitable for More Demanding Applications



For more than 20 years, Altrasonic has been in the leadership of ultrasonic technologies in China.

we are providing the products and also offering applications support, training, troubleshooting and customer service so that your equipment continually operates as expected.





Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems



Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems



Specification:
Item No HS-W35A HS-W20A
Frequency 35Khz 20Khz
Output 1000W 1000-5000W
Voltage 110VAC or 220-240VAC 110VAC or 220-240VAC
Electric Current 6A 15A
Range of Welding Time 0.05-10/sec 0.05-10/sec
Environment Temperature 5-50℃ 5-50℃
Pneumatic Requirement Clean, dry air at 100pis Clean, dry air at 100pis
Maximum Pressure 1.96KN 1.96KN
Maximum Stroke 75MM 75MM
Cycle Rate 80/Min 80/Min
Weight 90Kgs 100Kgs
Dimension of press (mm) 300(L)*490(W)*1055(H) 400(L)*690(W)*1200(H)
Dimension of generator (mm) 280(L)*400(W)*120(H) 280(L)*400(W)*120(H)
Working Mode

Time / Energy / Power/

Absolute depth / Relative depth / Pressure

Time / Energy / Power/

Absolute depth / Relative depth / Pressure

Frequency available in 15, 20, 30, 35 and 40 kHz







Our Advantage:


High stability-

All digital integrated circuit adopts the high-performance anti-interference processor which is imported from

the United States, improved the reliability and stability of the system.


Auto Seek -

Automatically measures stack frequency and stores it in memory. Five selectable Auto Seek choices are available



The output is strong -
The application of IGBT power module makes the output power more than 1.5 times of the traditional
self-excited circuit.

Amplitude stepless adjustment-
The amplitude can be instantly increased or decreased
in the adjustment process, it can effectively reduce puncture and scald, and have the monitoring function
of defective products. It is more suitable for automatic matching and the range of setting amplitude is
10%~100%.




Total Amplitude Control –

With our new develped power supply technology, you have complete control of amplitude throughout the weld cycle: programmable starting ramp, digital setting of weld amplitude, and energy braking.







Intelligent protection and breakdown alarm -
When the equipment breaks down, the generator will stop working immediately and give the fault cause
indication until the problem solved.




Various welding modes, make the welding precision much higher
It has six working modes to choose from:
Time / Energy / Power / Absolute depth / Relative depth/ Pressure.
it represents the top level of the same products in China.

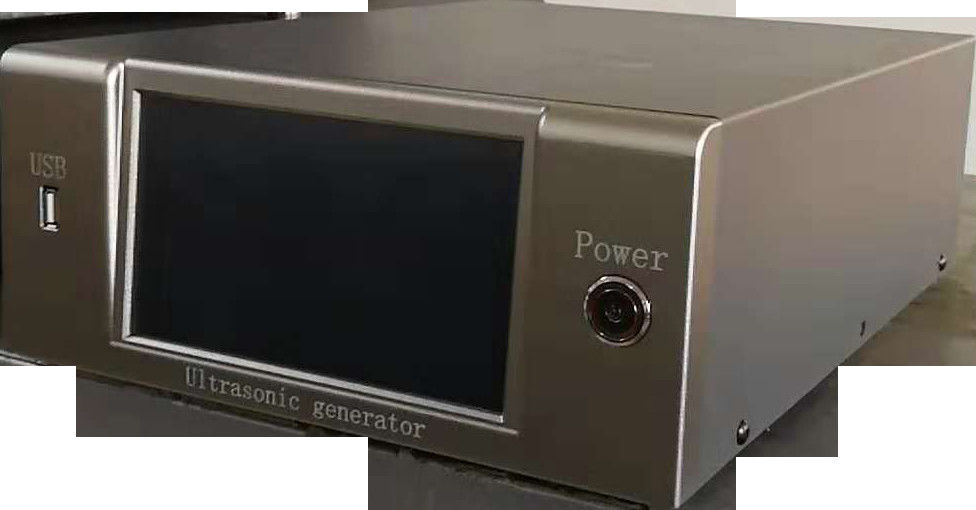

Superior LCD touch screen on power supplier

USB – The addition of this port allows for a USB device to be linked to the unit, including mouse, memory sticks, etc.

External VGA Port – Allows for the addition of either a remote monitor or touch screen to the system.

Self-diagnostics and Monitoring – Visual, audible, and logic output alarms. • Multiple Weld Modes –





User Interface:
Digital Customizable Ultrasonic Plastic Welding Machine Assembly Systems





Applications:


Toy industry: Such as toy gun, water gun, telephone and rag baby etc.


Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.



Automotive industry: Car light, automotive interior parts etc.



Packing industry: Disguise box, PVC packing box, toothpaste tube etc.



General business ware: The inkjet cartridge, video cassette rack, tape box, computer disk etc.



Medical industry: Widely used in the medical industry due to the fast,clean,efficient of ultrasonic welding machine.


Our promise:


Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.

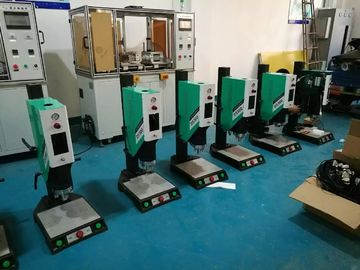

Workshop:
