|Voltage:||110V Or 220-240VAC||E Of Welding Time:||0.05-10/sec|
plastic ultrasonic welding,
ultrasonic plastic welder
Precision Control Ultrasonic Plastic Welding Machine Compare With Bransons Type
This BRAND NEW type of Ultrasonic Welding Machine was reserched and developed for more than 2 years by our company. it adopts high performance tamper-proof microprocessor, realizing the electronic control, welding manage all control parameters by microcomputer, frequency control system, intelligent discharge the inconvenience of manual FM, sonic overload automatic detection, when the real track best resonance point, vibration group keep in low temperature, welding head temperature increase while the frequency will change accordingly, the machine automatically adjustment make it running more stable.
|Voltage||110VAC or 220-240VAC|
|Range of Welding Time||0.05-10/sec|
|Pneumatic Requirement||Clean, dry air at 100pis|
|Dimension of press (mm)||400(L)*690(W)*1200(H)|
|Dimension of generator (mm)||280(L)*400(W)*120(H)|
Time / Energy / Power/
Absolute depth / Relative depth / Pressure
Frequency available in 15, 20, 30, 35 and 40 kHz
I. High stability
II. Automatic frequency searching
The automatic frequency searching function make it more easy and safe in all kinds of applications.
III. The output is strong
The application of IGBT power module makes the
output power more than 1.5 times of the traditional
IV. Amplitude stepless adjustment
The amplitude can be instantly increased or decreased
in the adjustment process, it can effectively reduce puncture and scald, and have the monitoring function
of defective products. It is more suitable for automatic matching and the range of setting amplitude is
V. Intelligent protection and breakdown alarm
When the equipment breaks down, the generator will stop working immediately and give the fault cause
indication until the problem solved.
VI. The amplitude adjustment realized by the intelligent closed loop amplitude control technology
VII. Various welding modes, make the welding precision much higher
It has six working modes to choose from:
Time / Energy / Power / Absolute depth / Relative depth/ Pressure.
it represents the top level of the same products in China.

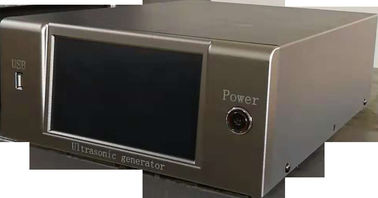

VIII. Super size of LCD screen on the Generator
Toy industry: Such as toy gun, water gun, telephone and rag baby etc.
Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.
Automotive industry: Car light, automotive interior parts etc.
Packing industry: Disguise box, PVC packing box, toothpaste tube etc.
General business ware: The inkjet cartridge, video cassette rack, tape box, computer disk etc.
Medical industry: Widely used in the medical industry due to the fast,clean,efficient of ultrasonic welding machine.
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; we reputation from customer.
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
