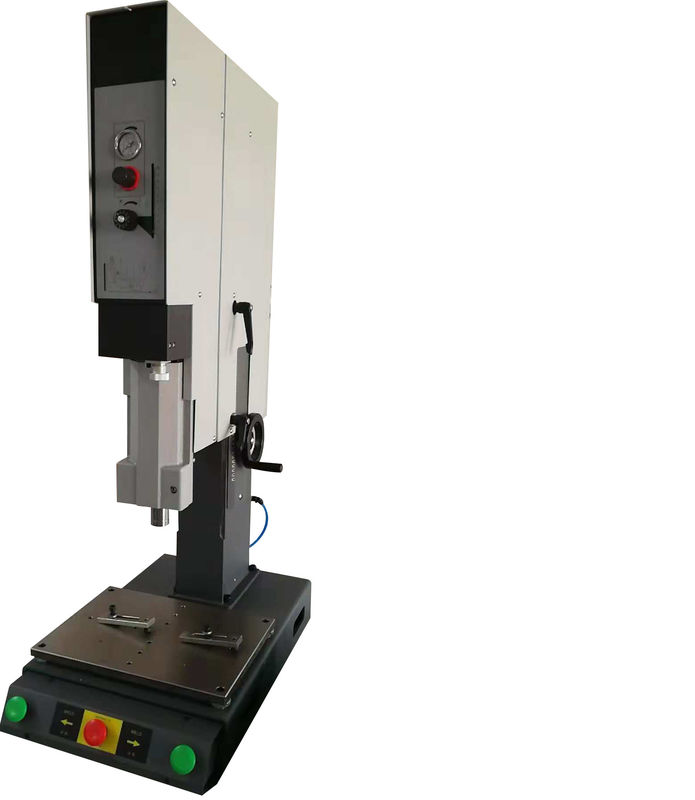

Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry

China Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry supplier

Large Image :  Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-W35A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Payment Terms: T/T, Western Union, L/C
Supply Ability: 500 Units per Month
Contact Now
Detailed Product Description
Frequency: 35kHz Output: 1000W
Voltage: 110VAC Or 220-240Vac Maximum Pressure: 1.96KN
Cycle Rate: 80/Min Weight: 90KGs



Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry



Brand New Type

Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry



Description:

Ultrasonic plastic welding machine is a high - tech technology for welding thermoplastic products. When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs.

The advantage of ultrasonic plastic welding is to increase productivity, lower cost, improve product quality and safety production. Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded.



Applications:

Medical Industry: Widely used in the medical industry due to the fast,clean,efficient of ultrasonic welding machine.

Toy industry: such as toy gun, water gun, telephone and rag baby etc.

Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

Car industry: Car light.

Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.





Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry



Competitive Advantage:

High stability

All digital integrated circuit adopts the high-performance

anti-interference processor which is imported from

the United States, improved the reliability and stability

of the system.



Automatic frequency searching

The automatic frequency searching function make it more easy and safe in all kinds of applications.



The output is strong

The application of IGBT power module makes the

output power more than 1.5 times of the traditional

self-excited circuit.



Amplitude stepless adjustment

The amplitude can be instantly increased or decreased

in the adjustment process, it can effectively reduce puncture and scald, and have the monitoring function

of defective products. It is more suitable for automatic matching and the range of setting amplitude is

10%~100%.



Intelligent protection and breakdown alarm

When the equipment breaks down, the generator will stop working immediately and give the fault cause

indication until the problem solved.



Plus size LCD touch screen





Specification:

Item No HS-W35A
Frequency 35Khz
Output 1000W
Voltage 110VAC or 220-240VAC
Electric Current 6A
Range of Welding Time 0.05-10/sec
Environment Temperature 5-50℃
Pneumatic Requirement Clean, dry air at 100pis
Maximum Pressure 1.96KN
Maximum Stroke 75MM
Cycle Rate 80/Min
Weight 90Kgs
Dimension of press (mm) 300(L)*490(W)*1055(H)
Dimension of generator (mm) 280(L)*400(W)*120(H)





Durable 35 KHz Ultrasonic Plastic Welder Assembly System For Medical Industry
