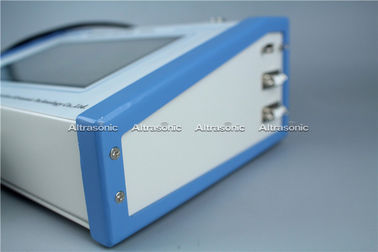

Portable 8 Inch Measuring Instrument For Ultrasonic Plastic Welding Machine

China Portable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding Machine supplier
Portable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding Machine supplier Portable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding Machine supplier Portable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding Machine supplier

Large Image :  Portable 8 Inch Measuring Instrument For Ultrasonic Plastic Welding Machine

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Specification Performance: HS520A Frequency Range: 1KHz~500MHz/1Mhz/3Mhz
Measurement Accuracy: < 0.5%

Trz Horn Analyzer Ultrasonic Transducer Characteristics Measuring Instrument



Specification:

Specification

Performance

HS520A

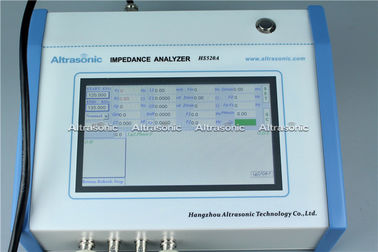

Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:

For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer;





Application:

Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.





Portable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding Machine

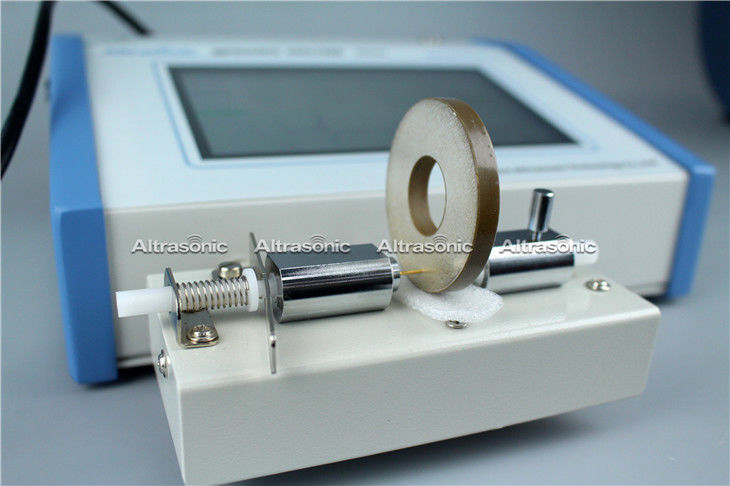

Piezo Ceramic Parameters Measuring Device Without Calibration

Portable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding MachinePortable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding MachinePortable 8 Inch Measuring Instrument For  Ultrasonic Plastic Welding Machine



FAQ:

Q:Is the PC windows software delivered with the equipment, can we download it, or do we have to buy it?

A:The software and specification will send to you by email for free ,quite easy operation.





Q:What is the difference between HS80A/70A and HS520A?

A:We all have update our impedance analyzer from HS80A/70A to HS520A.HS520A is based on the HS70A and HS80A,Portable, more powerful ARM processor.HS520A has large touch screen, you can operate it without PC.





Q:Can data be stored in the storage media (USB Hard Drive... etc.)?

A:At present, it support PC storage, we have reserved USB port and after we update the software,the date can be directly storaged into USB Hard Drive or mobile phone.
