Piezo Ceramic Parameters Measuring Instrument HS520A Without Calibration

China Piezo Ceramic Parameters Measuring Instrument  HS520A Without  Calibration supplier
Piezo Ceramic Parameters Measuring Instrument  HS520A Without  Calibration supplier Piezo Ceramic Parameters Measuring Instrument  HS520A Without  Calibration supplier Piezo Ceramic Parameters Measuring Instrument  HS520A Without  Calibration supplier

Large Image :  Piezo Ceramic Parameters Measuring Instrument HS520A Without Calibration

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Specification Performance: HS520A Frequency Range: 1KHz~500MHz/1Mhz/3Mhz
Measurement Accuracy: < 0.5%

Piezo Ceramic Parameters Measuring Device Without Calibration



Specification:

Specification

Performance

HS520A

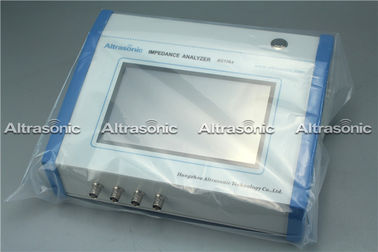

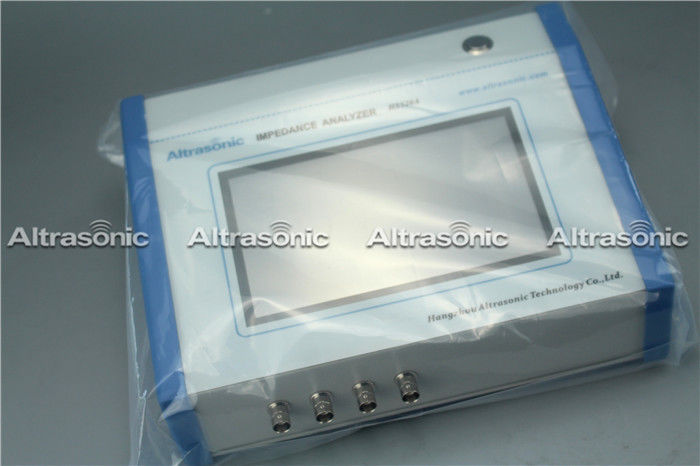

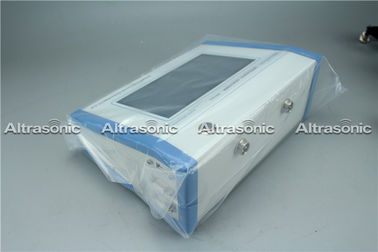

Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:

For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer;





Application:

Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.





Piezo Ceramic Parameters Measuring Instrument  HS520A Without  Calibration



Piezo Ceramic Parameters Measuring Device Without Calibration

Piezo Ceramic Parameters Measuring Instrument  HS520A Without  CalibrationPiezo Ceramic Parameters Measuring Instrument  HS520A Without  CalibrationPiezo Ceramic Parameters Measuring Instrument  HS520A Without  Calibration



FAQ:

Q:What is ultrasonic impedance analyzer?

A:The impedance analyzer can accurately measure the impedance range and wide frequency range. It uses the object to have different conductive effects. When a fixed low-level current is applied to the the object, the various devices equipment parameters and performance can be calculated through the impedance





Q: Can this analyzer connect to PC ?

A: Our ultrasonic impedance analyzer can connect to PC operation for storage, you can also check the operation video on our YTB:https://youtu.be/AY16fSjw8ZM





Q:We have many ceramic for testing, do you have holder for testing ceramic.

A:We have special fixture for holing ceramic, we will send the picture to you.
