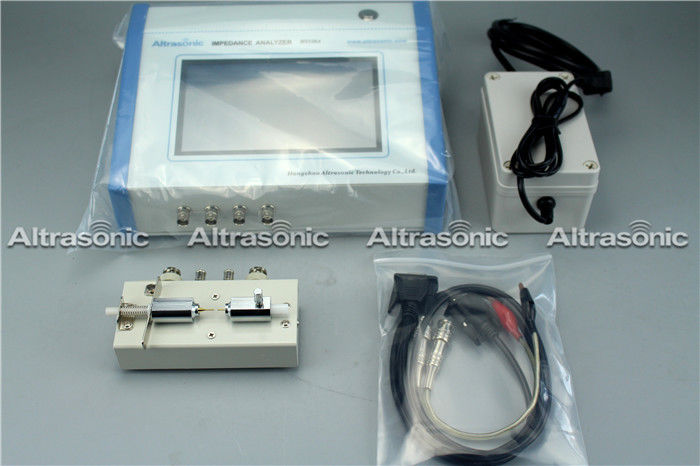

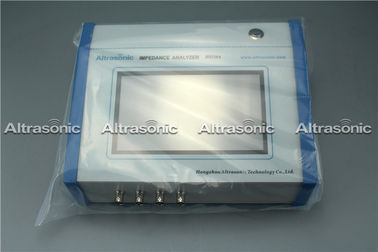

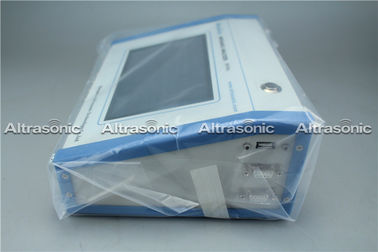

Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound

Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound
Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound

Large Image :  Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound

Description
High Light:

measurement instruments

,

analyzer instrument

Ultrasonic Horn Analyzing Device For Used In Piezoelectric And Ultrasound.



Specification:

Specification

Performance

HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:

The TRZ Horn Analyzer is a high-tech device dedicated to tuning, frequency analysis and testing of power ultrasonic transducers, horns (sonotrodes) and correlated devices. The TRZ is for these elements as an oscilloscope is for the electronics.

With the TRZ, the transducers and sonotrodes become just as measurable and adjustable as any other device.





Application:

Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.





Competitive Advantages:

* Reduces ultrasonic equipment maintenance costs because it allows preventive maintenance

* Allows the quality control of ultrasonic transducers reducing technical assistance

* Makes fast and accurate manufacturing of transducer possible

* Easy operation

* Can connect to PC operation for storage



Ultrasonic Horn Analyzing Device For Used In Piezoelectric And Ultrasound.

Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound 0Altrasonic Portable Impedance Analyzer Used In Piezoelectric And Ultrasound 1
