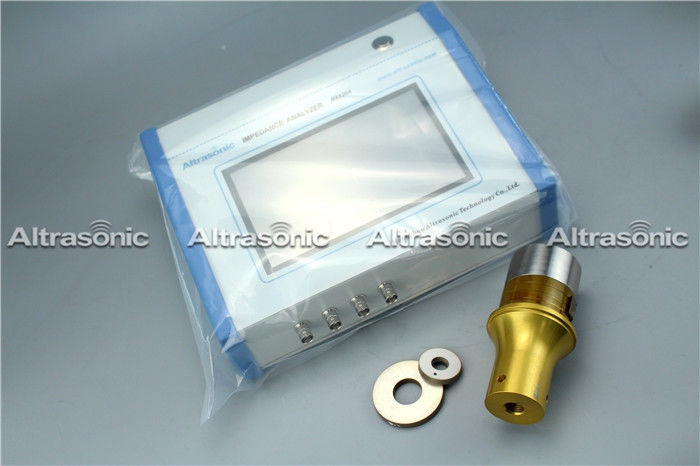

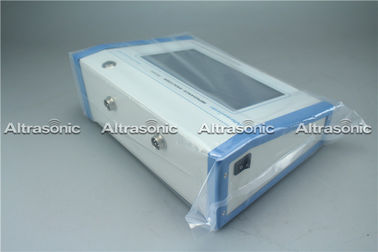

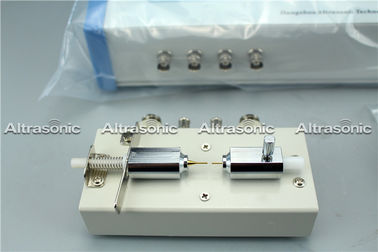

Ultrasonic Impedance Measuring Instrument For Resonance Half Power Frequency

China Ultrasonic Impedance Measuring Instrument For  Resonance Half Power Frequency supplier
Ultrasonic Impedance Measuring Instrument For  Resonance Half Power Frequency supplier Ultrasonic Impedance Measuring Instrument For  Resonance Half Power Frequency supplier Ultrasonic Impedance Measuring Instrument For  Resonance Half Power Frequency supplier

Large Image :  Ultrasonic Impedance Measuring Instrument For Resonance Half Power Frequency

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description

Ultrasonic Impedance Analyzer For Resonance Half Power Frequency Of Transducer



Specification:



Specification

Performance

HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:

The proper frequency and impedance adjust is indispensable for all ultrasonic devices. The frequency depends mainly on dimensions (e.g.: length of the sonotrode) and the impedance of the quality of material used, assembly, and coupling of the acoustic sets’ parts. Deviations indicate the need for fine tuning, cleaning, re-gripping or re-assembly.





Application:

Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.





Competitive Advantages:

1,Virtually any hard material can be machined

2,Little heat is produced

3,Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes.

4,Good surface finish and higher structural integrity is obtained



Ultrasonic Impedance Analyzer For Resonance Half Power Frequency Of Transducer

Ultrasonic Impedance Measuring Instrument For  Resonance Half Power FrequencyUltrasonic Impedance Measuring Instrument For  Resonance Half Power FrequencyUltrasonic Impedance Measuring Instrument For  Resonance Half Power Frequency
