Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters

China Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters supplier
Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters supplier Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters supplier Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters supplier

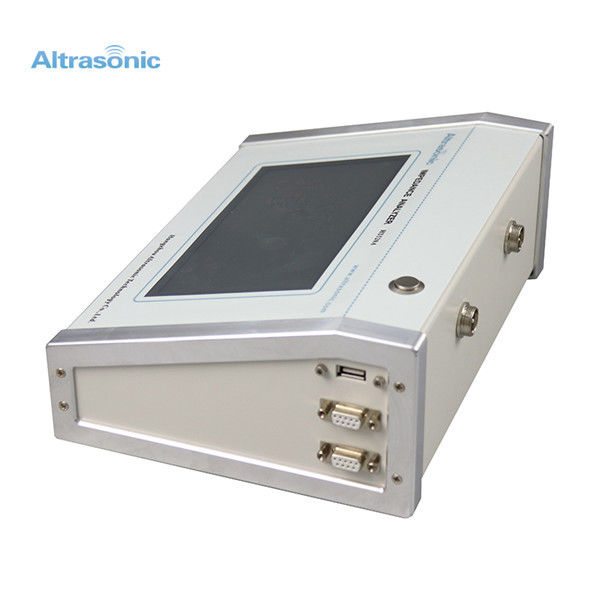

Large Image :  Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Generator: Digital

Touch Screen 1khz-5mhz Ultrasonic Analyzer Printer For Parameters



Specification:



Specification

Performance

HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:



The TRZ Horn Analyzer determines the operation frequency of the item to be tested and its impedance and current with the touch of a button. It’s quick and easy. With this quick and easily retrieved information, the user can perform the quality control of transducers, tuning of sonotrodes and ultrasonic horns, preventive and corrective maintenance of acoustic sets and much more





Application:



Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.



Competitive Advantages:



Test equipment is the most important part of product quality checks, so the product of “credibility” is essential. Our products have four major advantages:

1.Tsinghua University and the Chinese Academy of Sciences Institute of Acoustics jointly developed technology.

2. Since 2001, our HS60A/70A series of products to the market has been 15 years , thousands of customers use in the industry, has become a matter of fact the ultrasound industry measurement standard.

3.Over the past 15 years, more than 200 colleges and universities have been using our instruments, because they often have more than 20,000 imported Agilent instruments, 4294A. Our instruments have been tested many times with imported Agilent instruments. It turns out that the results of our instruments are completely trustworthy.

4. Our instruments have been used by many German and US ultrasonic testing companies as test instruments. The instrument is the key to quality control.

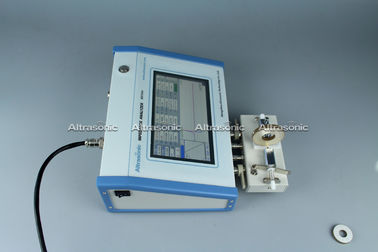

Touch Screen 1khz-5mhz Ultrasonic Analyzer Printer For Parameters

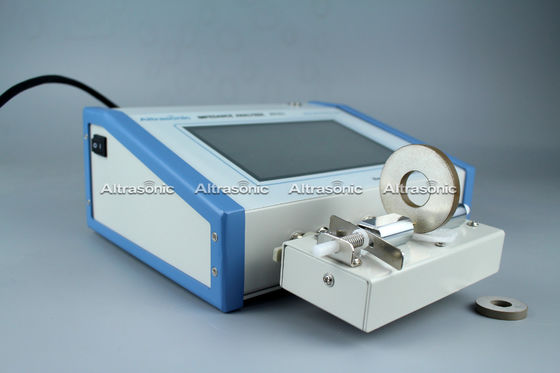

Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters

Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters



   Workshop:

Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters



   CE Certification:

Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters





   Packing&Shipping:



Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For ParametersTouch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters





    Payment:

Touch Screen 1khz - 5mhz Ultrasonic Analyzer Printer For Parameters
