Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument

Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument
Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument

Large Image :  Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Carton or Wooden case
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

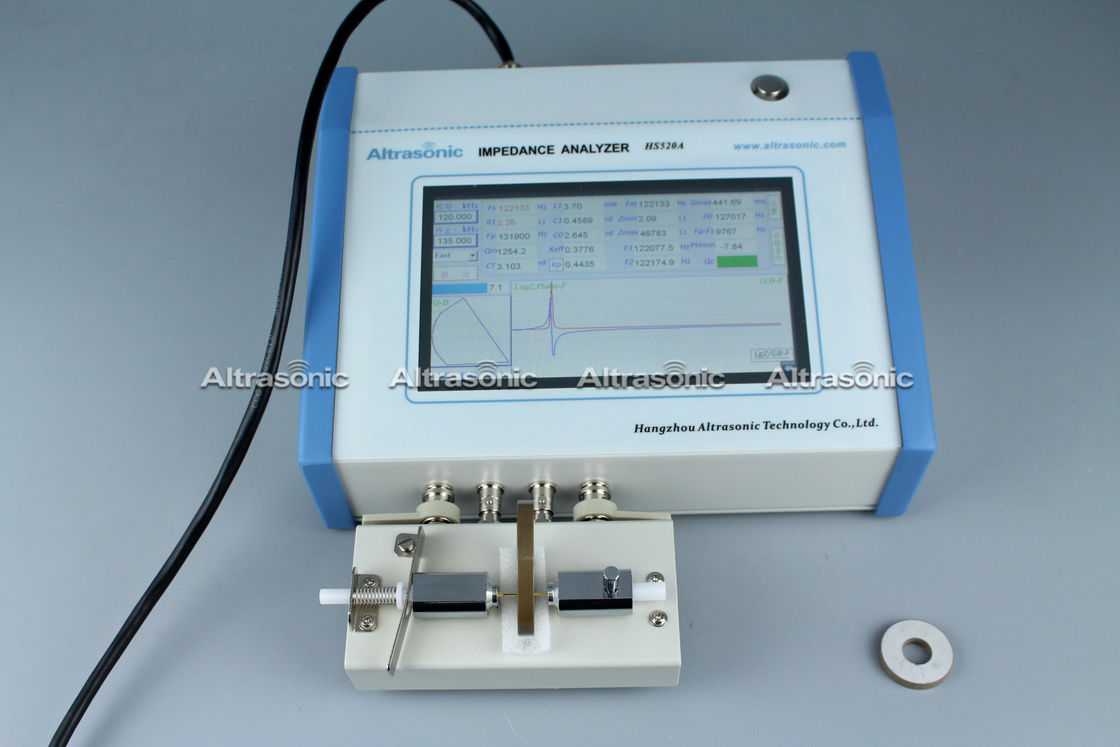

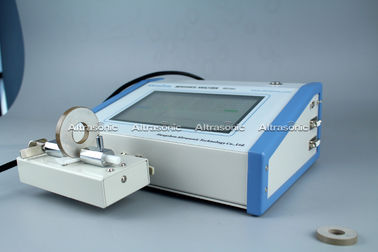

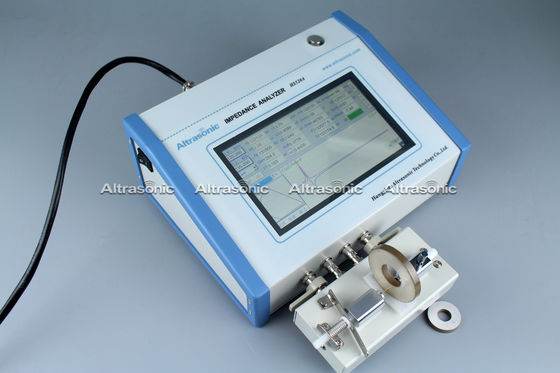

Accurate Testing Ultrasonic Horn Tuning For Transducer Measuring Instrument

Description
Generator: Digital
High Light:

measurement instruments

,

analyzer instrument

Accurate Testing Ultrasonic Horn Tuning For Transducer  Measuring Instrument



Specification:



Specification

Performance

HS520A
Product feature Portable, 8inch screen, Full touch screen
Dimension L24cm,W19cm,H10cm
Frequency range 1KHz~500MHz/1Mhz/3Mhz
Measurement Index All the parameters, the graph
Measurement Accuracy < 0.5%
Measurement Speed 5s/one pass(600scan point) Adjustable
Frequency Accuracy ±10ppm
Phase Resolution 0.15 degree
Environment Temperature 10~40degree centigrade
Impedance Range 1Ω~1MΩ
Frequency Step 0.1Hz~any
Power Supply AC100V~AC250V,50~60Hz, 30W
Application Ultrasonic device







Description:



For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer;





Application:



·Operation

· Sonotrode tuning

· Test of transducers

· Test of acoustic sets

·Test of piezo ceramics

· Predictive maintenance



Competitive Advantages:



1,Virtually any hard material can be machined

2,Little heat is produced

3,Since the motion of the tool is up-and-down vibration rather than rotation as in traditional machining, the holes cut are not limited to circular shapes but can be any shape. Custom "cookie cutter" tools can cut complicated shapes.

4,Good surface finish and higher structural integrity is obtained
