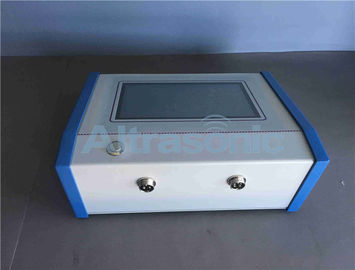

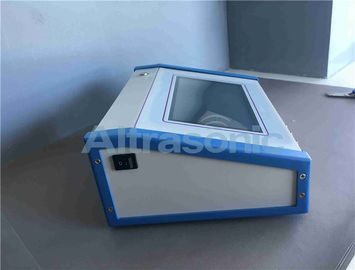

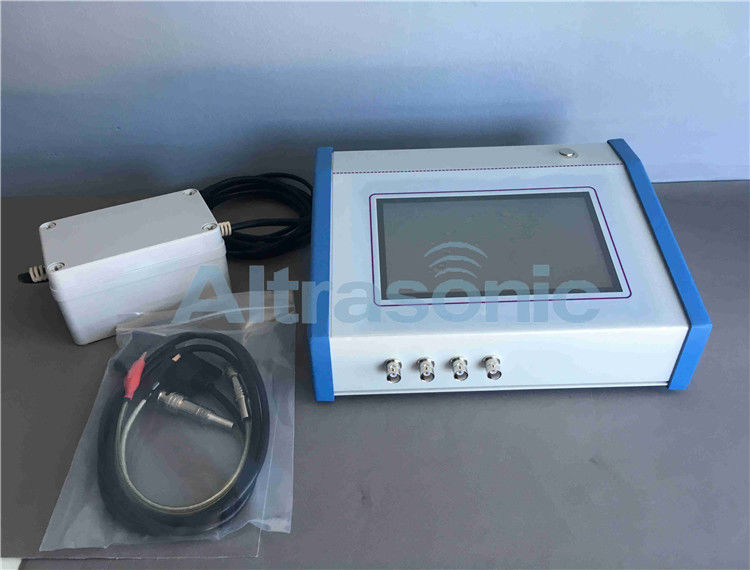

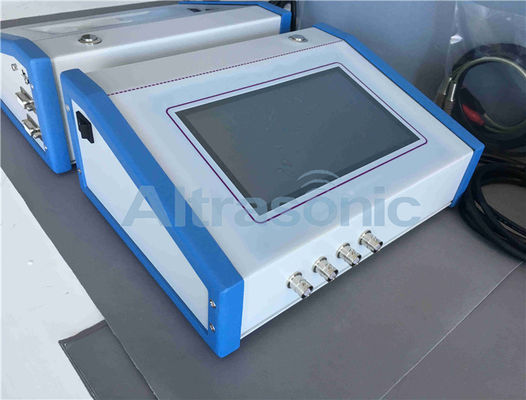

Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics

Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics
Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics

Large Image :  Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS520A (Newest)
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month

Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics

Description
Part Name: Impedance Analyzer Frequency Range: 1KHz~500KHz/3Mhz/5Mhz
Frequency Accuracy: ±10 Ppm Amplification: Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic
Net Weight: 3.5kg Dimensions: 240*190*100mm
Speed Of Measuring: 0.5s / One Pass
High Light:

measurement instruments

,

analyzer instrument

Accurate Testing Ultrasonic Horn Tuning For Transducer Characteristics

Measuring Instrument



Description:

For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.



The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).



HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.


Its characteristics are as follows:

1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.

2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.

3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.

4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.

5.HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)

6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.



Applications:

Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.



Warranty

One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price



Accurate Testing Ultrasonic Horn Tuning For Transducer Characteristics

Measuring Instrument









Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics 0

Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics 1



Payment:

Accurate Testing Ultrasonic Horn Tuning Measuring Instrument For Transducer Characteristics 2



Quality control:

3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
