Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

China Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface supplier
Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface supplier Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface supplier Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface supplier

Large Image :  Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-X20P

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in cotton with foam inside
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Frequency: 20khz Max. Output Power: 1500watt
Application:: Welding Plastic Parts Power Supply: Digital
Rated Current: 10A Welding Time Range: 0.05s-10s
Weight: 110kg Ambient Temperature: 5-50℃

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface​

Description:

The HS-X20P series of ultrasonic welder offer a compact design to conserve work space,and is easy for operation and maintenance to achieve an outstanding cost-performance.
The HS-X20P series of ultrasonic welder is using a mechanical control and accurate duplication of welder parameters setting design for a more stable and reliable weld performance, suitable for more industrial applications.

Technical Parameters:



Item No HS-X20P
Frequency 20Khz
Power 1500W
Voltage 200-240V, Alternating current
50-60hz, Single phase
Electric current 10A
Range of welding time 0.05-10/sec
Environment Temperature 5-50℃
Air supply requirements Clean dry compressed air, maximum pressure 7kg
Maximum pressure 1.96KN
Maximum stroke 100MM
Beats 80CPM
Operated mode Time mode or Energy mode
Weight 110Kgs

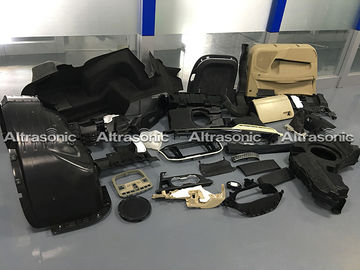

Consumer industry applications:


Using ultrasonics, consumer components can be produced and joined in a cost-effective way; at the same time, the process provides great flexibility in terms of design. High requirements for visual appearance, production speed, or geometry are met.

  • Light-weight and robust
  • 100% tightness
  • Mark-free surfaces

Principle:

Transmitted ultrasonic energy through welding parts to welding area, local high temperature will happen due to high acoustic resistance between two welding interface places. Also, no enough time dissipating out heating energy timely because of poor plastic thermal conductivity, heating energy gathered in welding area since could not dissipating out timely, the two plastic contact areas will welt rapidly, coupled with a certain pressure, it makes fusion to one unite. When ultrasonic stop function, and keep the pressure sustain to make its solidification molding, finally forming a strong molecular chain, which achieve the purpose of welding. And the welding strength can close to raw material body strength.


Main advantages:

  1. High Amplitude to adjusting different plastic material welding.
  2. Exclusive system protection monitor module.
  3. Self test and automatic frequency search.
  4. Dynamic Triggering to provide consistent welding result



Other Applications for Ultrasonic Welding

INSERTING
Threaded inserts, grub screws or other parts can be ultrasonically embedded in thermoplastics.



Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface



STAKING
Melting and forming of a plastic stud to retain or lock another material, often dissimilar, in place.



Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

SPOT WELDING
Used for joining two thermoplastic parts with no pre-formed hole or energy director. This technique is particularly suited to large parts or parts with complicated geometry and thermoformed or blow-molded parts without a joint.



Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

SWAGING
Used to capture another component of an assembly by melting and reforming a ridge of plastic around the component. The ridge locks the second component in place without welding the materials together.



Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface



Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface​

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface



Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

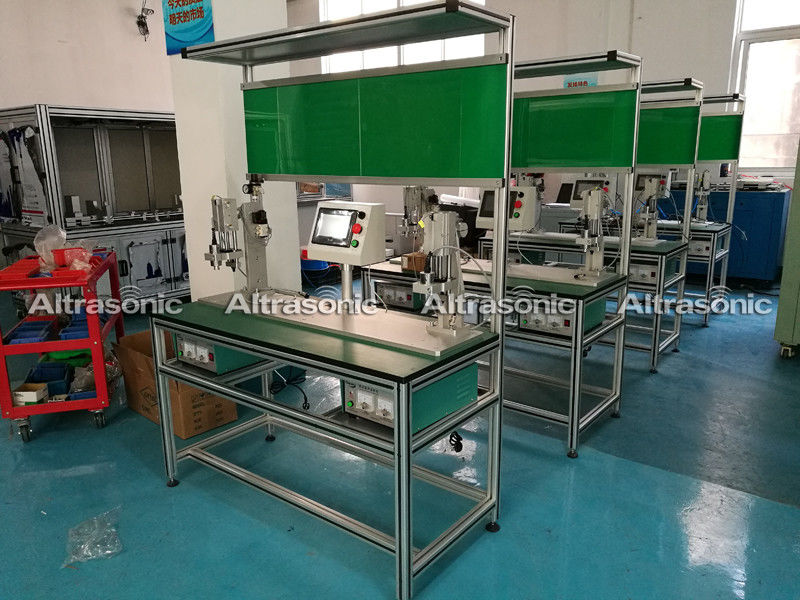

Workshop:

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface
CE Certification:

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

Packing&Shipping:
Shipping Port:Shanghai
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

Payment:

Consumer Industry Ultrasonic Geometry Welding Tightness Mark-free Surface

Quality control:
3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.
