|Part Name:||Impedance Analyzer||Frequency Range:||1KHz～500KHz/3Mhz/5Mhz|
|Frequency Accuracy:||±10 Ppm||Amplification:||Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic|
|Speed Of Measuring:||0.5s / One Pass|

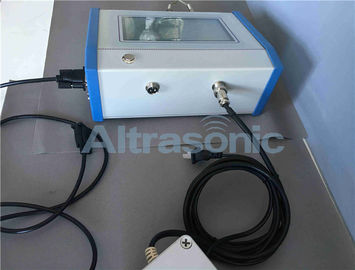

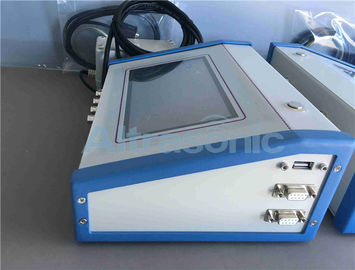

Easy Operation Ceramic Measuring Ultrasonic Transducer Characteristics Testing With PC Storage
For ultrasonic components measuring instrument, the most important is the admittance chart, logarithmic graph of the two graphics (the two graphics is the main method of qualified qualified), and more than a dozen parameters: resonance frequency Fs, the maximum conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp, quality factor Qm, free capacitance CT, dynamic resistance R1, dynamic inductance L1, dynamic capacitance C1, static capacitance C0, effective electromechanical coupling coefficient Keff.
The Measuring instrument which can easily replace much more complex and more complicated, also many times more expensive instruments from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer 4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System Analyzer etc. It is also very easy to use HS520A (by engineers or ordinary production workers).
HS520A is based on the HS70A and HS80A, a new generation of ultrasonic components analyzer.
Its characteristics are as follows:
1. Large screen, full-screen touching, making the HS520A both HS70A-P(computer version) operating experience, and no cumbersome with a sense of computer operation.
2. Relies on the new powerful ARM processor data processing capacity, HS520A measurement accuracy is much higher than HS70A-D (with display version), can achieve HS70A-P(computer version) level.
3. Full-screen touch operation is more user-friendly, no longer need HS70A-D(own display version) a large number of physical buttons, thus operating instruments becomes extremely simple, the production size smaller, lighter and more portable.
4. Connecting the computer to operate as HS70V-P. The software is fully compatible, the user are no longer familiar with software operation.
5．HS520A was taken into account the needs of automated production line operation in the development time, reserved the 232interface with PLC communication and IO communication interface (replay input and output)
6. HS520A operation is no longer based on Windows system, with long-term reliable operation capacity in the production line.
Resonant frequency: Fs,
The maximum conductance :Gmax,
Half power frequency points :F2-F1,
Dynamic resistance :R1,
Parallel or anti resonance frequency :Fp,
Mechanical quality factor :Qm,
Free capacitance :CT,
Dynamic inductance: L1,
Dynamic capacitance :C1,
Static capacitance :CO,
Electromechanical coupling coefficients: Keff.
Planar electromechanical coupling coefficient K:p
Freedom of dielectric constant
Piezoelectric ceramics, transducers, ultrasonic cleaning machines, ultrasonic plastic welding machine, underwater acoustic, magnetostrictive materials, ultrasonic grinder, ultrasonic atomization , reversing radar, ultrasonic ranging, phacoemulsification , ultrasonic motors, and all other devices used in piezoelectric and ultrasound.
1Khz ~5 Mhz High Frequency Range Ultrasonic Impedance Analyzer For Ceramic Testing
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
One year Warranty with none human damage.In this period factory will responsible for repair fix it for free or factory will send the new parts to customer instead of the broken parts for free.After warranty time,factory will repair fix it or send the new parts on cost price
3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.
