High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic

China High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic supplier
High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic supplier High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic supplier High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic supplier High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic supplier High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic supplier

Large Image :  High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSD70S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Set per month
Contact Now
Detailed Product Description
Frequency: 70khz Max. Output Power: 300watt
Application: Embeding Copper Wire On The Plastic Card Frequency Tuning Method: Frequency Tuning Method

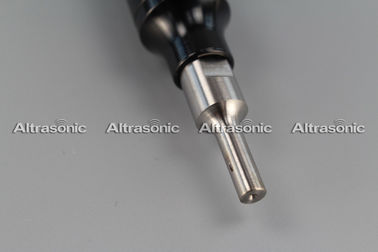

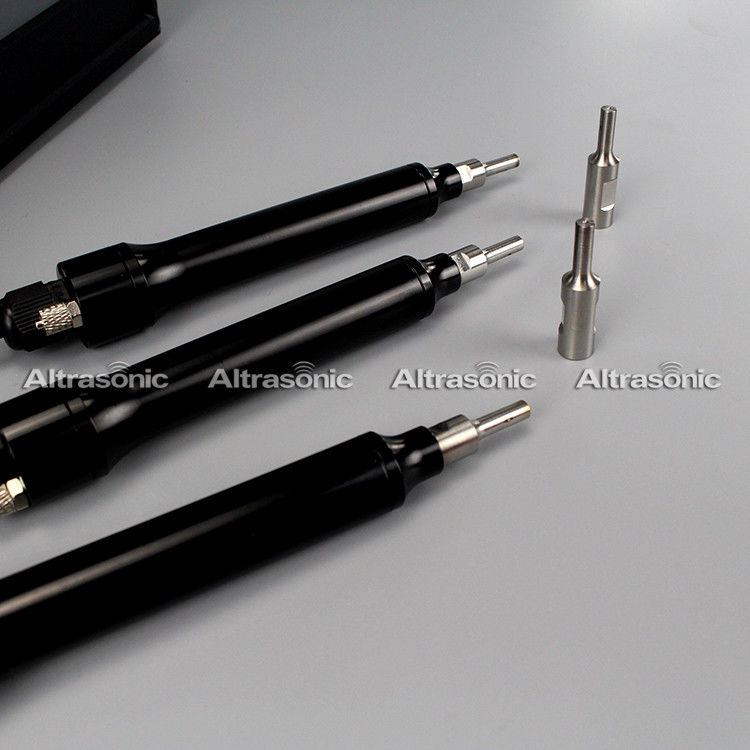

Components: Ultrasonic Transducer, Generator And Embedding Horn Power Adjusting Method: 10-100%
Net Weight: 12.5kg Power Supply: Digital Mode

RFID Inlay Production in Large Format for Optimum Throughput by High Frequency 70khz Ultrasonic Embedding Technology



Description:



During the past half year, with many effort from the research development section of our company, at present we have successfully promote the intelligent card welding equipment substantially. After promotion, comparison with the former one, the properties of the equipment has been promoted highly, more stability, better in search the frequency at more wide range, and much better appearance. On the process using the former70K equipment, with the damage of the welding horn, the frequency would be altered.(the frequency is decided by the size of the product).When the frequency is altered to a certain degree, the ultrasonic generator would be difficult to coincide with the frequency, then influencing to the normal running of all the ultrasonic system.





The 70 Khz Card Implanting Welder Principle:



High Speed wire embedding with multiple embedding heads. Using the latest in linear servo technology and ultrasonic embedding units coupled together with vision cameras the wire embedding system is unrivalled in its speed, accuracy and the quality of antennae that it produces. Capable of working with a range of materials and wire diameters and an easy to use interface making solid wire antennas was never so easy.



Different Applications:



Ultrasonic smart-card welding machine, high-speed production specifically for contactless smart card, double circles cards, bank cards, and is a key component to improve production efficiency, mainly applies to:

(1)Smart-card metal wire, chip implants, it means welding the wires and  chips on the thin plastic plate.

(2)Smart Card PVC welding between thin cardboard.

(3)Spot welding of thin plastic, etc.



Main advantages:

  • Steady welding point, completely eradicate insufficient solder technically.
  • The size of welding spots is the same, equality line, good effect on uniformity.
  • The welding spot is small, wouldn’t increase the weight of the coil, easy to do lamination and encapsulation.
  • To leave out the immersion tin step before doing welding, save an operator.
  • After skilled in welding, much faster than the way to use searing iron to do weld.
  • On the process on manufactory, there is no waste gas, waste rubbish on pollution, runs in quiet and no noise.
  • To select the frequency 60KHz, one machine could drive 5-10 ultrasonic products, the speed to do welding is much faster.
  • Low power consumption, to save production cost for manufactory enterprise.

RFID Inlay Production in Large Format for Optimum Throughput by High Frequency 70khz Ultrasonic Embedding Technology​



High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic

High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic

High Frequency 70khz Embedding Ultrasonic Welding Machine for Plastic
