Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Impedance Range: | 1Ω~1MΩ |
| Certification: | CE Certificate | Voltage: | 220V/110V |
| Highlight: | measurement instruments,analyzer instrument |
||

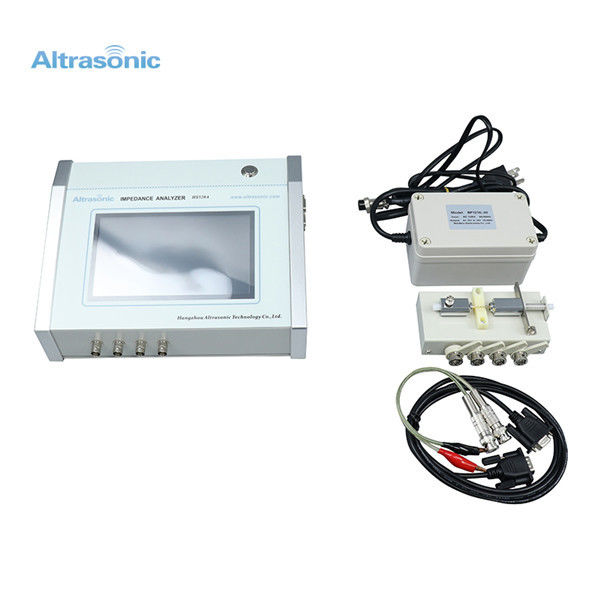

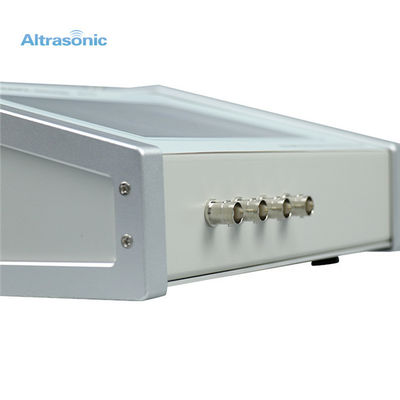

Easy Operation Ultrasonic Transducer Horn Impedance Analyzer With Full Digital Touch Screen
|
Impedance Analyzer
|
HS-520A Newest
|
|
Frequency Range
|
1KHz～500KHz
|
|
Basic Accuracy
|
< 0.5%
|
|
Scan Speed
|
5 sec/one pass (equivalent to 600 scan dots)
|
|
Frequency Accuracy
|
±10 ppm
|
|
Phase Accuracy
|
0.15 degree
|
|
Temperature Range
|
10～40 degree Celsius
|
|
Impedance Range
|
0.1Ω～1MΩ
|
|
Frequency Step
|
0.1Hz to Any
|
|
Measure Items
|
Resonance Frequency: Fs
|
|
Half Power Frequency: F1 and F2
|
|
|
Maximum real admittance at Fs: Gmax
|
|
|
Dynamic Resistance: R1
|
|
|
Anti resonance frequency: Fp
|
|
|
Mechanical quality factor: Qm
|
|
|
Free capacitance: CT
|
|
|
Dynamic inductance: L1
|
|
|
Dynamic capacitance: C1
|
|
|
Static capacitance: Co
|
|
|
electromechanical coupling coefficient: Keff and Kp
|
|
|
Maximum real impedance at Fp: Zmax
|
|
|
Measure Diagram
|
G,B-F
|
|
G-B (admittance circle coordinate)
|
|
|
R,X-F
|
|
|
R-X (impedance circle coordinate)
|
|
|
Z,phase-F
|
|
|
Y,phase-F
|
|
|
Z(Logarithm),phase-F
|
|
|
Amplification
|
piezoelectric ceramic, ultrasonic transducer, power ultrasonic,
ultrasonic weld, ultrasonic clean, ultrasonic sensor
|
|
Dimensions : 240mm*190mm*100mm
Size of LCD Screen: 8-inch screen
|
|
|
Item No.
|
HS70A
|
HS80A
|
HS520A
|
|
Frequency range
|
1KHz ~ 500KHz
|
1KHz ~ 1MHz
|
1KHz ~ 500KHz
|
|
Frequency accuracy
|
±10ppm
|
±10ppm
|
±10ppm
|
|
Impedance accuracy
|
< 1%
|
< 1%
|
< 0.5%
|
|
Impedance Range
|
0.1Ω to 1MΩ
|
0.1Ω to 1MΩ
|
0.1Ω to 1MΩ
|
|
Frequency Step
|
0.1 Hz to Any
|
0.1 Hz to Any
|
0.1 Hz to Any
|
|
Measuring speed
(equivalent 600 points scan)
|
10 sec/one pass
|
5 sec/one pass
|
5 sec/one pass
|
|
Application
|
Power Ultrasonic device
|
Piezoelectric ceramic
|
All ultrasonic products and components
|
|
Dimensions
|
350*200*150mm
|
350*200*150mm
|
240*190*100mm
|
