Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper

Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper
Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper

Large Image :  Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-CR40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: carton
Delivery Time: 5 days
Payment Terms: T/T, Western Union
Supply Ability: 200 Set per month
Contact Now

Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper

Description
Frequency: 40Khz Material: Titanium
Blade: 82MM Power: 500W
Voltage: 220V/110V Weight: 15kg
Warranty: 1 Year Generator: Digital
Advantage: Easy To Operate Application: Cutting Rubber
Highlight:

ultrasonic cutting equipment

,

ultrasonic cutting devices



Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper



Description:

In the ultrasonic cutter, the piezoelectric element generates a force that resonates the whole body, from the transducer to the blade tip, generating a large vibration at the tip. The oscillator periodically generates voltage to resonate and drive the transducer. Using a component of the ultrasonic cutter called the horn to wring the cross-sectional area, from the piezoelectric element to the blade tip, can obtain a larger vibration.


Ultrasonic cutting advantage and features:

1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.


Specification:

FREQUENCY
40Khz
POWER
500W 800W
INPUT
AC110-240V, 50/60Hz
POWER CONTROLLER
stepping or continuous
MATERIAL OF CUTTING HEAD
aluminum alloy, stainless steel, titanium alloy, alloy steel.
MACHINE WIGHT
4 kg-16KG
ACCESSORIES
foot switch, additional blade
COOLING DEVICE
compressed air mouth can be installed.
CABLE LENGTH
2M or customized
FOOT SWITCH
available


Applications:

1. For thermal plastic gate cutting and flush cutting.
2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.
6. For package material cutting
7. For the automotive industry cutting

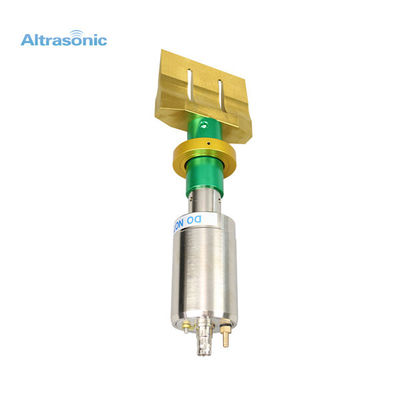

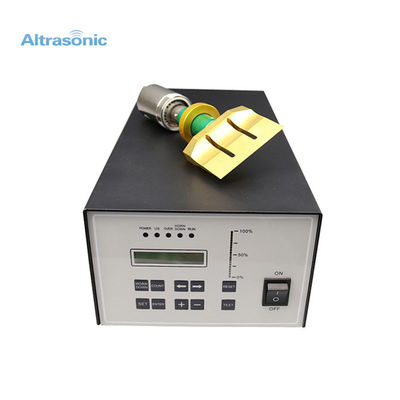

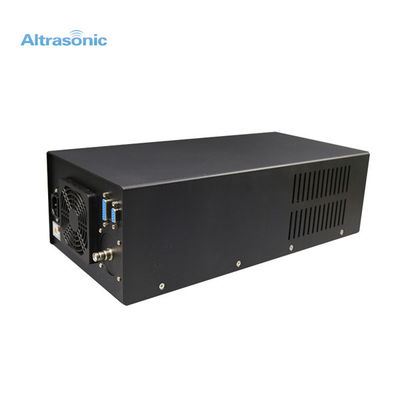

Product display

Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper 0Ultrasonic Cutting 40Khz 500W Titanium Smooth Traceless Cutting Edge Usde For Rubber Fabric Plastic Paper 1
