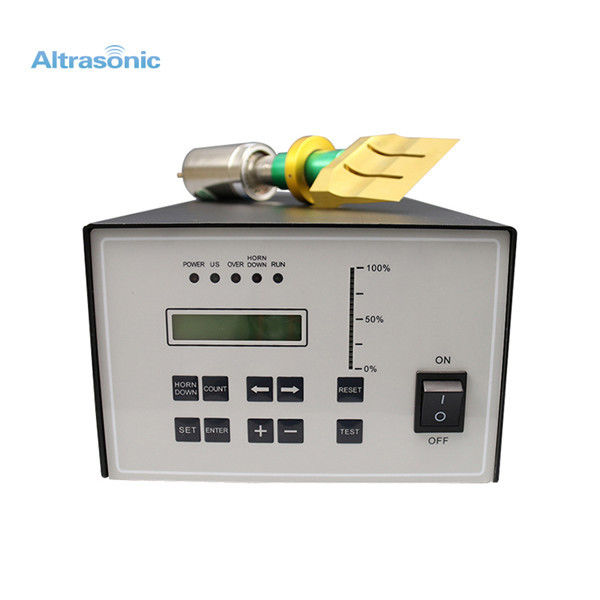

40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head

40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head
40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head 40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head

Large Image :  40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-CR40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wood case
Delivery Time: 5days
Payment Terms: T/T
Supply Ability: 200 Set per month

40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head

Description
Frequency: 40Khz Material: Titanium
Blade: 82MM Power: 500W
High Light:

ultrasonic cutting knife

,

ultrasonic cutting devices

40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head



Description:



Blade and ultrasonic trimming machines is a general purpose portable cutter which can cut material smoothly, due to ultrasonic vibration.cut prepregs faster, more efficiently and with less fiber damage than conventional cutting methods, and are thereby more cost effective through greater productivity and reduced material waste. Ultrasonic energy is trigger activated providing operators with control over cutting pressure and the duration of ultrasonic activation. Accessories for remote operation of a Sonicut system in a machine mounting are available.



Ultrasonic cutting advantage and features:



1. Cut the material quickly and precisely
2. Smooth and traceless cutting edge
3. Powerful, effective realiable
4. Low cost, easy operator. An operator only handle the probe and step the foot switch .So anybody can use it easily.





FREQUENCY

40Khz

POWER

500W 800W

INPUT

AC110-240V, 50/60Hz

POWER CONTROLLER

stepping or continuous

MATERIAL OF CUTTING HEAD

aluminum alloy, stainless steel, titanium alloy, alloy steel.

MACHINE WIGHT

4 kg-16KG

ACCESSORIES

foot switch, additional blade

COOLING DEVICE

compressed air mouth can be installed.

CABLE LENGTH

2M or customized

FOOT SWITCH

available





Applications:



1. For thermal plastic gate cutting and flush cutting.

2. For non-woven or woven cutting,textile cutting, fabric cutter, curtain cutting,window blind fabric
3. For rubber, PVC, leather plastic, cardboard, acrylic, polyprolene and so on cutting.
4. For tape and film cutting .
5. For paper cutting,printing industry cutting.

6. For package material cutting

7. For  the automotive industry cutting



40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head



40 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head 040 Khz Automatic Ultrasonic Cutting Machine With Stainless Steel Cutting Head 1
