Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment

Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment
Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment

Large Image :  Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSS17B-ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month

Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment

Description
Name: Ultrasonic Homogenizer Frequency: 20Khz
Power: 1000W Weight: 35Kg
Tip: Different Size Optional Materials: Titanium
Power Supply: Digital Mode Power Adjust: Can Be Changed From 10% To 99%
Amplitude: Can Be Changed From 10% To 99% Tuning: Auto Tuning
Capacity: 500ml - 2000ml
Highlight:

ultrasonic dispersion equipment

,

ultrasonic biodiesel reactor

Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment


Specifications:


Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy



Ultrasonic:

The principle of ultrasonic homogenizer is make the ultrasound radiate in liquid and powder mixing solution media, the liquid promptly flow produce a large number of tiny air bubbles, these tiny bubbles formed in the
negative pressure zone along the longitudinal ultrasonic radiation and grow continuously, and quickly closed in the positive pressure area.this effect is known as "cavitation" phenomenon, in this process,
closed bubbles can form thousands of instantaneous high pressure.

Automatic Tuning


All of our Ultrasonic Homogenizers models employ a propriety feedback system, insuring that the generator is always working at it maximum efficiency regardless of the application. There is no need for constant adjustment by the operator. The percentage of ultrasonic power emitted is indicated by the output LED meter, enabling accurate reproducible results.





Competitive Advantage:



  1. Custom System Designs and Consulting,
  2. Active Ultrasonics provides consulting services and custom reactor designs,
  3. High amplitude probe,
  4. Unrestricted flow-through cylindrical systems,
  5. High Power Probe Sonicator.

Applications:



  1. Disruption of cells, bacteria and tissues,
  2. Adjustment of ribosome,
  3. Cutting of actinomycetes and fungal threads,
  4. Acceleration of a chemical reaction,
  5. Extraction of special components by disruption of tissue fragments,
  6. Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.),
  7. Insatiable Pursuit of High Grade Design for More Efficient Energy Conversion can achieve a high energy conversion efficiency which generates almost no heat. A unique circuit and a structure adopted in the design to minimize the power loss can control heat generation of the converter which may disturb the oscillation effect of ultrasonic waves and have adverse influence on the sample.



WHY CHOOSE ALTRASONIC ?





  1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

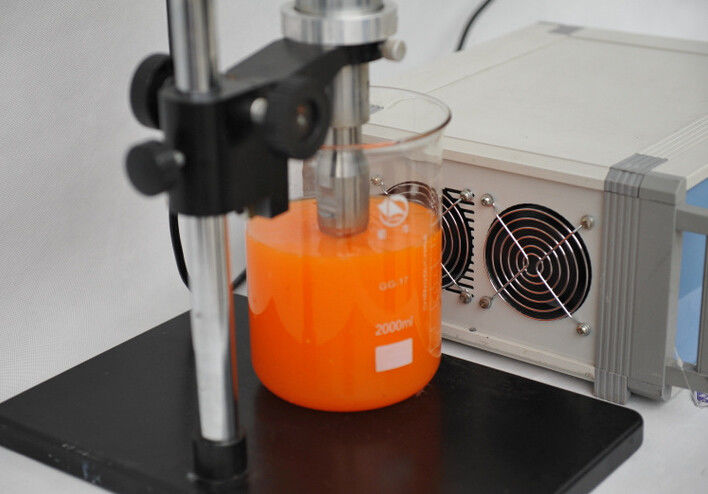

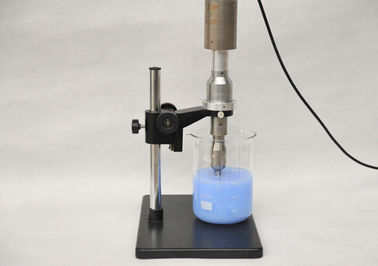

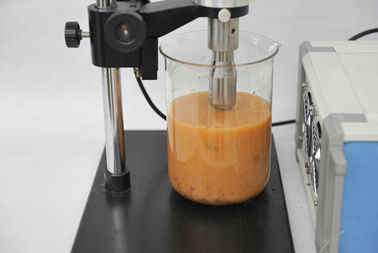

Lab light weight Ultrasonic  homogenizer For Liquid Disperse Equipment , 20khz , 2000ml volume





Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment 0



Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment 1



Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment 2



Light Weight 2000ML Ultrasonic High Pressure Homogenizer For Liquid Disperse Equipment 3
