Product Details:
|
Name: | Ultrasonic Homogenizer | Frequency: | 20Khz |
---|---|---|---|
Power: | 2000W | Weight: | 35Kg |
Tip: | Different Size Optional | Materials: | Titanium |
Power Supply: | Digital Mode | Power Adjust: | Can Be Changed From 10% To 99% |
Amplitude: | Can Be Changed From 10% To 99% | Tuning: | Auto Tuning |
Capacity: | 2000ml - 5000ml | ||
Highlight: | ultrasonic dispersion equipment,ultrasonic biodiesel reactor |

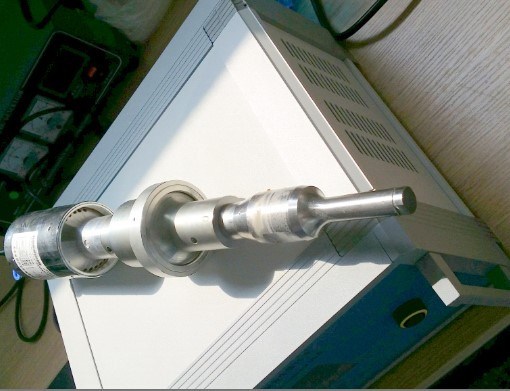

20Khz Ultrasonic Polytron Tissue Homogenizer , Mixer Homogenizer Equipment With 25Mm Tip
Specifications:
Model | HSS11B-EB | HSS17B-ZB | HSS57B-ZB | HSS59B-ZB | HSS61B-ZB |
Frequency | 40±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz | 20±1 KHz |
Power | 100 W | 1000 W | 1500 W | 2000 W | 3000 W |
Voltage | 220±10% V | 220±10% V | 220±10% V | 220±10% V | 220±10% V |
Temperature | 150 ℃ | 150 ℃ | 300 ℃ | 300 ℃ | 300 ℃ |
Pressure | Normal | Normal | 35 MPa | 35 MPa | 35 MPa |
Intensity of sound | >10 W/cm² | >10 W/cm² | >30 W/cm² | >40 W/cm² | >60 W/cm² |
Max Capacity | > 100M L/Min | > 5 L/Min | > 15 L/Min | > 20 L/Min | > 30 L/Min |
Material Of Tip Head | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy | Titanium Alloy |
Ultrasonic:
The principle of ultrasonic homogenizer is make the ultrasound radiate in liquid and powder mixing solution media, the liquid promptly flow produce a large number of tiny air bubbles, these tiny bubbles formed in the
negative pressure zone along the longitudinal ultrasonic radiation and grow continuously, and quickly closed in the positive pressure area.this effect is known as "cavitation" phenomenon, in this process,
closed bubbles can form thousands of instantaneous high pressure.
Automatic Tuning
All of our Ultrasonic Homogenizers models employ a propriety feedback system, insuring that the generator is always working at it maximum efficiency regardless of the application. There is no need for constant adjustment by the operator. The percentage of ultrasonic power emitted is indicated by the output LED meter, enabling accurate reproducible results.
Competitive Advantage:
Applications:
Disruption of cells, bacteria and tissues,
WHY CHOOSE ALTRASONIC ?
20khz high power laboratory auto-tuning Ultrasonic homogenizer with capacity 5000ml , 25mm tip
