Product Details:
|
| Frequency: | 30khz | Voltage: | 220V / 110V |
|---|---|---|---|
| Length Of Cable: | 3M | Power: | 500W |
| Handle: | Φ44×220 | Color: | Black |
| Generator Type: | Digital | Warranty: | 1 Year |
| High Light: | High Efficiency Ultrasonic Cutter,Ultrasonic Cutter 500w,Ultrasonic Cutter 30khz |
||

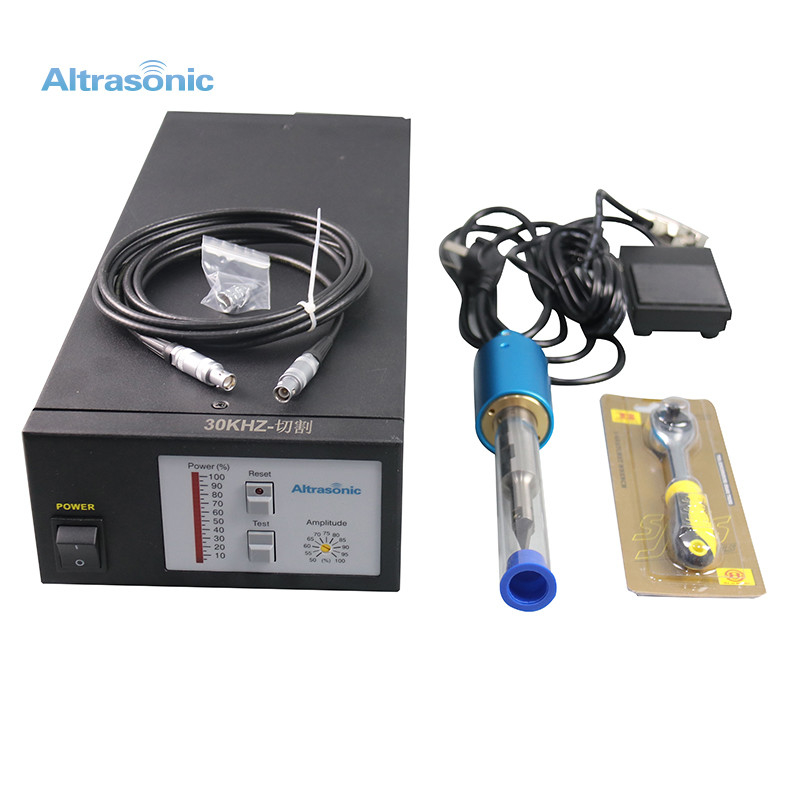

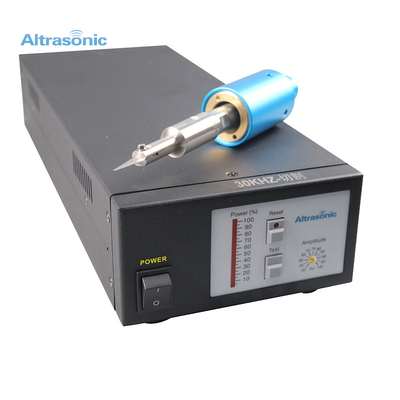

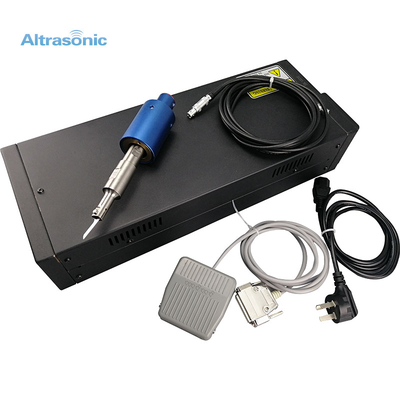

30khz 500w High Efficiency Ultrasonic Cutter
Specification:
| Model | HS-C30 |
| Frequency | 30KHZ |
| Output Power | 500W |
| Generator | Digital generator, 452 x 180 x 100mm |
| Handle | Φ44×220 |
| Size of cutter | Blade replaceable |
| Length of cable | 3M |
| Outer skin | Aluminum |
| Weight | 8KG |
| Voltage | 220V / 110V |
| Accessory | Foot switch 1pc；Cut blade 2pcs； 1.5mm special hex wrench 1pc；Screw M3×4L 2pcs |
| Material of blade | steel |
Ultrasonic cutting machine is a kind of equipment that uses ultrasonic energy for cutting and processing. Its major feature is that it does not require cutting edges. In other words, the cutting edge in the traditional sense is not used. Traditional cutting uses a knife with a sharp edge to press against the material to be cut. This pressure is concentrated at the cutting edge, and the pressure is very large, exceeding the shear strength of the material to be cut, and the molecular bonds of the material are pulled apart and cut. Since the material is pulled apart by strong pressure and rigidity, the cutting edge of the cutting tool should be very sharp, and the material itself has to bear relatively large pressure. The cutting efficiency of soft and elastic materials is not high.
Application range:
①Raw rubber cutting
②Pipe cutting
③Frozen meat
④Candy
⑤Chocolate cutting
⑥Jewelry
⑦Plastic products processing
⑧Automotive industry
……
Highlight:
①500W ultrasonic cutting equipment
②High efficiency ultrasonic cutting equipment
