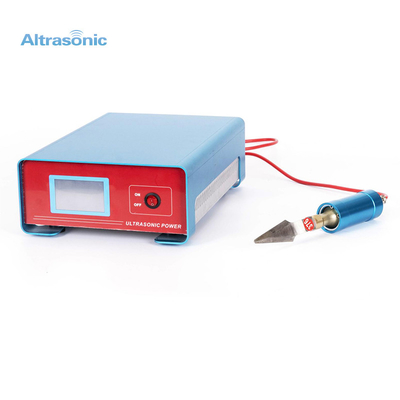

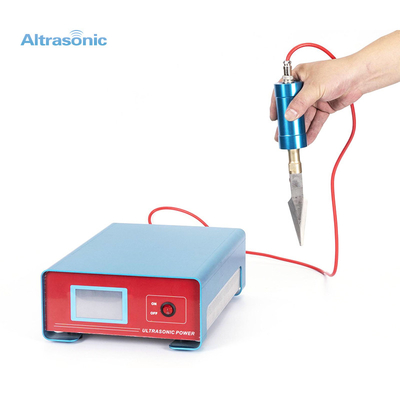

300W Ultrasonic Cutter 24kHz For Plastics Leather PP PVC TPU

24kHz Ultrasonic Cutter Cutting Machine Leather Plasctic PP PVC TPU

Description:

Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting,ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning,wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.

Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.


Typical materials processed:

• Aramid Prepreg
• Boron Prepreg
• Carbon Phenolic Prepreg
• Fiberglass Prepreg
• Graphite Prepreg
• Hybrid Prepreg
• Thermoplastic Prepreg
• Unidirectional Tape
• Aluminum Core Cured/Uncured Rubber
• Foam Core Sealant
• Nomex Core
• Phenolic Core
• Woven Fabric
• Braided Materials

The difference between traditional cutting and ultrasonic cutting:

Ultrasonic cutting machine is the use of wave energy for cutting equipment, the main t feature is not to use the traditional edge.
The traditional cutting utilizes a tool with a sharp edge to press the cutting material. The pressure is concentrated at the edge of the blade, the pressure is very large, more than the shear strength of the cutting material , then the material is cut open. As the material is cut by a strong pressure, so the cutting tool edge should be very sharp and the material itself has to bear the relatively large pressure. Therefore the cutting effect for the soft, flexible material is not good, especially more difficult for sticky material.

Competitive Advantage

• Environment-friendly (No noise, no smoke, no air contamination)
• Smooth cutting of difficult-to-cut materials
• Small hand-held size(can be attached to automotive machinery arms)
• No special installation equipment
• The use of high power ultrasonic transducer vibrating element, ensure the long time stable working
• The cutting speed is improved greatly, the efficiency 10 times higher than the traditional cutting knife.
• Cutting all kinds of ordinary tool to cut products, solve production problems
• Can be installed high hardness blade, cutting blade can be replaced, greatly reducing the use cost
• Cutting tool complete varieties, can also be customized according to customer process shaped cutting tool
• Installation, easy to use, almost does not change the original cutting process
• Can be used in the production of circular ultrasonic tool cutting equipment, rolling cutting, suitable for cutting special
• Can use air-cooling, water-cooling design, adapt to various working conditions and environment
