PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use

PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use
PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use

Large Image :  PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PC
Payment & Shipping Terms:
Minimum Order Quantity: 20 units
Price: Negotiation
Packaging Details: Inside: foam box packaging; Outside: carton, wooden case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 350000 units per month

PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use

Description
Name: Piezoelectric Ceramic Materials Frenquency: 20-150Khz
Shipping: TNT DHL UPS FEDEX Color: Yellow
Warranty: 1 Year Usage: Low Frequency Atomizer
High Light:

PZT8 Piezoelectric Ceramic Materials

,

PZT4 Piezoelectric Ceramic Materials

,

PZT5 Piezoelectric Ceramic Materials

PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use



Description:

Piezoelectric Ceramic Materials are a kind of information functional ceramic material piezoelectric effect, which can convert mechanical energy and electrical energy into each other. Piezoelectric ceramics not only have piezoelectric, but also have dielectric and elasticity. They have been widely used in medical imaging, acoustic sensors, acoustic transducers, ultrasonic motors and so on.



Products Sizes Resonant Frequency (MHz) ResonantImpedance(R) Capacitance (pF) Dielectric dissipation factor tgδ(Kt) Fog output(ml/h) Life time(Hour)
High frequency atomizer 16-1.7BU 1.70±0.05 ≤3 1000±20% ≥0.45 250 5000
High frequency atomizer 16-2.4BU 2.45±0.1 ≤2 750±20% ≥0.45 200 3000
High frequency atomizer 16-3BU 3.0±0.2 ≤3 900±20% ≥0.45 100 3000
High frequency atomizer 20-1.7BU 1.70±0.05 ≤3 1500±20% ≥0.45 300 5000
High frequency atomizer 20-2.4BU 2.45±0.1 ≤2 1450±20% ≥0.45 250 5000
High frequency atomizer 20-3BU 3.0±0.2 ≤1 1600±20% ≥0.45 250 5000
High frequency atomizer 25-1.7BU 1.66±0.05 ≤3 1700±20% ≥0.45 400 5000
High frequency atomizer 25-2.4BU 2.4±0.1 ≤1 1800±20% ≥0.45 400 5000




Products Sizes Resonant Frequency (MHz) ResonantImpedance(R) Capacitance (pF) Input Voltage(VDC) Rated Power (W) Max output Power (W)
Low frequency atomizer 16-108K 108±6KHz ≤350 3100±25% 3~12 1.3~2.2 2
Low frequency atomizer 16-115k 115±5KHz ≤350 3000±25% 3~12 1.3~1.8 2



Pictures:

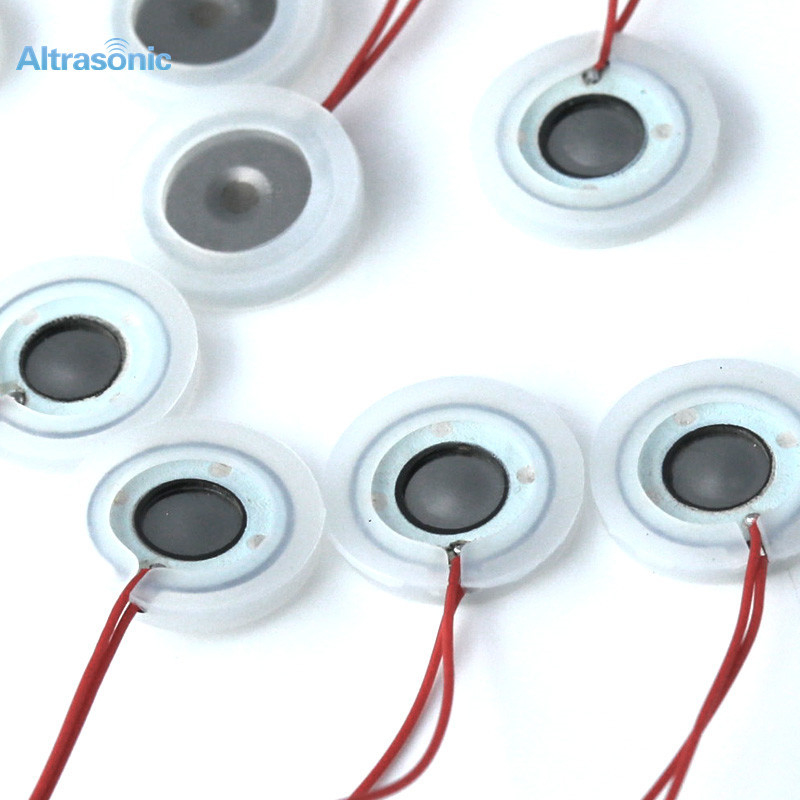

PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use 0

PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use 1PZT4 PZT5 PZT8 Piezoelectric Ceramic Materials Low Frequency Atomizer Use 2





Product Advantages:

1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay




FAQ:


Q: Do you have it in stock?

A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.

Q: Could you advise to us the design based on our special requirements or based on our object samples?

A: Of course, Our mission is make your idea show in the products itself.

Q: How long do you make the order product?

A: Our main mark is fast shipment, usually 3-7days after all details confirmed.

Q: . Do you have operating manual?

A: Of course, we will put it with the goods together. Also we will upload video in youtube and inform you the related link.

Q: How about the quality?

A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc

Q: Could you do OEM?

A: Yes, of course.Everybody like OEM,We cherish the OEM VIP buyer like you,We can produce according customers’ requirement,just send us your requirements and design of drawing and sample

Q: Could we as your agent?

A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.

Q: Terms of Payment

A: We have flexible and active payment if order huge.

Q: What custom requirements can you accept?

A: LOGO, product appearance, tool head size, packaging requirements, special customized requirements will be accepted, etc.
