Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | Doppler Effect Ultrasonic Ceramics,150Khz Ultrasonic Ceramics,20Khz Ultrasonic Ceramics |
||
Ultrasonic Ceramics Doppler Fetal Heart Rate Monitoring
Description:
The Doppler effect is an important physical phenomenon of ultrasound. When continuous wave ultrasound is emitted, the Doppler effect occurs when there is relative motion between the sound source and the measured object. When the moving target moves toward the sound source, the wavelength of the reflected wave is compressed, so the frequency increases; on the contrary, when the target moves away from the sound source, the wavelength of the reflected wave becomes longer, so the frequency decreases in unit time.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.
| Products | Sizes | Resonant Frequency (MHz) | ResonantImpedance(R) | Capacitance (pF) | Dielectric dissipation factor tgδ(Kt) |
| Fetal Doppler Monitor Ceramic | MR-20*10-2.5BY | 2600-3100 | 2.5±0.05 | 0.85±0.01 (0.84-0.87) |
|
| Fetal Doppler Monitor Ceramic | MR-25*12.5-2.5BY | 3100-4100 | 2.5±0.05 | 0.94±0.01 (0.92-0.95) |
≥0.3 |

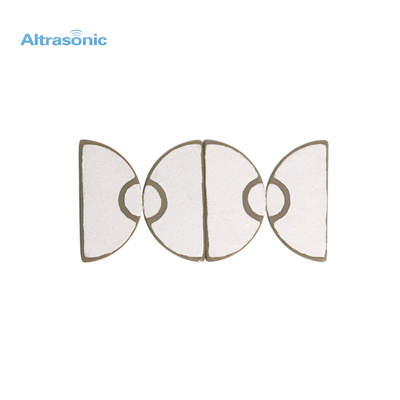

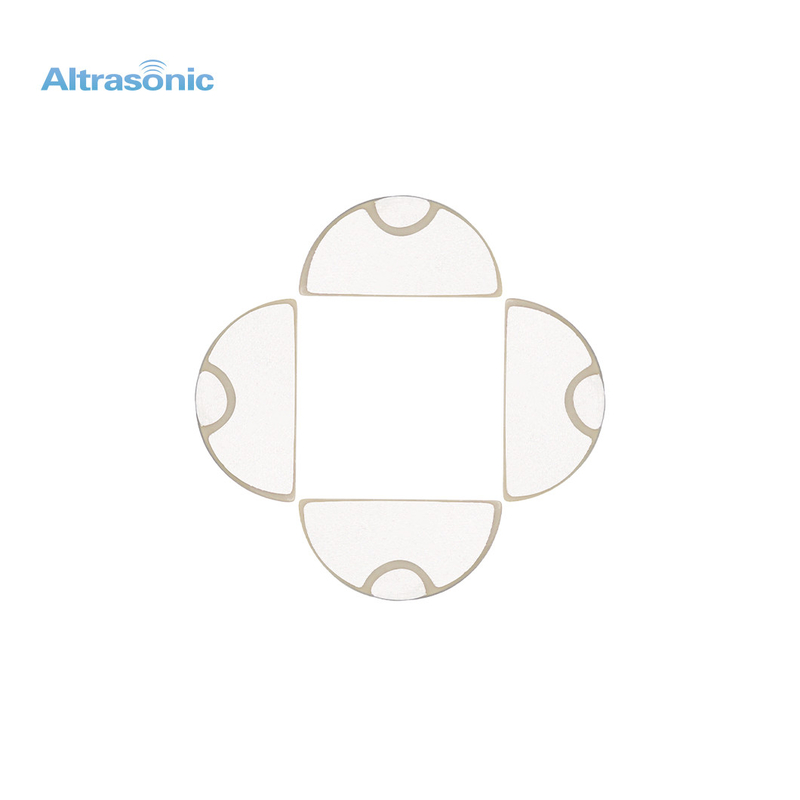

Pictures:
Product Advantages:
1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
