Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | 60W Ceramic Chip,50W Ceramic Chip,Ultrasonic Washing Machine Ceramic Chip |
||

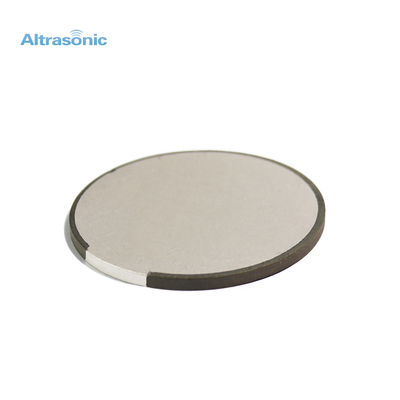

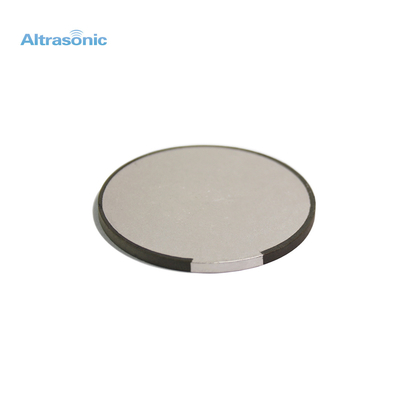

40Khz 30Khz 60W 50W PZT3 PZT4 PZT8 Ceramic Chip For Ultrasonic Welding Washing Machines
Description:
Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.
Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
Sepcification:
| Material | Sizes(MM) OD*ID*Thickness | Capacitance (pF) | Frequency (kHz) |
Dielectric dissipation factor tgδ(%) | Coupling factor Kp (%) | Qm |
| P83 Ring | φ25*13*4 | 800 | 60.6 | 0.3 | 60 | 800 |
| φ25*13*5 | 650 | 60 | 0.1 | 60 | 800 | |
| φ30*13*5 | 1100 | 53 | 0.12 | 60 | 800 | |
| φ38*15*6 | 1600 | 44.5 | 0.12 | 60 | 800 | |
| φ38*15*6.5 | 1450 | 44.5 | 0.12 | 60 | 800 | |
| φ45*15*5.5 | 2100 | 42 | 0.12 | 60 | 800 | |
| φ45*17*6.5 | 2000 | 37 | 0.12 | 60 | 800 | |
| φ50*17*5 | 3500 | 35.6 | 0.12 | 60 | 800 | |
| φ50*17*6.5 | 2750 | 35.2 | 0.12 | 60 | 800 | |
| φ50*20*6 | 2700 | 33.9 | 0.12 | 60 | 800 | |
| φ50*20*6.5 | 2500 | 33.7 | 0.12 | 60 | 800 | |
| φ55*26*5 | 3600 | 28 | 0.12 | 60 | 800 | |
| φ55*26*7.5 | 2400 | 28 | 0.1 | 60 | 800 | |
| φ60*30*7 | 2900 | 25 | 0.12 | 60 | 800 | |
| φ60*30*10 | 2090 | 25.8 | 0.12 | 60 | 800 |
Product Advantages:
Package:
Related products:
FAQ:
Q1: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q2: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q3: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q4: . Do you have operating manual? A: Of course, we will put it with the goods together. Also we will upload video in YouTube and inform you the related link.
Q5: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q6: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q7: Free samples?
A: The sample is free if the size is normal one for us
