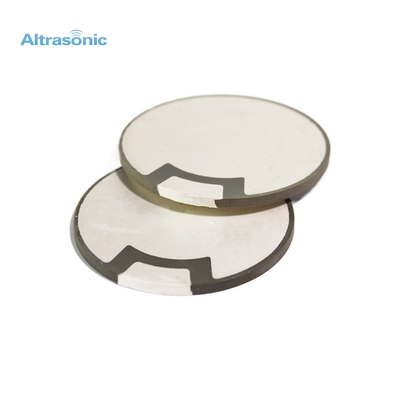

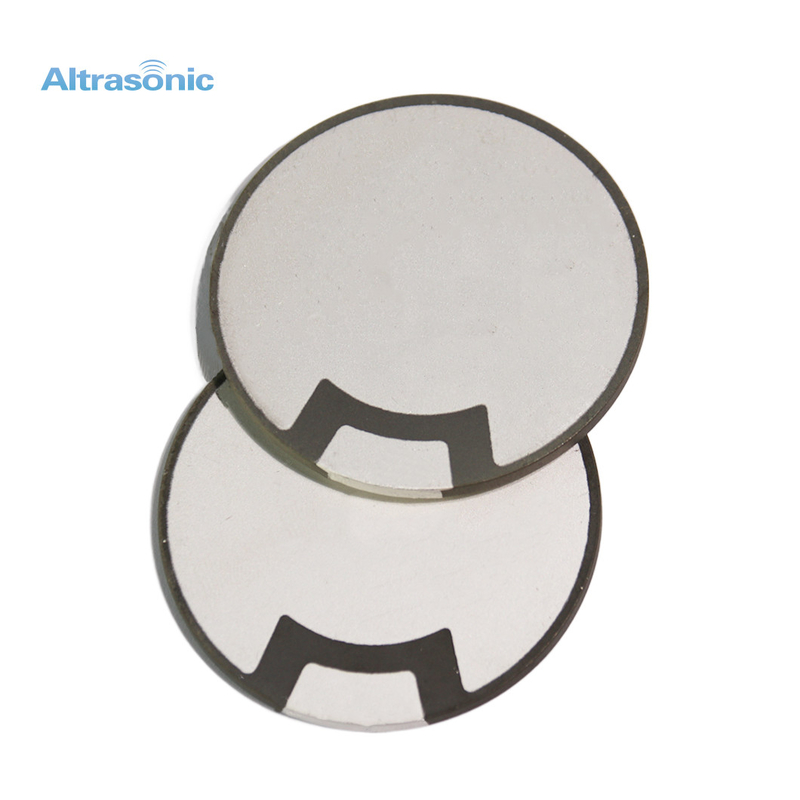

Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency

Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency
Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency

Large Image :  Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-PC
Payment & Shipping Terms:
Minimum Order Quantity: 20 units
Price: Negotiation
Packaging Details: Inside: foam box packaging; Outside: carton, wooden case
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 350000 units per month

Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency

Description
Frenquency: 20-150Khz Shipping: TNT DHL UPS FEDEX
Color: Yellow Warranty: 1 Year
Function: Cleaning MOQ: 1 Pcs
High Light:

42Khz Ceramic Sheet

,

Ultrasonic Ceramic Sheet

,

Ultrasonic Cleaning Equipments Ceramic Sheet

42Khz Frequency Ultrasound Washing Cleaning Equipments Ultrasonic Ceramic Sheet Cycle Material



Description:



Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.



Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.



Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.





Sepcification:



Material Sizes(MM) OD*ID*Thickness Capacitance (pF) Frequency
(kHz)
Dielectric dissipation factor tgδ(%) Coupling factor Kp (%) Qm
P31 Ceramic Rings φ15*6X2 1080 92 0.4 60 80
P43 Ceramic Rings φ4*φ2*2.5 45 347 0.3 60 1000
φ10*φ5*2 350 145 0.3 60 1000
φ20*φ10*5 1000 50.9 0.3 60 1000
φ25*φ10*5 1000 62.5 0.3 60 1000
φ25*φ9.5*5 1000 60 0.37 60 1000
φ25*φ10*3 1600 61 0.3 60 1000
φ25*φ9.5*3 1650 61.8 0.3 60 1000
φ25*φ10*3 1600 60 0.3 60 1000
φ30*φ12*5 1400 51 0.31 60 1000
φ30*φ12*4.5 1350 53.5 0.32 60 1000
φ30*φ8*5 1550 56.5 0.35 60 1000
φ32*φ9.5*6
φ35*φ15*5 1905 43.6 0.3 60 1000
φ35*φ15*5.5 1760 42 0.36 60 1000
φ36*φ10*4.5 2537 47.5 0.34 60 1000
φ38*φ15*5 2370 40.7 0.3 60 1000
φ38*φ15*6 2000 41 0.35 60 1000
φ38*φ13*6.35 1900 43 0.32 60 1000
φ38*φ15*6.35 1870 40.8 0.3 60 1000
φ45*φ15*5 3500 37.5 0.42 60 1000
φ45*φ15*6.35
φ50*φ17*5 4400 32 0.32 60 1000
φ50*φ17*6.5 3300 32.8 0.3 60 1000
φ50*φ20*3
φ50*φ20*6 3400 32 0.3 60 1800
φ50*φ20*6.5 3200 32 0.3 60 1800
φ50*φ20*7 2900 31 0.3 60 1000
φ60*φ30*10 2500 23.8 0.3 60 1000
φ65*φ30*10 3000 22.7 0.3 60 1000







Ultrasound Washing Cleaning Equipments Ceramic Sheet 42Khz Frequency 0





Product Advantages:



1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
