Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| Function: | Cleaning | MOQ: | 1 Pcs |
| High Light: | Ultrasonic Cleaner Piezo Ceramic,Ceramic Chip 60W,Ultrasonic Cleaner Piezo Chip |
||

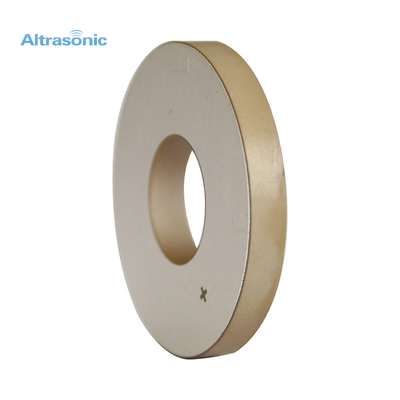

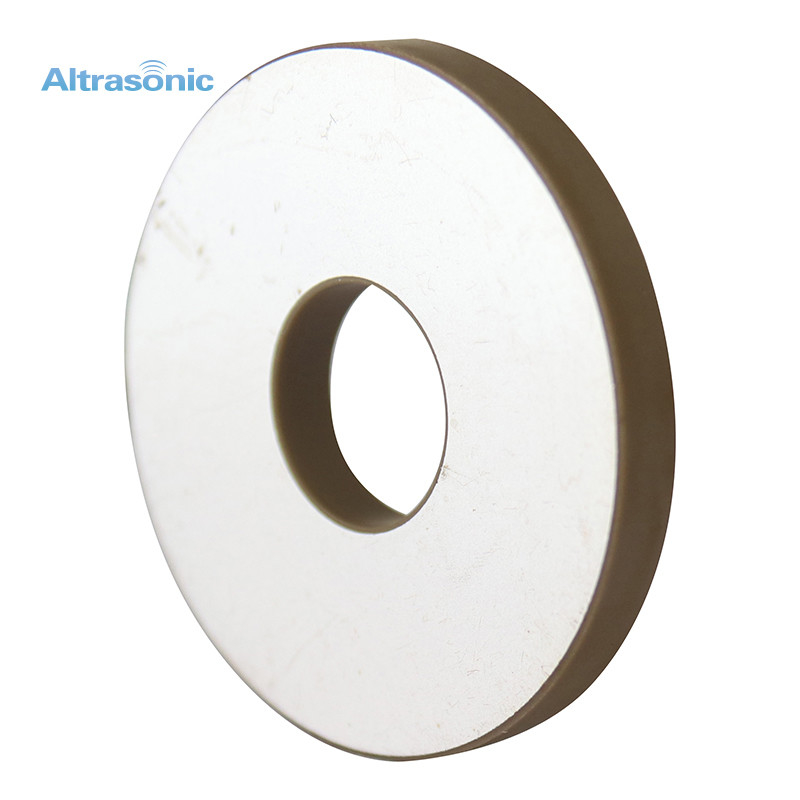

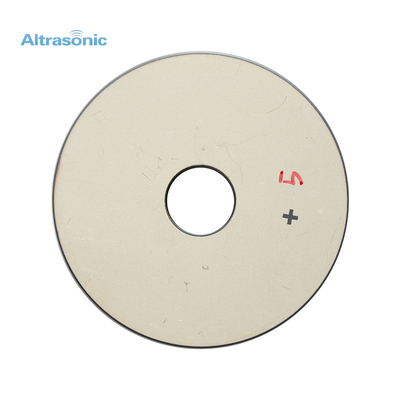

φ38*φ15*5 Piezo Ceramic Chip Transducer For Ultrasonic Cleaner 60W 40Khz
Description:
Piezoelectric ceramics is a general term for ferroelectric ceramics with piezoelectric effect made by polarizing the polycrystals of mixed oxides (zirconia, lead oxide, titanium oxide, etc.), high temperature sintering and solid reaction.
Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.
| Diameter Sizes(MM) | Frequency(Khz) | Shape | Material |
| 10-80 | 20-150 | Ring,Tube, Rectangle,Squre, Plate | PZT4/5/8 |
As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment, etc.
Sepcification:
| Material | Sizes(MM) OD*ID*Thickness | Capacitance (pF) | Frequency (kHz) |
Dielectric dissipation factor tgδ(%) | Coupling factor Kp (%) | Qm |
| P31 Ceramic Rings | φ15*6X2 | 1080 | 92 | 0.4 | 60 | 80 |
| P43 Ceramic Rings | φ4*φ2*2.5 | 45 | 347 | 0.3 | 60 | 1000 |
| φ10*φ5*2 | 350 | 145 | 0.3 | 60 | 1000 | |
| φ20*φ10*5 | 1000 | 50.9 | 0.3 | 60 | 1000 | |
| φ25*φ10*5 | 1000 | 62.5 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*5 | 1000 | 60 | 0.37 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 61 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*3 | 1650 | 61.8 | 0.3 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 60 | 0.3 | 60 | 1000 | |
| φ30*φ12*5 | 1400 | 51 | 0.31 | 60 | 1000 | |
| φ30*φ12*4.5 | 1350 | 53.5 | 0.32 | 60 | 1000 | |
| φ30*φ8*5 | 1550 | 56.5 | 0.35 | 60 | 1000 | |
| φ32*φ9.5*6 | ||||||
| φ35*φ15*5 | 1905 | 43.6 | 0.3 | 60 | 1000 | |
| φ35*φ15*5.5 | 1760 | 42 | 0.36 | 60 | 1000 | |
| φ36*φ10*4.5 | 2537 | 47.5 | 0.34 | 60 | 1000 | |
| φ38*φ15*5 | 2370 | 40.7 | 0.3 | 60 | 1000 | |
| φ38*φ15*6 | 2000 | 41 | 0.35 | 60 | 1000 | |
| φ38*φ13*6.35 | 1900 | 43 | 0.32 | 60 | 1000 | |
| φ38*φ15*6.35 | 1870 | 40.8 | 0.3 | 60 | 1000 | |
| φ45*φ15*5 | 3500 | 37.5 | 0.42 | 60 | 1000 | |
| φ45*φ15*6.35 | ||||||
| φ50*φ17*5 | 4400 | 32 | 0.32 | 60 | 1000 | |
| φ50*φ17*6.5 | 3300 | 32.8 | 0.3 | 60 | 1000 | |
| φ50*φ20*3 | ||||||
| φ50*φ20*6 | 3400 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*6.5 | 3200 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*7 | 2900 | 31 | 0.3 | 60 | 1000 | |
| φ60*φ30*10 | 2500 | 23.8 | 0.3 | 60 | 1000 | |
| φ65*φ30*10 | 3000 | 22.7 | 0.3 | 60 | 1000 |
Product Advantages:
Package:
Related products:
FAQ:
Q1: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q2: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q3: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q4: . Do you have operating manual? A: Of course, we will put it with the goods together. Also we will upload video in YouTube and inform you the related link.
Q5: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q6: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q7: Free samples?
A: The sample is free if the size is normal one for us
