Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | 1.7MHz Piezo Ceramic Disk,Electric Piezo Ceramic Disk,2.4MHz Piezo Electric Disk |
||
Oscillation Frequency 1.7MHz /2.4MHz Piezo Electric Disk Ceramic For Ultrasonic Atomizer
Description:
The ultrasonic atomizer uses electronic high-frequency oscillation (the oscillation frequency is 1.7MHz or 2.4MHz, which is beyond the range of human hearing, and the electronic oscillation is absolutely harmless to the human body and animals). The molecular structure is broken up to produce a natural and elegant water mist, without heating or adding any chemical reagents.
| Products | Sizes | Resonant Frequency (MHz) | ResonantImpedance(R) | Capacitance (pF) | Dielectric dissipation factor tgδ(Kt) | Fog output(ml/h) | Life time(Hour) |
| High frequency atomizer | 16-1.7BU | 1.70±0.05 | ≤3 | 1000±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 16-2.4BU | 2.45±0.1 | ≤2 | 750±20% | ≥0.45 | 200 | 3000 |
| High frequency atomizer | 16-3BU | 3.0±0.2 | ≤3 | 900±20% | ≥0.45 | 100 | 3000 |
| High frequency atomizer | 20-1.7BU | 1.70±0.05 | ≤3 | 1500±20% | ≥0.45 | 300 | 5000 |
| High frequency atomizer | 20-2.4BU | 2.45±0.1 | ≤2 | 1450±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 20-3BU | 3.0±0.2 | ≤1 | 1600±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 25-1.7BU | 1.66±0.05 | ≤3 | 1700±20% | ≥0.45 | 400 | 5000 |
| High frequency atomizer | 25-2.4BU | 2.4±0.1 | ≤1 | 1800±20% | ≥0.45 | 400 | 5000 |

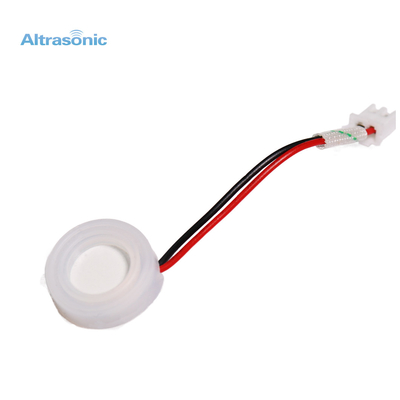

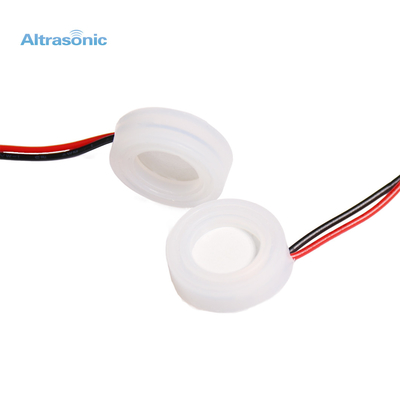

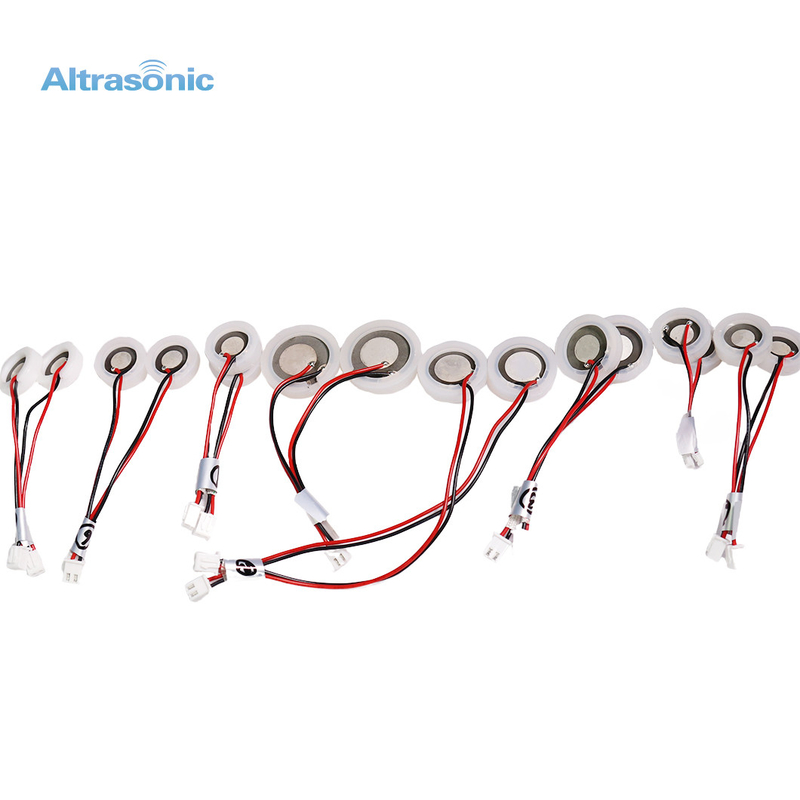

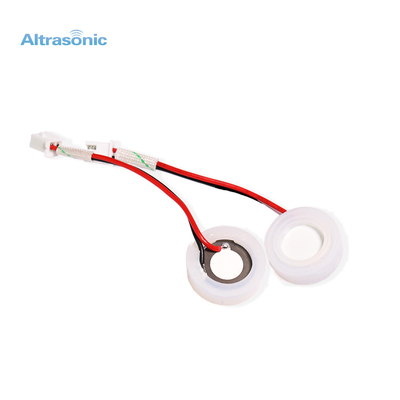

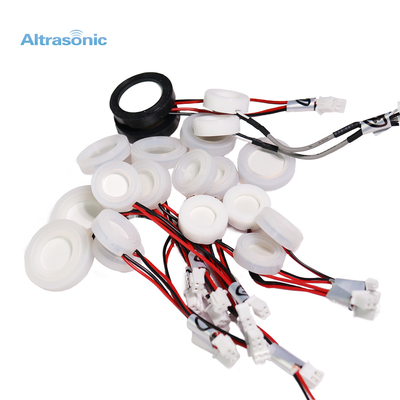

Pictures:
Product Advantages:
1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
Package:
