Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | piezo ceramic disc,pzt ceramic |
||

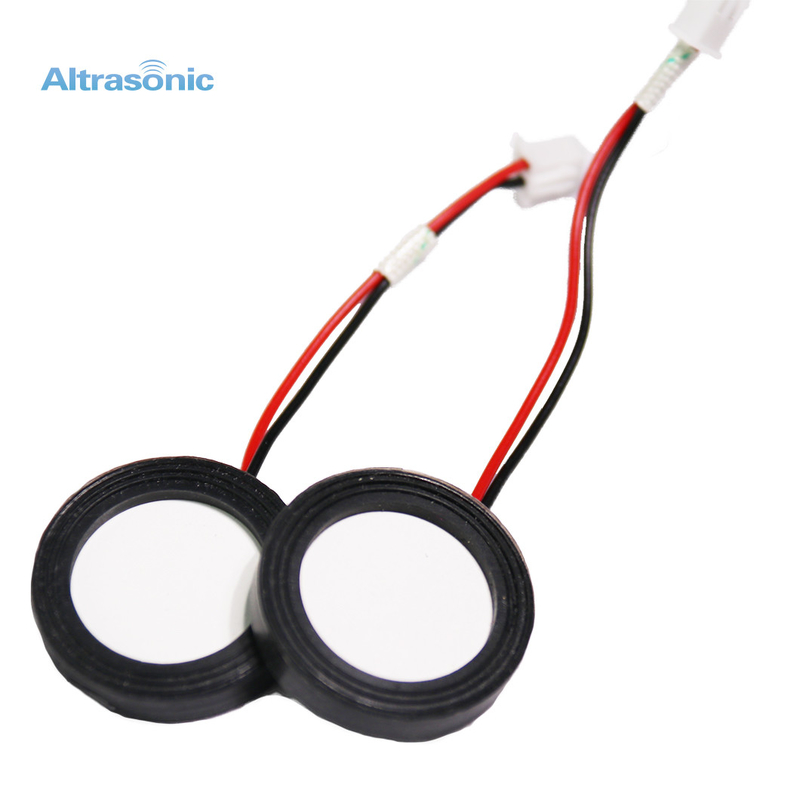

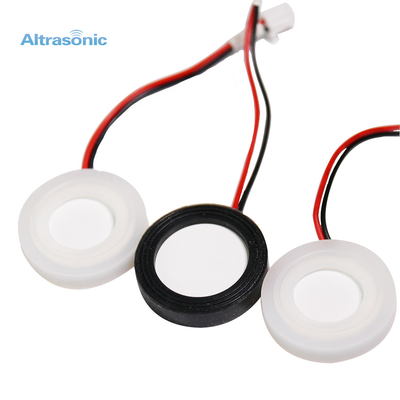

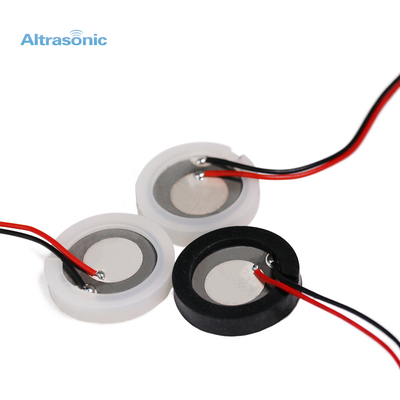

Good Consistency Low Frequency Atomizer 25MM Diameter Ceramic Sheet Disk
Description:
Piezoelectric ceramics have good mechanical properties and stable piezoelectric properties. As an important force, heat, electricity and light sensitive functional materials, they have been widely used in sensors, ultrasonic transducers, ultrasonic welding equipment, ultrasonic cutting equipment, Ultrasonic cleaning equipment,Atomization. etc.
Piezoelectric ceramic materials: PZT4/5/8, etc., we can also customize according to the specific needs of customers.
| Products | Sizes | Resonant Frequency (MHz) | ResonantImpedance(R) | Capacitance (pF) | Dielectric dissipation factor tgδ(Kt) | Fog output(ml/h) | Life time(Hour) |
| High frequency atomizer | 16-1.7BU | 1.70±0.05 | ≤3 | 1000±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 16-2.4BU | 2.45±0.1 | ≤2 | 750±20% | ≥0.45 | 200 | 3000 |
| High frequency atomizer | 16-3BU | 3.0±0.2 | ≤3 | 900±20% | ≥0.45 | 100 | 3000 |
| High frequency atomizer | 20-1.7BU | 1.70±0.05 | ≤3 | 1500±20% | ≥0.45 | 300 | 5000 |
| High frequency atomizer | 20-2.4BU | 2.45±0.1 | ≤2 | 1450±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 20-3BU | 3.0±0.2 | ≤1 | 1600±20% | ≥0.45 | 250 | 5000 |
| High frequency atomizer | 25-1.7BU | 1.66±0.05 | ≤3 | 1700±20% | ≥0.45 | 400 | 5000 |
| High frequency atomizer | 25-2.4BU | 2.4±0.1 | ≤1 | 1800±20% | ≥0.45 | 400 | 5000 |
| Products | Sizes | Resonant Frequency (MHz) | ResonantImpedance(R) | Capacitance (pF) | Input Voltage(VDC) | Rated Power (W) | Max output Power (W) |
| Low frequency atomizer | 16-108K | 108±6KHz | ≤350 | 3100±25% | 3~12 | 1.3~2.2 | 2 |
| Low frequency atomizer | 16-115k | 115±5KHz | ≤350 | 3000±25% | 3~12 | 1.3~1.8 | 2 |
Pictures:
Product Advantages:
1. The high Q value
2. Small impedance
3. High amplitude
4. Good consistency
5. Slow Performance decay
