Product Details:
|
| Frenquency: | 20-150Khz | Shipping: | TNT DHL UPS FEDEX |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| High Light: | Piezoelectric Ceramic PZT4,Piezoelectric Ceramic PZT5,Piezoelectric Ceramic PZT8 |
||

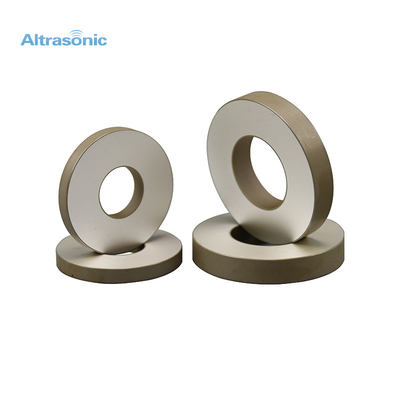

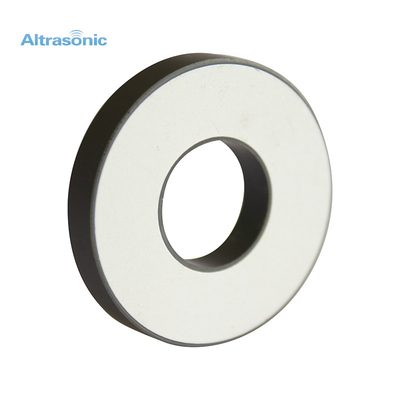

Kinds Of Size Ultrasonic Piezoelectric Ceramic PZT4 PZT5 PZT8 Material Transducer
Description:
Piezoelectric ceramics is an information functional ceramic material that can convert mechanical energy and electrical energy to each other - piezoelectric effect. In addition to piezoelectricity, piezoelectric ceramics also have dielectric properties, elasticity, etc., and have been widely used in medical imaging, Acoustic sensors, acoustic transducers, ultrasonic motors, etc. Piezoelectric ceramics are made by using the material under the action of mechanical stress to cause the relative displacement of the internal positive and negative charge centers to cause polarization, resulting in the appearance of bound charges with opposite signs on the surfaces of the material, that is, piezoelectric effect. Ceramics are mainly used in the manufacture of ultrasonic transducers, underwater acoustic transducers, electroacoustic transducers, ceramic filters, ceramic transformers, ceramic frequency discriminators, high voltage generators, infrared detectors, surface acoustic wave devices, electro-optical devices, In addition to being used in high-tech fields, ignition and detonation devices and piezoelectric gyroscopes are more used in daily life to serve people and strive to create a better life for people.
| Diameter Sizes(MM) | Frequency(Khz) | Shape | Material |
| 10-80 | 20-150 | Ring,Tube, Rectangle,Squre, Plate | PZT4/5/8 |
Sepcification:
| Material | Sizes(MM) OD*ID*Thickness | Capacitance (pF) | Frequency (kHz) |
Dielectric dissipation factor tgδ(%) | Coupling factor Kp (%) | Qm |
| P31 Ceramic Rings | φ15*6X2 | 1080 | 92 | 0.4 | 60 | 80 |
| P43 Ceramic Rings | φ4*φ2*2.5 | 45 | 347 | 0.3 | 60 | 1000 |
| φ10*φ5*2 | 350 | 145 | 0.3 | 60 | 1000 | |
| φ20*φ10*5 | 1000 | 50.9 | 0.3 | 60 | 1000 | |
| φ25*φ10*5 | 1000 | 62.5 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*5 | 1000 | 60 | 0.37 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 61 | 0.3 | 60 | 1000 | |
| φ25*φ9.5*3 | 1650 | 61.8 | 0.3 | 60 | 1000 | |
| φ25*φ10*3 | 1600 | 60 | 0.3 | 60 | 1000 | |
| φ30*φ12*5 | 1400 | 51 | 0.31 | 60 | 1000 | |
| φ30*φ12*4.5 | 1350 | 53.5 | 0.32 | 60 | 1000 | |
| φ30*φ8*5 | 1550 | 56.5 | 0.35 | 60 | 1000 | |
| φ32*φ9.5*6 | ||||||
| φ35*φ15*5 | 1905 | 43.6 | 0.3 | 60 | 1000 | |
| φ35*φ15*5.5 | 1760 | 42 | 0.36 | 60 | 1000 | |
| φ36*φ10*4.5 | 2537 | 47.5 | 0.34 | 60 | 1000 | |
| φ38*φ15*5 | 2370 | 40.7 | 0.3 | 60 | 1000 | |
| φ38*φ15*6 | 2000 | 41 | 0.35 | 60 | 1000 | |
| φ38*φ13*6.35 | 1900 | 43 | 0.32 | 60 | 1000 | |
| φ38*φ15*6.35 | 1870 | 40.8 | 0.3 | 60 | 1000 | |
| φ45*φ15*5 | 3500 | 37.5 | 0.42 | 60 | 1000 | |
| φ45*φ15*6.35 | ||||||
| φ50*φ17*5 | 4400 | 32 | 0.32 | 60 | 1000 | |
| φ50*φ17*6.5 | 3300 | 32.8 | 0.3 | 60 | 1000 | |
| φ50*φ20*3 | ||||||
| φ50*φ20*6 | 3400 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*6.5 | 3200 | 32 | 0.3 | 60 | 1800 | |
| φ50*φ20*7 | 2900 | 31 | 0.3 | 60 | 1000 | |
| φ60*φ30*10 | 2500 | 23.8 | 0.3 | 60 | 1000 | |
| φ65*φ30*10 | 3000 | 22.7 | 0.3 | 60 | 1000 |
Product Advantages:
Low calorific value
High vibration efficiency
High Mechanical Q; Good Stable; Low Heat; High Sensitivity
Related products:

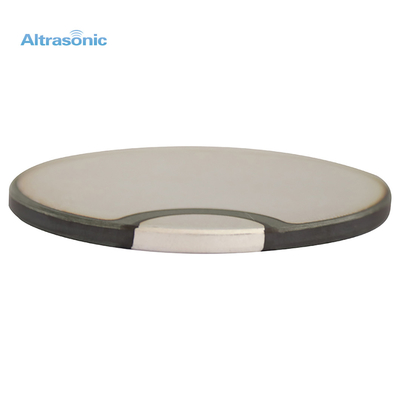

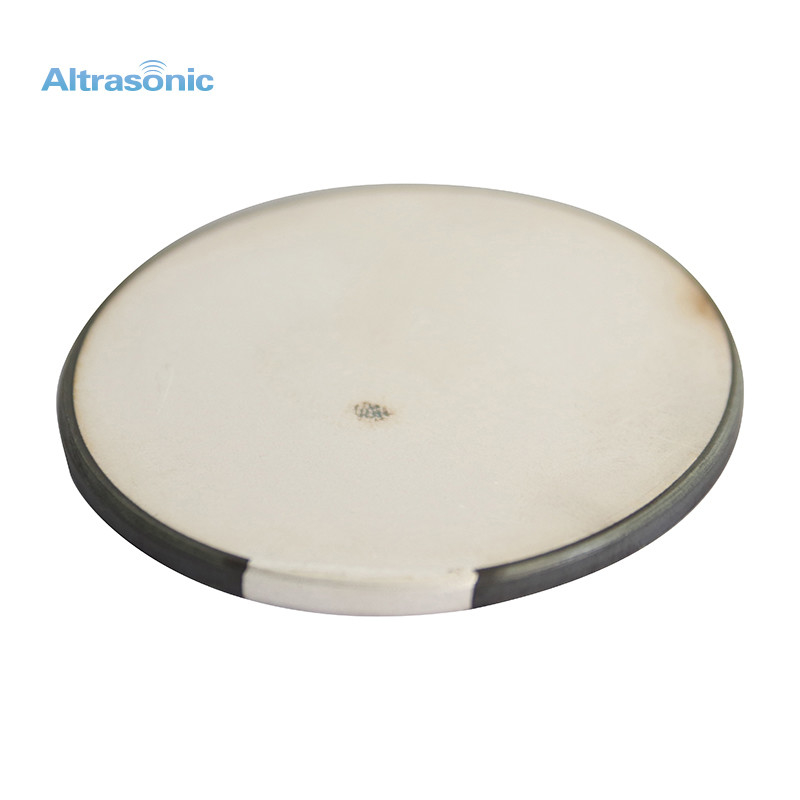

Piezoelectric DIsc; Piezoelectric Tube; Piezoelectric Ring; Piezoelectric Square; Piezoelectric Rectangle
FAQ:
Q1: Do you have it in stock?
A: Most of product available, if you have special requirement, pls feel free contact us, all issue can be solved through communication.
Q2: Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, Our mission is make your idea show in the products itself.
Q3: How long do you make the order product?
A: Our main mark is fast shipment, usually 3-7days after all details confirmed.
Q4: . Do you have operating manual? A: Of course, we will put it with the goods together. Also we will upload video in YouTube and inform you the related link.
Q5: How about the quality?
A: We have export to many other customers from all over the world,the feed back is good,quality is the first for our factory, our main markets is USA and European etc
Q6: Could we as your agent?
A: Of course.We are looking for sole agent in some Country who have the willing to cooperate with us for long business term.
Q7: Free samples?
A: The sample is free if the size is normal one for us
