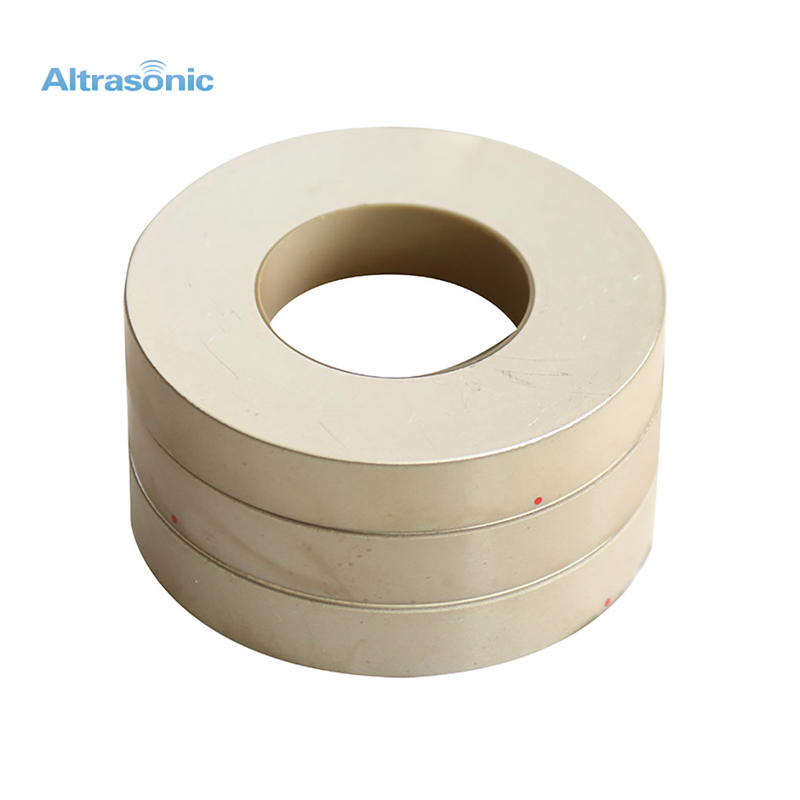

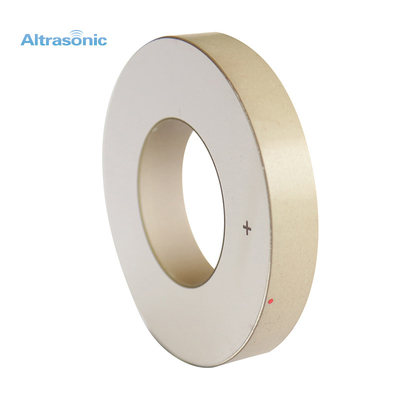

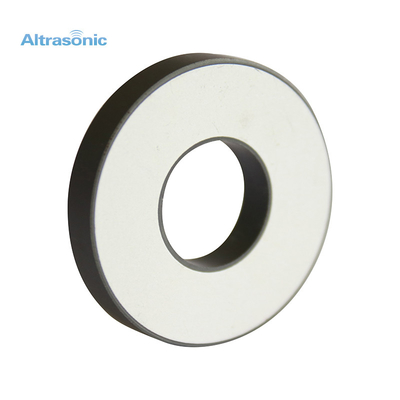

Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer

Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer
Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer

Large Image :  Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-OC
Payment & Shipping Terms:
Minimum Order Quantity: 20 units
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 350000 units per month
Contact Now

Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer

Description
Product Name: Piezo Ceramic Ring Color: Yellow
Warranty: 1 Year Frenquency: 20kHz
Highlight:

ultrasonic ceramic chip

,

piezoelectric ceramic chip





Piezoelectric Ceramic Ring For 20kHz Ultrasonic Welding Transducer



Description:



Ultrasonic Welding Transducer Piezoelectric ceramics are the preferred choice for making ultrasonic transducers because of their high physical strength, chemical inertness and relatively cheap manufacturing costs. Piezoelectric ceramics can be used to make items such as ultrasonic transducers, ceramic capacitors, sensors and actuators.



Specification:



Sizes(MM) Frequency(Khz) Capacitance(±12.5%)pF Tanδ(%) Kr QM
50*17*5 34.8 3160 ≤0.3 ≥0.55 800
50*20*6 33.5 2490 ≤0.3 ≥0.46 800
50*17*6.5 34.8 3280 ≤0.3 ≥0.55 800
50*23*6 32.1 2340 ≤0.3 ≥0.46 800
50*27*6 29 2100 ≤0.3 ≥0.47 800



Advantages:



1. High stability

2. Low impedance

3. Low dielectric loss

4. High amplitude

5. High temperature resistance
