500W 62mm Ultrasonic Atomizer Machine 15kHz Power

500W 62mm Ultrasonic Atomizer Machine 15kHz Power
500W 62mm Ultrasonic Atomizer Machine 15kHz Power 500W 62mm Ultrasonic Atomizer Machine 15kHz Power 500W 62mm Ultrasonic Atomizer Machine 15kHz Power

Large Image :  500W 62mm Ultrasonic Atomizer Machine 15kHz Power

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: BV
Model Number: HS-N15
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per year

500W 62mm Ultrasonic Atomizer Machine 15kHz Power

Description
Product Name: High Pressure Atomizer Ultrasonic Nozzle Spray For Chemical Mixing 150 L/H 62μm Frequency: 15Khz
Atomization Volume: 150L/H Average Particle Diameter Of Fog: 62um
Power: 500W Atomization Head Structure: Horn
Origin: China Material: Plastic Or Stainless Steel
High Light:

500W Ultrasonic Atomizer Machine

,

15kHz Ultrasonic Atomization Fog Machine

15kHz 62mm Good Effect Ultrasonic Atomizer Atomized Particle Diameter Machine



Specifications:



Model

HS-N60

HS-N50A

HS-N50B

HS-N50C

HS-N40

HS-N30

HS-N20

HS-N15

Frequency

60KHz

50KHz

50KHz

50KHz

40KHz

30KHz

20 KHz

15 KHz

Atomization Volume

0.5L/H

2 L/H

2 L/H

2 L/H

10 L/H

70 L/H

100 L/H

150 L/H

Average Particle  Diameter of Fog

20um

28um

28um

28um

32um

39um

51um

62um

Power Consumption

0.01 Degrees/Kg

0.001 Degrees/Kg

Atomization Head  Structure

Cylindrical

Horn

Power

30W

30 W

30 W

30 W

60 W

100 W

300 W

500 W

The Application of  Atomizing Media

Ordinary water, a variety of liquid substances, chemical liquid,

 a variety of oil mucus, metal melt and so on



Description:



Ultrasonic atomization uses electronic high-frequency oscillation (the oscillation frequency is 1.7MHz or 2.4MHz, which is beyond the range of human hearing, and the electronic oscillation is absolutely harmless to humans and animals). The molecular bonds between the molecules are broken up to produce a natural and elegant water mist without heating or adding any chemical reagents.



Applications:



The ultrasonic atomizer adopts a high-efficiency integrated circuit, a unique structure design of ultra-small integration, and high-quality atomizing tablets are used for important parts.



Wide range of uses for humidifiers, incense burners, beauty machines, disinfection machines, bathtub fog machines, bonsai, and handicrafts.



Competitive Advantage:



1. Reduce material consumption and overspray by up to 80%


2. Highly controllable spray pattern for reliable, consistent results


3. Corrosion Resistant Construction


4. Ultra low flow capability


5. Low maintenance anti-clogging design


6. Reduce downtime in critical manufacturing processes


7. High reliability with no moving parts


8. Controlling atomized droplet size by selecting nozzle frequency


9. Tight droplet distribution optimizes desired coating morphology


10. Manufactured from high-performance titanium and stainless steel.



Picture:

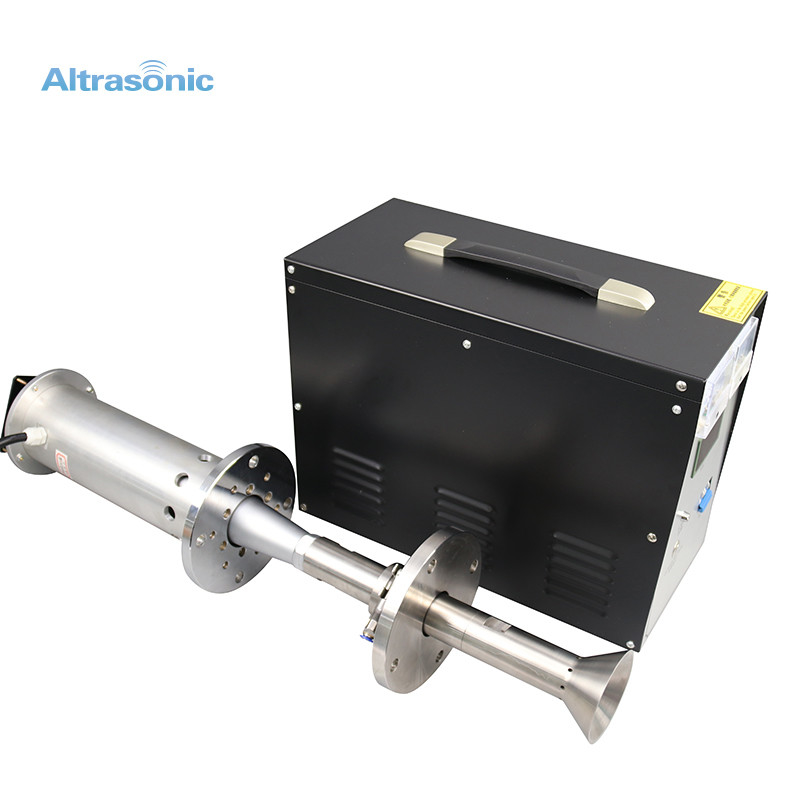

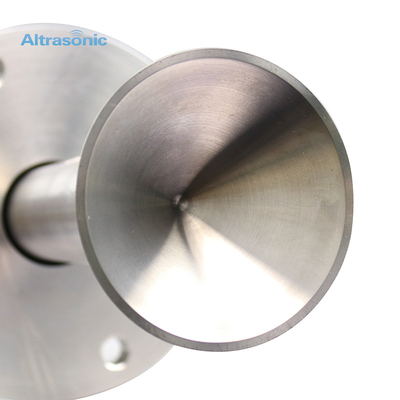

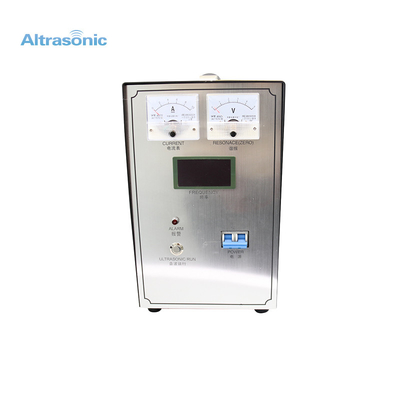

500W 62mm Ultrasonic Atomizer Machine 15kHz Power 0



500W 62mm Ultrasonic Atomizer Machine 15kHz Power 1
