Product Details:
|
| Power: | 3000W | Frequency: | 20kHz |
|---|---|---|---|
| Generator: | 20V/50Hz | Cotrol: | CPU Control,automatic Scanning/tracking |

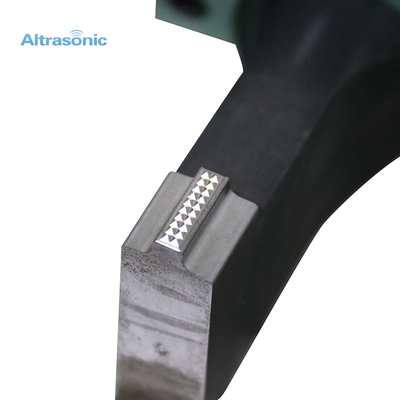

| Components: | Digital Generator, Transducer, Booster, Welding Horn | Materials Of Horn: | Special Steel |
| High Light: | 3000 Watt Ultrasonic Metal Welding Machine,CPU Control Ultrasonic Spot Welder,3000W Ultrasonic Spot Welder |
||

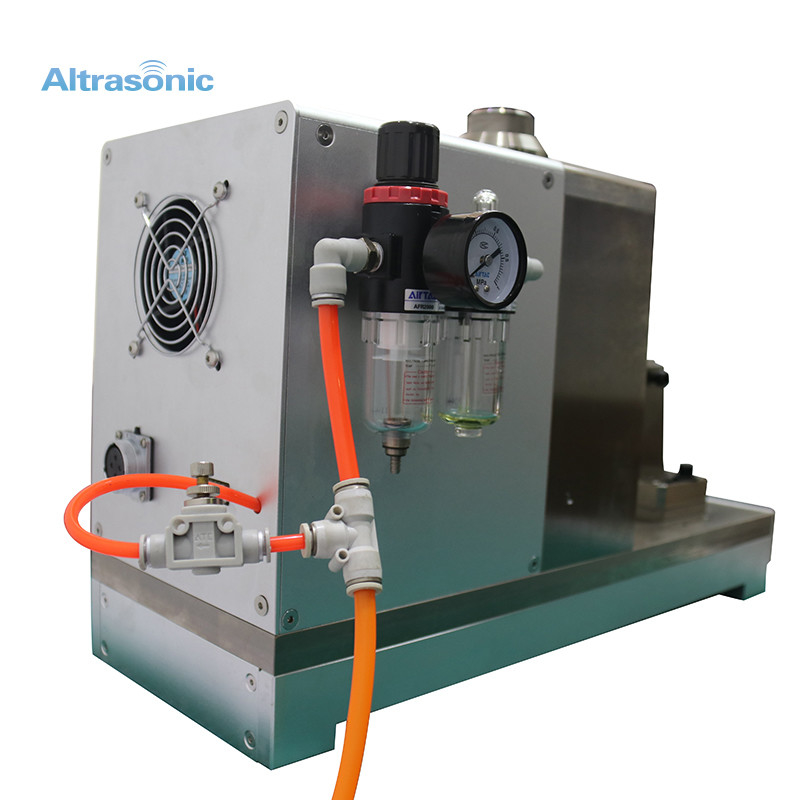

2030 Ultrasonic Metal Welding Machine Ultrasonic Spot Welder Equipment
20 KHz Ultrasonic Metal Welding Machine Ultrasonic Spot Welder Equipment
Description:
Ultrasonic spot welding is where plastics are subjected to binding at certain points without the need of a specific joint design.It is commonly used to apply sturdy structural welding points in multiple parts, such as extruded sheets or plastic parts of complex shapes.
Ideal for welding nonferrous metals, Altrasonic ultrasonic metal welding systems meet the production demands of consumer brands and OEMs in the automotive, HVAC and electronics industries. The energy efficient-processes eliminate the need for added materials or contaminants such as flux agents, solder, solvents or crimp connectors, reducing materials costs.
With extensive materials testing and a global network of labs, our metal welding uses the latest technology to generate stable bonds that can withstand harsh conditions.
Specification:
|
Model
|
HS-2030-D
|
HS-2050-D
|
|
Power
|
3000W
|
5000W
|
|

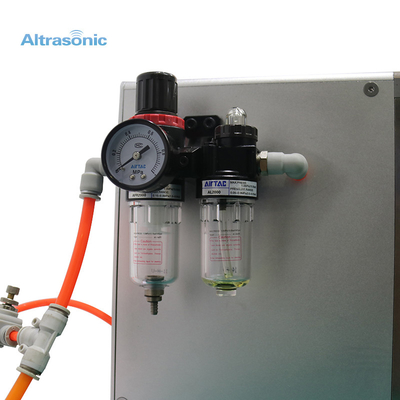

Working air pressure
|
0.05-0.9MPa
|
0.05-0.9MPa
|
|
Frequency
|
20kHz
|
20kHz
|
|
Voltage
|
220V
|
380V
|
|
Weight
|
60KGs
|
88KGs
|
|
Working head Size
|
550*280*430mm
|
550*380*660mm
|
|
Machine Size
|
540*380*150mm
|
540*380*150mm
|
Application:
Characteristic:
● Adopts automatic control technology to make welding operation easy and simple
● The ultrasonic system is stable and reliable
● An ideal production equipment for welding similar or different conductive alloys and non-ferrous metals of different thicknesses
● Ultrasonic solar metal welding machine DC motor stepless speed regulation, welding direction can be easily set through the panel
● Simple mechanism and easy to install
Why choose our metal welding machine:
● Welding materials do not melt, do not destroy metal properties
● After welding, electric conduction, good thermal conductivity, low or almost zero resistance coefficient
● Low requirements for welding metal surface, oxidation or electroplating can be welded
● Short soldering time, no flux, gas, solder required
● It is easy to realize the connection and automatic control between different metals welding, no spark, environmental protection and safety
