3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid

3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid
3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid 3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid 3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid

Large Image :  3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Set per month

3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid

Description
Frequency: 20Khz Power: 2000w
Generator: Digital Generator Input Voltage: 3800V/16A
Control: CPU Control,automatic Scanning/tracking Components: Digital Generator, Transducer, Booster, Welding Horn
High Light:

3000W Ultrasonic Metal Welder

,

20khz Ultrasonic Metal Welder

,

Copper Lugs Ultrasonic Harness Welder

3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid



Specification:



Model Operating Frequency Operating Pressure Suitable Wire size Power Operating mode Dimension Weight
HS-2032JX-AT 20KHZ 1kgf/cm2-6.0kgf/cm2 5-25mm2 380v/16A Manual 900*600*110 45kgs
HS-2020JX-AT 35KHZ 1kgf/cm2-6.0kgf/cm2 1-12mm2 220v/10A Manual 200*550*250 35kgs




Description:



The advantages of ultrasonic wiring harness welding are high-speed, energy saving, high fusion strength, good conductivity, no spark and close to cold working. The disadvantages of ultrasonic wiring harness welding are metallic parts can’t be too thick(generally less than or equal to 5mm ), the welding bit can’t be too big and need to be pressuriz



Advantages:



1. No need for any flux, gas, or solder;
2. Stable welding process, online inspection and control;
3. Short welding time, greatly improved efficiency, fast and energy-saving;
4. Welding without sparks, smoke and dust, environmental protection and safety;
5. Non-melting and non-fragile conductor characteristics of welding materials;
6. High fusion strength, excellent electrical conductivity after welding, and extremely low or almost zero electrical resistance.



Principle of Ultrasonic Metal Welding:



Ultrasonic metal welding uses high-frequency vibration waves to transmit to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers.

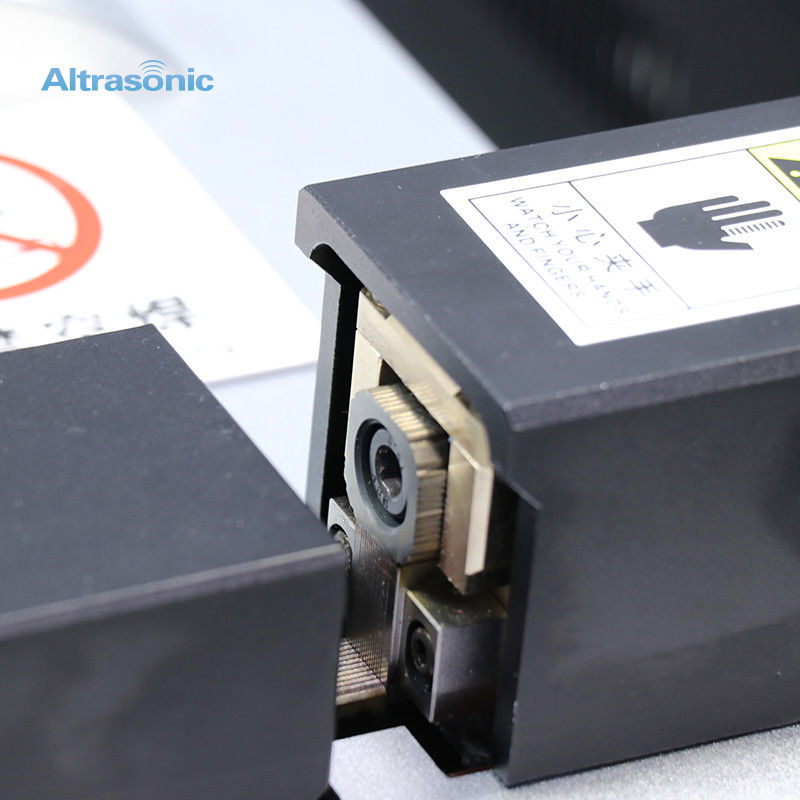

3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid 0

Detailed pictures:

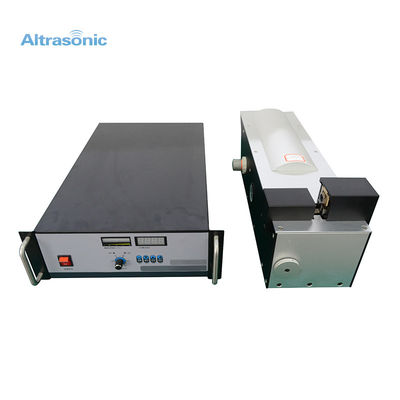

3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid 1

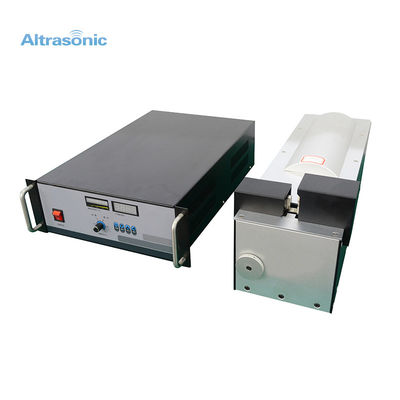

3000W 20khz Ultrasonic Metal Welder For Copper Lugs To Copper Braid 2
