Product Details:
|
| Prduct Name: | 30KHz Ultrasonic Atomizer Machine | Frequency: | 30 |
|---|---|---|---|
| Atomizing Volume: | 50L/H | Dia. Average Particle: | 39um |
| Power: | 100W | ||
| High Light: | Trumpet Type Ultrasonic Atomization Machine,30khz Ultrasonic Atomization Machine |
||

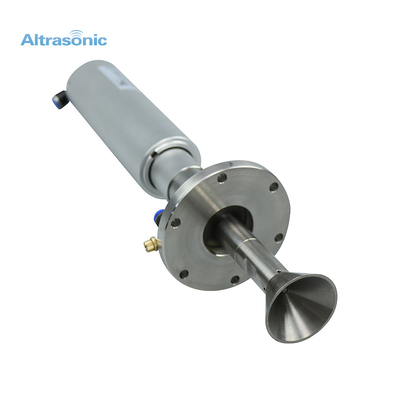

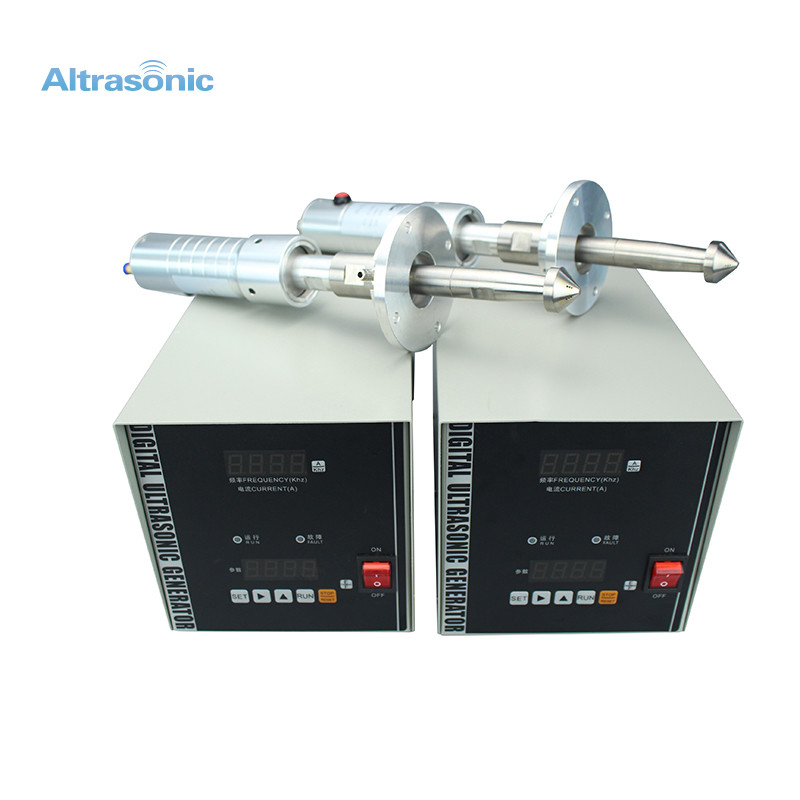

30khz Trumpt Type Ultrasonic Atomization Equipment for High Precise Coating Industry
Description:
Ultrasonic spraying is a unique spraying technology, which is a spraying method based on ultrasonic atomizing nozzle technology. The material to be sprayed is first in a liquid state, and the liquid can be solution, sol, suspension, etc. The liquid coating is first atomized into fine particles by an ultrasonic atomizing device, and then uniformly coated on the surface of the substrate by a certain amount of carrier gas. , thereby forming a coating or film. Compared with traditional pneumatic two-fluid spraying, ultrasonic atomizing spraying can achieve better uniformity, thinner coating thickness and higher precision. At the same time, since the ultrasonic nozzle can be atomized without air pressure assistance, the use of ultrasonic spraying can significantly reduce the splash of paint during the spraying process and achieve the purpose of saving paint. The paint utilization rate of ultrasonic spraying is 4 times that of traditional two-fluid spraying. above.
Applications:
Ultrasonic atomization spraying systems are now used in many fields, especially in the fields of alternative energy and nanomaterials, glass industry, medical treatment, printed circuit boards, semiconductors, etc. Such as:
1. Ultrasonic fuel cell catalyst coating system
2. Thin film & perovskite solar cell coating system
3. Carbon nanotubes, nanowires and other nanomaterial coating systems
4. Thin film functional glass coating system
5. Hard coating and other thin film protective glass coating systems
Specification:
Frequency:30KHz
Power:100W
Atomization Speed:Max:50L/H
Power Consumption:0.01 Degrees/Kg
Atomization Volume:39um

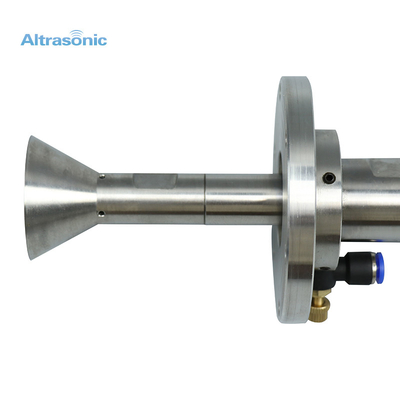

Spray Nozzle Shape:Long nozzle
Atomization Head Structure:Umbrella
Competitive Advantage:
★ A major breakthrough in spray technology, you can spray a variety of liquids.
★ Low power consumption, the fog of great energy saving.
★ No plug, no abrasion, no noise, no pressure, no moving parts.
★ Can be any combination to meet the requirements of the spray volume.
★ The use of high-performance titanium and stainless steel.
