Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency

Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency
Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency

Large Image :  Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-N30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: carton
Delivery Time: 10 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 300 units per month

Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency

Description
Frequency: 30khz Power: 100w
Power Consumption: 0.01 Degrees/Kg Atomizing Volume: 50L/H
Atomization Volume: 39um Spray Nozzle Shape: Long Nozzle
High Light:

Ultrasonic Nebulizer For Spraying

,

No Abrasion Ultrasonic Nebulizer

,

Ultrasonic Nebulizer 30khz

Ultrasonic Nebulizer For Spraying No Abrasion HS-N30khz High Efficiency Stable Atomizer



Description:



Ultrasonic spraying is a unique spraying technology, which is a spraying method based on ultrasonic atomizing nozzle technology. The material to be sprayed is first in a liquid state, and the liquid can be solution, sol, suspension, etc. The liquid coating is first atomized into fine particles by an ultrasonic atomizing device, and then uniformly coated on the surface of the substrate by a certain amount of carrier gas. , thereby forming a coating or film. Compared with traditional pneumatic two-fluid spraying, ultrasonic atomizing spraying can achieve better uniformity, thinner coating thickness and higher precision. At the same time, since the ultrasonic nozzle can be atomized without air pressure assistance, the use of ultrasonic spraying can significantly reduce the splash of paint during the spraying process and achieve the purpose of saving paint. The paint utilization rate of ultrasonic spraying is 4 times that of traditional two-fluid spraying. above.



Applications:



Ultrasonic atomization spraying systems are now used in many fields, especially in the fields of alternative energy and nanomaterials, glass industry, medical treatment, printed circuit boards, semiconductors, etc. Such as:
1. Ultrasonic fuel cell catalyst coating system
2. Thin film & perovskite solar cell coating system
3. Carbon nanotubes, nanowires and other nanomaterial coating systems
4. Thin film functional glass coating system
5. Hard coating and other thin film protective glass coating systems



Specification:



Frequency: 30KHz

Power: 100W

Atomization Speed:Max: 50L/H

Power Consumption: 0.01 Degrees/Kg

Atomization Volume: 39um

Spray Nozzle Shape: Long nozzle

Atomization Head Structure: Umbrella



Advantages:



1. A major breakthrough in spray technology, you can spray a variety of liquids.

2. Low power consumption, the fog of great energy saving.

3. No plug, no abrasion, no noise, no pressure, no moving parts.

4. Can be any combination to meet the requirements of the spray volume.

5. The use of high-performance titanium and stainless steel.

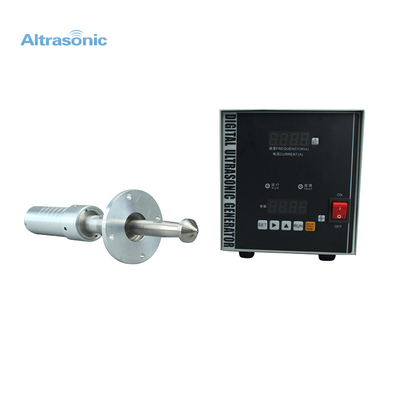

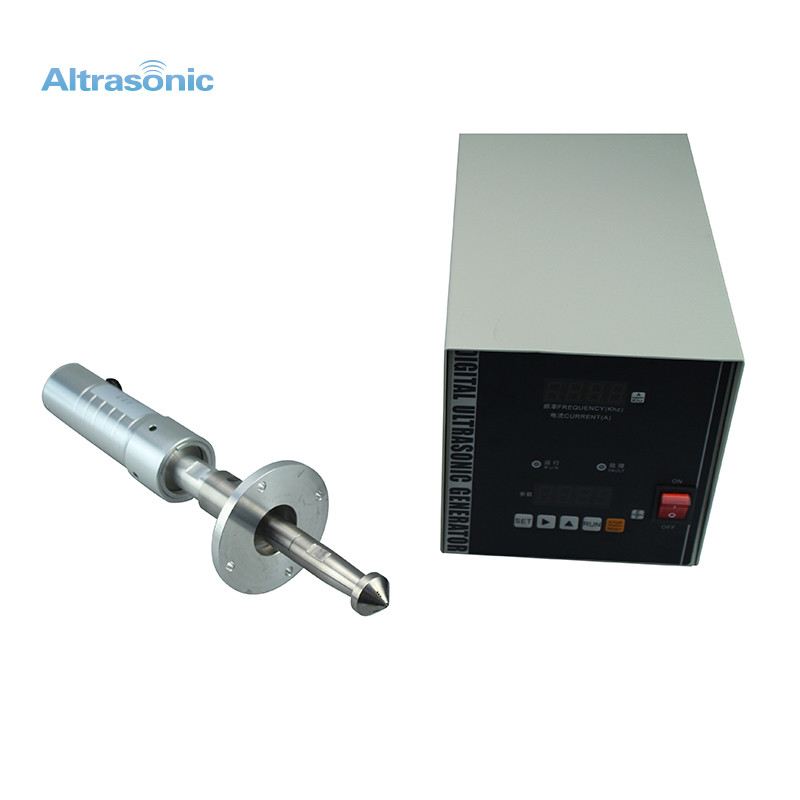

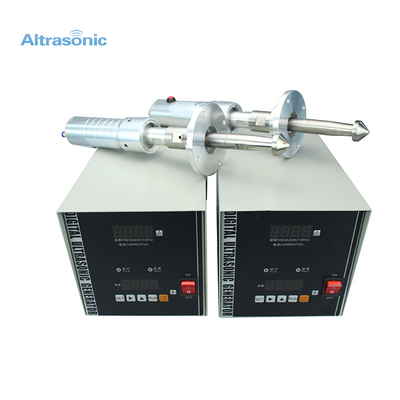

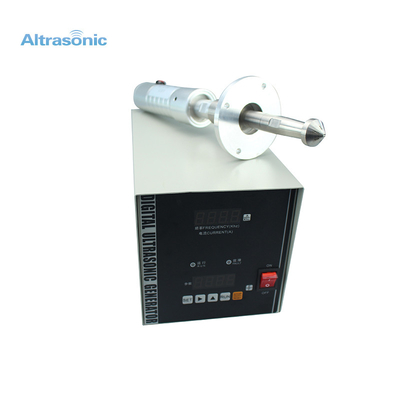

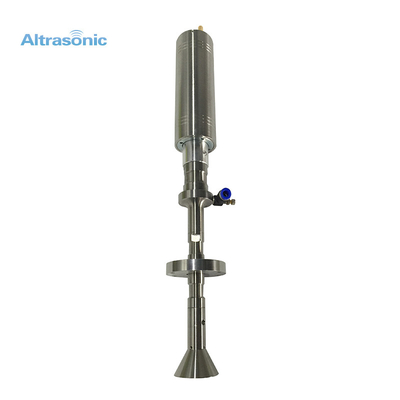

Detailed Images:

Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency 0Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency 1





Ultrasonic Nebulizer For Spraying No Abrasion High Efficiency 2
