Product Details:
|
| Color Of Ceramic: | Yellow | Capacitance: | 20000 |
|---|---|---|---|
| Input Power: | 3300W | Warranty: | 1 Year |
| Certification: | CE | Ceramic Diameter: | 50 |
| Frequency: | 20kHz | Qty Of Ceramic: | 6 |
| Aftersales Service: | On-line | ||
| Highlight: | Branson CJ20 Replacement Ultrasonic Transducer,Welding Ultrasonic Transducer 20khz,Branson CJ20 Ultrasonic Converter |
||

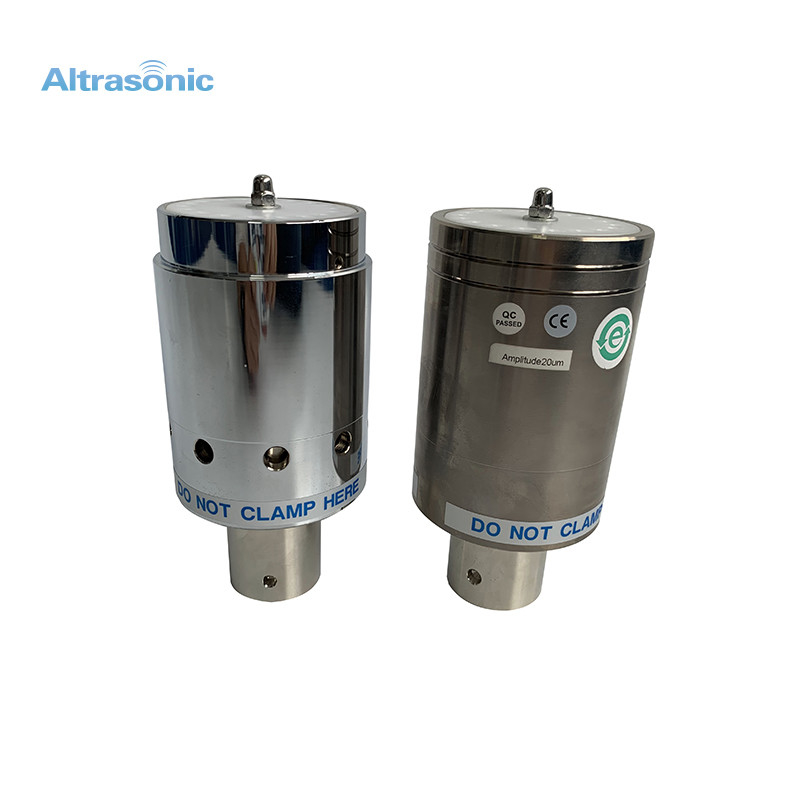

Factory price Branson CJ20 Replacement Ultrasonic trnasducer 20khz For Welding Application
Specifications:
| Model | HSBC-J20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Description:
The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.
Replacement Item Specification:
| Model |
Frequency (khz) |
Ca(PF) | Power(w) | Machine |
| Branson 402 | 19.6-20.0 | 7800-8500 | 450-900 | Branson8400 |
| Branson 502 | 19.6-20.0 | 11500-12500 | 2000 | Branson8800/5170 |
| Branson CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | Branson2000 series |
| CB35A15A | 36.5-7.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40k Metal Welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| Dukane 110-3122 | 19.6-20.0 | 12500-14000 | 2600 | Dukane Heavy Duty |
