Product Details:
|
| Model Number:: | HSBCJ20 | Joint Bolt: | 1/2-20 UNF |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Qty Of Ceramic: | 6 Pcs |
| Frequency: | 20 Khz | Capacitance: | 19-21 Nf |
| Output Power: | 4000 Watt | Max.Amplitude: | 20 Um |
| Resistance: | 10Ω | Material: | Titanium |
| High Light: | piezo ultrasonic transducer,ultrasonic transducers |
||

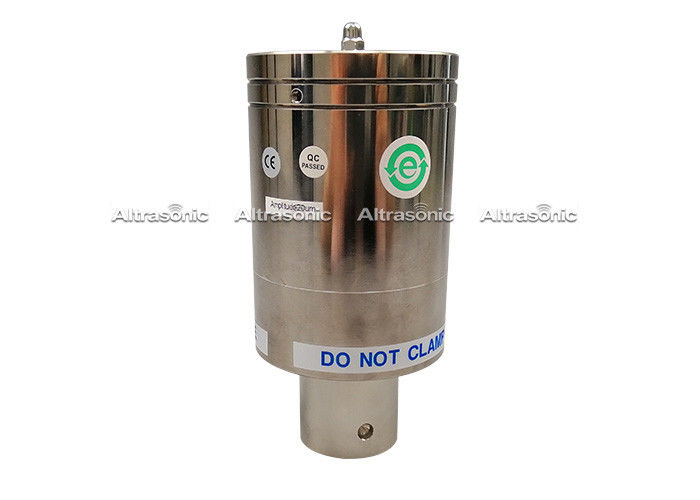

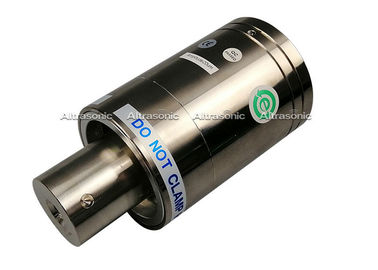

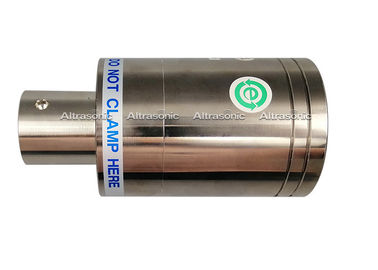

20Khz Ultrasonic Converter With 6pcs Ceramic Repalcement Branson CJ20
Description:
The piezoelectric converter is the electric charge that accumulates in certain solid materials in response to applied mechanical stress. It is key point of the ultrasonic welding/cutting/sealing/jointing/bonding equipment
The converter decide property of the machine. We can supply converter,also converter with house and booster
The 4000 Watt 20 Khz Ultrasonic Converter Direct replacement for the Branson CJ-20 (101-135-059) , that delivers lower cost, rugged quality and superior value.
Specifications:
| Model | HSBCJ20 |
| Frequency | 20 khz |
| Output power | 4000 watt |
| Joint bolt | 1/2-20 unF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Resistance | 10Ω |
| Material | Titanium |
What is Ultrasonic Welding?
Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.
Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.
Warranty:
♦ We offer the same warranty as the OEM, namely, three years one-time replacement.
♦ Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Packing sample:
