Product Details:
|
| Part Name: | Impedance Analyzer | Frequency Range: | 1KHz～500KHz/hz/5Mhz |
|---|---|---|---|
| Frequency Accuracy: | ±10 Ppm | Amplification: | Piezoelectric Ceramic, Ultrasonic Transducer, Power Ultrasonic |
| Net Weight: | 3.5kg | Dimensions: | 240*190*100mm |
| Speed Of Measuring: | 0.5s / One Pass | Phase Accuracy: | 0.15 Degree |
| Impedance Range: | 0.1Ω~1MΩ | Frequency Step: | 0.1Hz To Any |
| Highlight: | 10 Ppm Portable impedance analyzer,Ceramic Transducer Portable impedance analyzer |
||
Deacription:

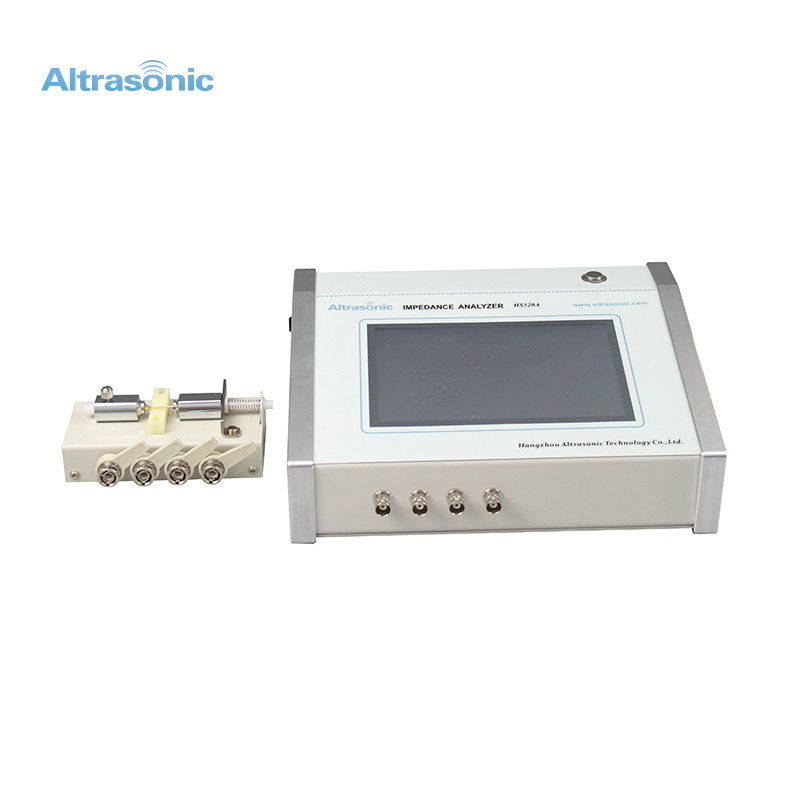

Portable impedance analyzer is mainly used to measure the performance of ultrasonic transducers, ultrasonic horn Rod (unit), piezoelectric ceramics and high-frequency devices. It is one of the most convenient tools for impedance scanning and characteristic analysis of ultrasonic equipment. Wherever you go, you can quickly and conveniently test the parameters and characteristics of the devices and share them remotely.
Specification:
| Product name | Ultrasonic impedance analyzer |
| Frequency range | 1kHz~500kHz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | <0.5% |
| Frequency Accuracy | ±10ppm |
| Impedance Range | 1Ω~1MΩ |
| Size | 24*19*10cm |
| Test environment temperature | 10～40℃ |
| Frequency Step | 0.1Hz～Any |
The parameters that can be measured by impedance analyzer:
Static capacitance
Resonant frequency
Anti resonance frequency
Mechanical Quality Factor
Minimum impedance
Maximum impedance
Impedance phase
Frequency bandwidth
Electromechanical Coupling Coefficient
